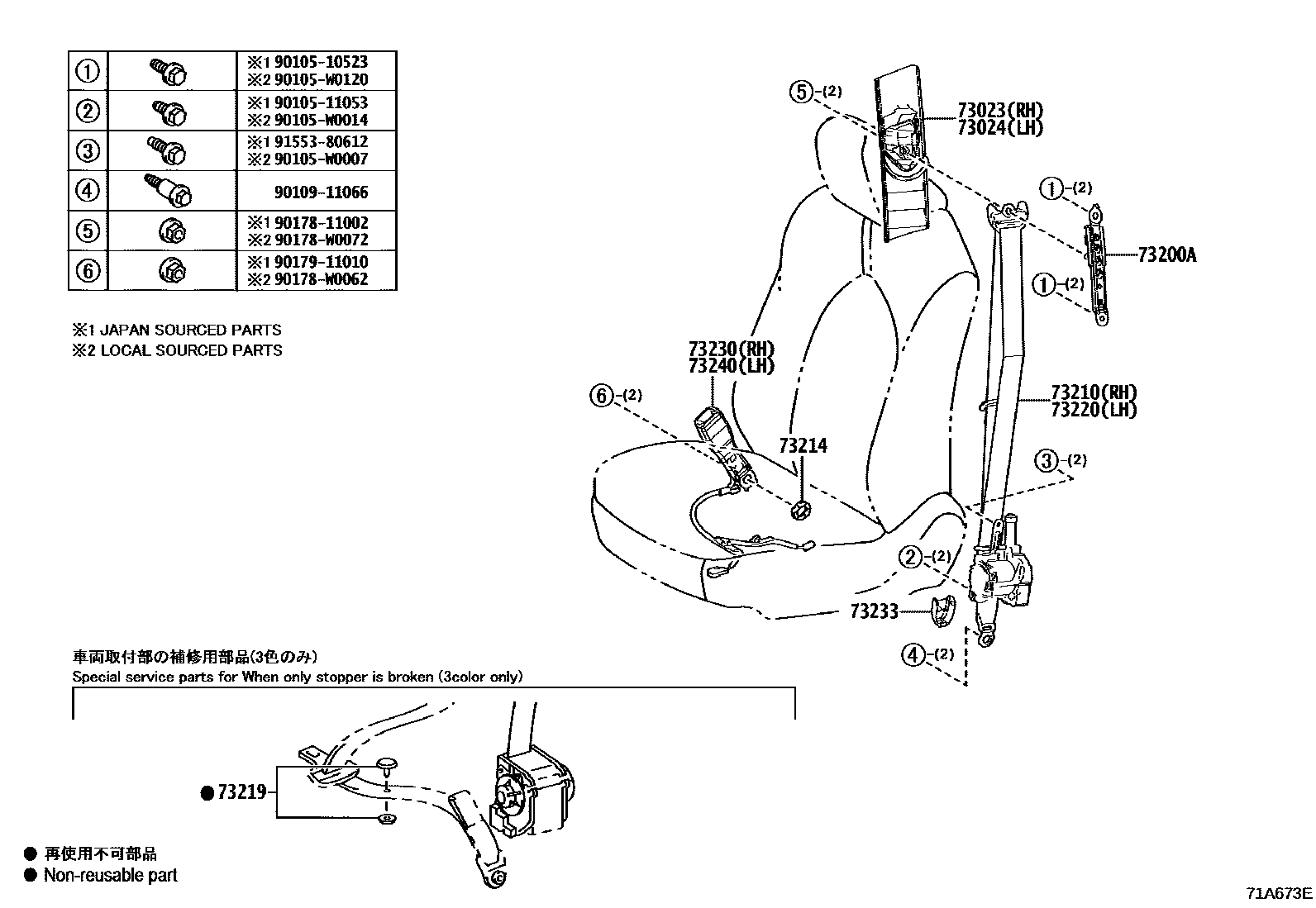

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-B4iAXVH71..LHD..D;AXVH71..RHD..(D,N);AXVA70,AXVH70,GSV70..JPP..(G,N)202102

GRAY,TRIM2#,3#

main73023-58010-B4iASV70,AXVA70,AXVH71,GSV70..(G,N)..EUR201709-202104

GRAY,TRIM1#,2#

main73023-58010-B4iAXVH71..LHD..D;AXVH71..RHD..(D,N);AXVA70,AXVH70,GSV70..JPP..(G,N)201902-202312

GRAY,TRIM2#

main73023-58010-B4iAXVA70,GSV70,MXVA71..RUS202104-202203

GRAY,TRIM2#,41

main73023-58010-B4iASV70..RUS201804-202104

GRAY,TRIM1#,2#,3#

main73023-58010-E1iAXVH71..LHD..D;AXVH71..RHD..(D,N);AXVA70,AXVH70,GSV70..JPP..(G,N)201709-202312

NEUTRAL BEIGE,TRIM4#

main73023-58010-E1iAXVA70,GSV70,MXVA71..RUS202104-202203

NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-B4iASV70..RUS201804-202104

GRAY,TRIM1#,2#,3#

main73024-58010-B4iASV70,AXVA70,AXVH71,GSV70..(G,N)..EUR201709-202104

GRAY,TRIM1#,2#

main73024-58010-B4iAXVH70;AXVA70,AXVH71..D,S201902-202312

GRAY,TRIM2#

main73024-58010-B4iAXVA70,GSV70,MXVA71..RUS202104-202203

GRAY,TRIM2#,41

main73024-58010-B4iAXVH7#..S202102

GRAY,TRIM2#,3#

main73024-58010-E1iASV7#,GSV70..RUS201709-202312

NEUTRAL BEIGE,TRIM4#

main73024-58010-E1iAXVA70,GSV70,MXVA71..RUS202104-202203

NEUTRAL BEIGE,TRIM40

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47281-A4iAXVA70,AXVH7#,GSV70..(D,G,N)..EUR201709-202207

IVORY,TRIM4#

main73210-47281-A4iAXVA70,GSV70,MXVA71..RUS202104-202203

IVORY,TRIM40

main73210-47281-C7iAXVA70,AXVH7#,GSV70..(D,G,N)..EUR202102-202207

BLACK,TRIM2#,3#

main73210-47281-C7iAXVH7#..S201709-202207

BLACK,TRIM2#

main73210-47281-C7iAXVA70,GSV70,MXVA71..RUS202104-202203

BLACK,TRIM2#,41

main73210-47282-A4iAXVH71..LHD..N202208-202312

NEUTRAL BEIGE/IVORY,TRIM4#

main73210-47282-C7iAXVH7#..S202208

BLACK/BLACK,TRIM2#,3#

main73210-47282-C7iAXVH7#..S202208-202312

BLACK/BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAXVA70,GSV70,MXVA71..RUS201709-202312

73219STOPPER, TONGUE PLATE

main73219-33010iASV7#,GSV70..RUS201709-202312

BLACK

main73219-33020iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

GRAY

main73219-33030iASV7#,GSV70..RUS201709-202312

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-A4iASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR201709-202207

IVORY,TRIM4#

main73220-47221-A4iAXVA70,GSV70,MXVA71..RUS202104-202203

IVORY,TRIM40

main73220-47221-C7iAXVA70,AXVH7#,GSV70..(D,G,N)..EUR201709-202207

BLACK,TRIM2#

main73220-47221-C7iAXVA70,GSV70,MXVA71..RUS202104-202203

BLACK,TRIM2#,41

main73220-47221-C7iAXVH7#..S202102-202207

BLACK,TRIM2#,3#

main73220-47222-A4iAXVH71..LHD..D;AXVH71..RHD..(D,N);AXVA70,AXVH70,GSV70..JPP..(G,N)202208-202312

NEUTRAL BEIGE/IVORY,TRIM4#

main73220-47222-C7iAXVH7#..S202208

BLACK/BLACK,TRIM2#,3#

main73220-47222-C7iAXVH71..LHD..N202208-202312

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33710-C0iAXVH70..S201709-202101

BLACK,TRIM2#

main73230-33710-C0iAXVH70..N202102

BLACK,TRIM2#,3#

main73230-33710-C0iAXVH70..N202102

KOREA SPEC,BLACK,TRIM2#

main73230-33710-E0iAXVA70..LHD..EUR202102

KOREA SPEC,NEUTRAL BEIGE,TRIM4#

main73230-33710-E0iAXVH70..N201709-202101

NEUTRAL BEIGE,TRIM4#

main73230-33820-C0iASV70,AXVH71,GSV70..LHD..(G,N)..EUR201709-202104

BLACK,TRIM2#

main73230-33820-E0iGSV70..RUS201709-202104

NEUTRAL BEIGE,TRIM4#

main73230-33870-C0iAXVA70,AXVH71..RHD..(D,N)202102

BLACK,TRIM2#,3#

main73230-33870-C0iASV70,AXVH71..RHD201709-202101

BLACK,TRIM2#

main73230-33870-E0iAXVA70,AXVH71..RHD..(D,N)201709-202101

NEUTRAL BEIGE,TRIM4#

main73230-33890-C0iGSV70..RUS202104-202203

BLACK,TRIM2#,41

main73230-33890-C0iAXVA70,MXVA71..RUS202102-202312

BLACK,TRIM2#

main73230-33890-E0iAXVA70..RUS202104-202203

NEUTRAL BEIGE,TRIM40

main73230-33890-E0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS A3,NEUTRAL BEIGE,TRIM40

main73230-33890-E0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B3,NEUTRAL BEIGE,TRIM40

main73230-33890-E0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B4,NEUTRAL BEIGE,TRIM40

main73230-33890-E0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B4.5,NEUTRAL BEIGE,TRIM40

main73230-33890-E0iAXVH71..LHD..N202102-202312

NEUTRAL BEIGE,TRIM4#

main73230-33A90-C0iAXVH71..LHD..D201902-202101

BLACK,TRIM2#

main73230-33A90-E0iAXVH71..LHD..D202102

NEUTRAL BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAXVH71..D;AXVA70,AXVH70..N201709-202104

BLACK,TRIM1#,2#,4#

main73233-60020-C1iAXVH71..D;AXVA70,AXVH70..N201709-202312

BLACK,TRIM2#,4#

main73233-60020-C1iAXVA70..S201910-202101

BLACK,TRIM2#

main73233-60020-C1iASV70..RUS201804-202104

BLACK,TRIM1#,2#,3#,4#

main73233-60020-C1iAXVH7#..S202102

BLACK,TRIM2#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33780-C0iAXVH70..S202102

BLACK,TRIM2#,3#

main73230-33780-C0iAXVH70..S202102

KOREA SPEC,BLACK,TRIM2#

main73230-33780-C0iAXVA70..LHD..EUR201709-202101

BLACK,TRIM2#

main73230-33780-E0iAXVH70..N201709-202101

NEUTRAL BEIGE,TRIM4#

main73230-33780-E0iAXVH70..N202102

KOREA SPEC,NEUTRAL BEIGE,TRIM4#

main73230-33800-C0iAXVH71..S202102

BLACK,TRIM2#

main73230-33800-C0iAXVH71..RHD..D202102

BLACK,TRIM2#,3#

main73230-33800-E0iAXVH71..RHD..D202102

NEUTRAL BEIGE,TRIM4#

main73230-33820-C0iASV70,AXVH71..RHD..N201709-202101

BLACK,TRIM2#

main73230-33820-E0iASV70,AXVH71..RHD..N201709-202101

NEUTRAL BEIGE,TRIM4#

main73230-33870-C0iASV70..LHD..EUR201709-202101

ARGENTINA SPEC,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

ARGENTINA SPEC&"BLACK EDITION"*(A),BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

LATIN AMERICA SPEC,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

LATIN AMERICA SPEC&"BLACK EDITION"*(A),BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

"BLACK EDITION"*(A),BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202312

BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 3,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 4,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 5,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 3,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 4,BLACK,TRIM2#

main73230-33870-C0iASV70..LHD..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5,BLACK,TRIM2#

main73230-33870-C0iAXVA70..JPP..LHD202102

UKR SALE SPECIFICATIONS 5,BLACK,TRIM2#

main73230-33870-C0iAXVA70..JPP..LHD202102

UKR SALE SPECIFICATIONS 4,BLACK,TRIM2#

main73230-33870-C0iAXVA70..JPP..LHD202102

UKR SALE SPECIFICATIONS 3,BLACK,TRIM2#

main73230-33870-C0iAXVA70..JPP..LHD202102

UPPER GRADE PACKAGE,BLACK,TRIM2#

main73230-33870-C0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B5,BLACK,TRIM2#,41

main73230-33870-C0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B4.5,BLACK,TRIM2#,41

main73230-33870-C0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B4,BLACK,TRIM2#,41

main73230-33870-C0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B3,BLACK,TRIM2#,41

main73230-33870-C0iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS A3,BLACK,TRIM2#,41

main73230-33870-C0iAXVA70..RUS202104-202203

BLACK,TRIM2#,41

main73230-33870-E0iASV70..LHD..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 4,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202312

NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 3,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 4,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

UKRAINE SPEC&UKR SALE SPECIFICATIONS 5,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 3,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

ARGENTINA SPEC,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

ARGENTINA SPEC&"BLACK EDITION"*(A),NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

LATIN AMERICA SPEC,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

LATIN AMERICA SPEC&"BLACK EDITION"*(A),NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(G,N)..EUR201709-202101

"BLACK EDITION"*(A),NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iGSV70..RUS202104-202203

NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..RUS202104-202203

TMR SALE SPECIFICATIONS A3,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..RUS202104-202203

TMR SALE SPECIFICATIONS B3,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..RUS202104-202203

TMR SALE SPECIFICATIONS B4,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..RUS202104-202203

TMR SALE SPECIFICATIONS B4.5,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..RUS202104-202203

TMR SALE SPECIFICATIONS B5,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iAXVH71,GSV70..LHD..(D,G)..EUR202102

UPPER GRADE PACKAGE,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(D,G)..EUR202102

UKR SALE SPECIFICATIONS 3,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(D,G)..EUR202102

UKR SALE SPECIFICATIONS 4,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVH71,GSV70..LHD..(D,G)..EUR202102

UKR SALE SPECIFICATIONS 5,NEUTRAL BEIGE,TRIM4#

main73230-33880-C0iAXVA70..JPP..LHD201709-202203

BLACK,TRIM2#

main73230-33880-E0iASV70..LHD..EUR201709-202101

NEUTRAL BEIGE,TRIM4#

main73230-33890-C0iAXVA70,AXVH71..RHD..N202102

BLACK,TRIM2#

main73230-33890-E0iAXVA70,AXVH71..RHD..N202102

NEUTRAL BEIGE,TRIM4#

main73230-33A90-C0iAXVH71..RHD..D201902-202101

BLACK,TRIM2#

9010510523

main90105-10523

9010511053

main90105-11053

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

9010911066

main90109-11066

9017811002

main90178-11002

90178W0062

main90178-W0062

90178W0072

main90178-W0072

9017911010

main90179-11010

9155380612

main91553-80612

21 parts on this diagram · 2 diagrams in section
