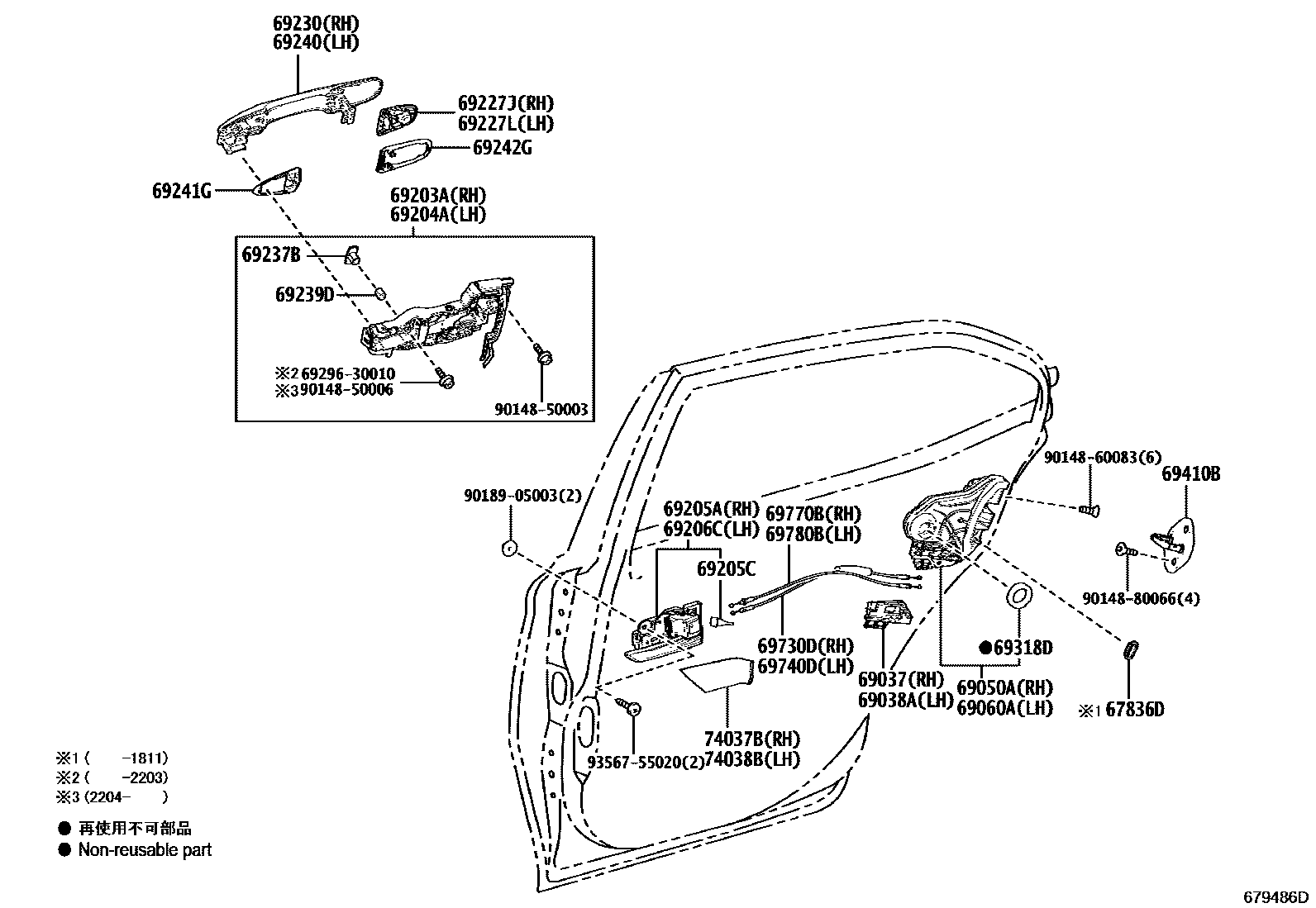

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-33030iASV7#,AXVA70,AXVH71,GSV70201709-201811

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-30010iAXVA70,GSV70,MXVA71..RUS201709-202312

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-30010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-48060iASV7#,GSV70..RUS201709-202312

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-48060iASV7#,GSV70..RUS201709-202312

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-33070iAXVH71..LHD..N201709-202312

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-33070iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02370-C0iAXVA70,GSV70,MXVA71..RUS202202-202203

BLACK,(L)

main69205-33140-C0iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

BLACK

main69205-33140-C0iAXVA70,GSV70,MXVA71..RUS202202-202203

BLACK,(J)

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02370-C0iAXVA70,GSV70,MXVA71..RUS202202-202203

BLACK,(L)

main69206-33150-C0iAXVA70,GSV70,MXVA71..RUS201709-202312

BLACK

main69206-33150-C0iAXVA70,GSV70,MXVA71..RUS202202-202203

BLACK,(J)

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-47020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-47020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,UKRAINE SPEC&UKR SALE SPECIFICATIONS 5

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,"BLACK EDITION"*(A)

main69211-33080iASV70..LHD..EUR201709-202312

PLATED

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,UKRAINE SPEC&UKR SALE SPECIFICATIONS 4

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 4

main69211-33110iASV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 5

main69211-33110iGSV70..RUS201804-201904

PLATED

main69211-33110iGSV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 4

main69211-33110iGSV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 4.5

main69211-33111iGSV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 5

main69211-33111iASV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 4

main69211-33111iASV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 4.5

main69211-33111iGSV70..RUS201905-202104

PLATED

main69211-47021-A0iAXVH71..D201804-202203

SUPER WHITE 2,040

main69211-47021-A2iASV71201709-202203

PLATINUM WHITE PEARL MC.,089

main69211-47021-A2iAXVA70..S201804-202203

PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-47021-B0iASV7#..RUS201709-202203

SILVER ME.,1F7

main69211-47021-C0iAXVA70,GSV70,MXVA71..RUS201709-202203

ATTITUDE BLACK MC.,218

main69211-47021-C1iASV7#..RUS201804-202104

BLACKISH AGEHA GF.,221

main69211-47021-D0iASV70..LHD..EUR201709-201808

EMOTIONAL RED,3T7

main69211-47021-D2iMXVA71202104-202203

RED M.M.,3R3

main69211-47021-D2iAXVA70,GSV70..RUS202104-202203

RED M.M.,2QL ,3R3

main69211-47021-D6iAXVH71..D,S;AXVA70..LHD..EUR202102-202208

EMOTIONAL RED 2,2SC ,3U5

main69211-47021-D6iAXVH70..S201808-202208

EMOTIONAL RED 2,3U5

main69211-47021-D6iAXVA70..S201910-202101

EMOTIONAL RED 2,2SC

main69211-47021-D9iAXVH7#..D,S;AXVA70..JPP..LHD202208

EMOTIONAL RED 3,3U9

main69211-47021-E0iAXVH71..D;ASV70..LHD..EUR201709-202101

STEEL BLONDE,4X1

main69211-47021-E1iASV7#..RUS201709-202203

GRAPHITE ME.,4X7

main69211-47021-J0iAXVH7#..D,S;AXVA70..JPP..LHD201709-202203

DK.BLUE M.M.,8W7

main69211-47021-P2iAXVH7#..D,S;AXVA70..JPP..LHD202102

PRECIOUS METAL,1L5

69237BNUT, REAR DOOR HANDLE

main69237-62010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-47010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,UKRAINE SPEC&UKR SALE SPECIFICATIONS 5

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 4

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,"BLACK EDITION"*(A)

main69211-33080iASV70..LHD..EUR201709-202312

PLATED

main69211-33080iASV70..LHD..EUR201709-202101

PLATED,UKRAINE SPEC&UKR SALE SPECIFICATIONS 4

main69211-33110iASV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 4.5

main69211-33110iGSV70..RUS201804-201904

PLATED

main69211-33110iGSV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 4

main69211-33110iGSV70..RUS201804-201904

PLATED,TMR SALE SPECIFICATIONS 5

main69211-33111iGSV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 5

main69211-33111iASV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 4

main69211-33111iASV70..RUS201905-202104

PLATED,TMR SALE SPECIFICATIONS 4.5

main69211-33111iASV70..RUS201905-202104

PLATED

main69211-47021-A0iAXVH71..D201804-202203

SUPER WHITE 2,040

main69211-47021-A2iAXVH70..S201804-202203

PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-47021-A2iAXVH71..D;ASV70..LHD..EUR201709-202203

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iASV7#..RUS201709-202203

SILVER ME.,1F7

main69211-47021-C0iASV7#..RUS201709-202203

ATTITUDE BLACK MC.,218

main69211-47021-C1iASV7#..RUS201804-202104

BLACKISH AGEHA GF.,221

main69211-47021-D0iASV70..LHD..EUR201709-201808

EMOTIONAL RED,3T7

main69211-47021-D2iAXVA70,GSV70..RUS202104-202203

RED M.M.,2QL ,3R3

main69211-47021-D2iMXVA71202104-202203

RED M.M.,3R3

main69211-47021-D6iAXVH71..D;ASV70..LHD..EUR201808-202208

EMOTIONAL RED 2,3U5

main69211-47021-D6iAXVH70..S202102-202208

EMOTIONAL RED 2,2SC ,3U5

main69211-47021-D6iAXVA70..S201910-202101

EMOTIONAL RED 2,2SC

main69211-47021-D9iAXVH7#..D,S;AXVA70..JPP..LHD202208

EMOTIONAL RED 3,3U9

main69211-47021-E0iAXVH71..D;ASV70..LHD..EUR201709-202101

STEEL BLONDE,4X1

main69211-47021-E1iAXVA70,GSV70,MXVA71..RUS201709-202203

GRAPHITE ME.,4X7

main69211-47021-J0iAXVH71..D;ASV70..LHD..EUR201709-202203

DK.BLUE M.M.,8W7

main69211-47021-P2iAXVH7#..D,S;AXVA70..JPP..LHD202102

PRECIOUS METAL,1L5

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-47020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-47030iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-33120iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-33120iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-33080iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-33080iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74037-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74038-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014850006

main90148-50006

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

33 parts on this diagram · 1 diagram in section
