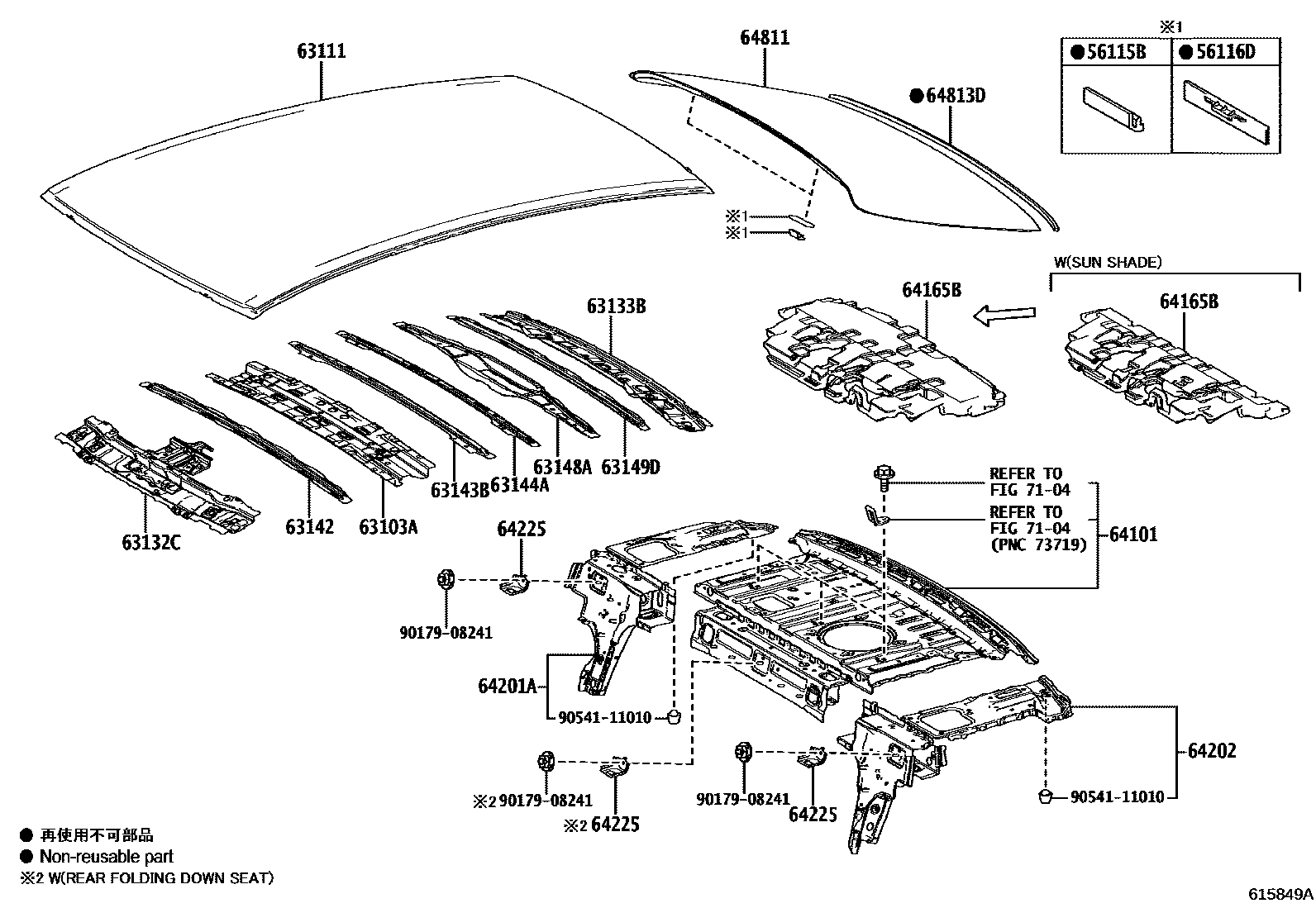

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63111PANEL, ROOF
63132CPANEL, WINDSHIELD HEADER, INNER
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149DREINFORCEMENT, ROOF PANEL, NO.8
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
TMR SALE SPECIFICATIONS 5
SUN SHADE-WITH(BACK WINDOW); UKRAINE SPEC&UKR SALE SPECIFICATIONS 5&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
KOREA SPEC
TMR SALE SPECIFICATIONS B4&AUDIO-9INCH & *DA & 9SPEAKAR & JBL; TMR SALE SPECIFICATIONS B4.5&AUDIO-9INCH & *DA & 9SPEAKAR & JBL
TMR SALE SPECIFICATIONS B5&AUDIO-9INCH & *DA & 9SPEAKAR & JBL; TMR SALE SPECIFICATIONS C6
AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5; EU SALE SPECIFICATIONS 6; UKR SALE SPECIFICATIONS 5
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64225HANGER, REAR SEAT CUSHION SUPPORT
64811GLASS, BACK WINDOW
EU SALE SPECIFICATIONS 2
64813DDAM, BACK WINDOW GLASS ADHESIVE
7104SEAT BELT & CHILD RESTRAINT SEAT
9017908241
main90179-08241
9054111010
main90541-11010
21 parts on this diagram · 5 diagrams in section
