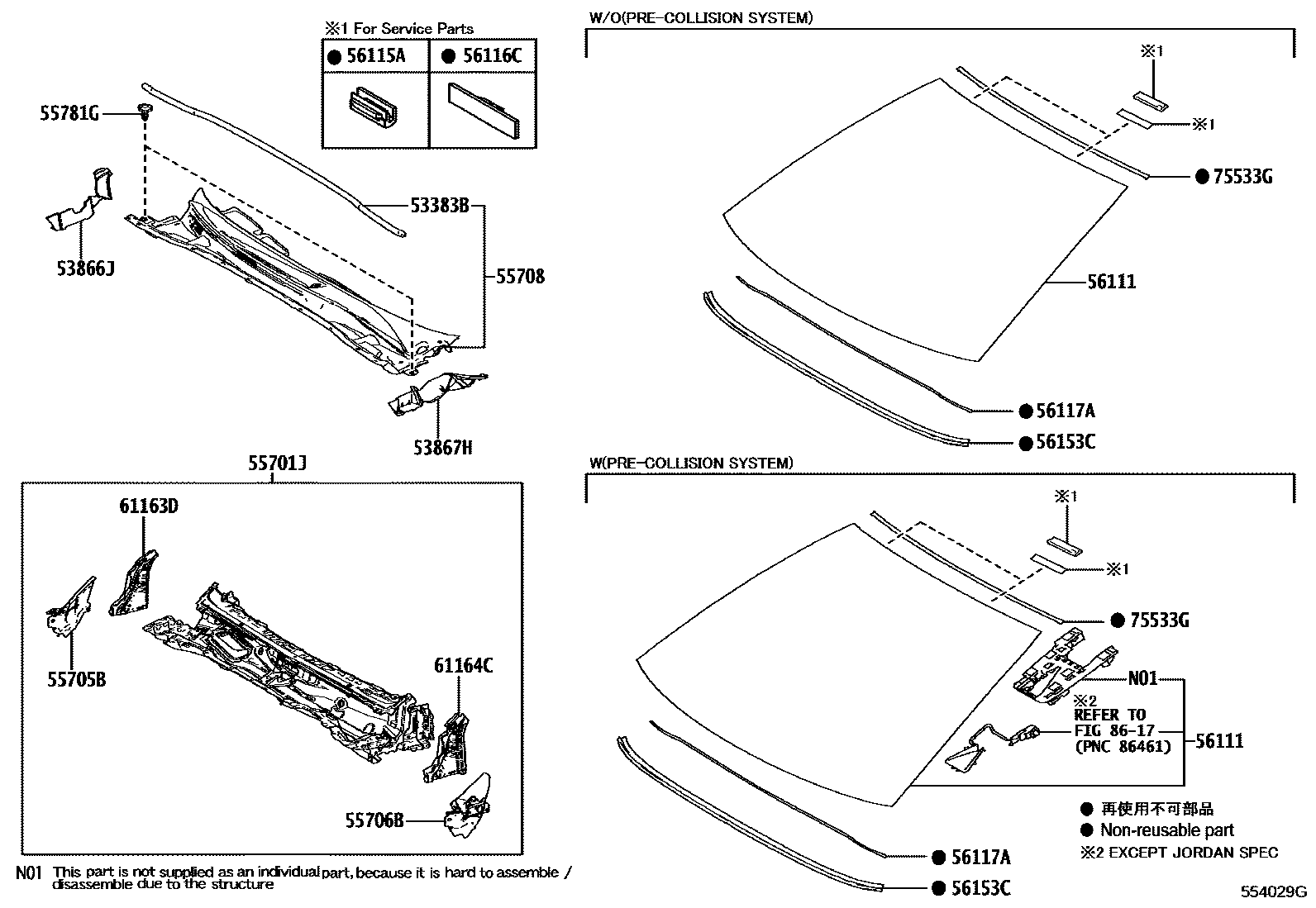

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC; KOREA SPEC
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
TMR 6AR SALE SPECIFICATIONS A2; TMR 6AR SALE SPECIFICATIONS A3
ARMENIA SPEC&TMR SALE SPECIFICATIONS 4; KYRGYZSTAN SPEC&TMR SALE SPECIFICATIONS 4; KYRGYZSTAN SPEC&TMR SALE SPECIFICATIONS 4.5; KYRGYZSTAN SPEC&TMR SALE SPECIFICATIONS 5
TMR SALE SPECIFICATIONS 4; TMR SALE SPECIFICATIONS 4.5; TMR SALE SPECIFICATIONS 5
TMR SALE SPECIFICATIONS 6
KYRGYZSTAN SPEC&TMR SALE SPECIFICATIONS C6
TMR SALE SPECIFICATIONS C6
TMR SALE SPECIFICATIONS B4.5; TMR SALE SPECIFICATIONS B5
JORDAN SPEC&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER
UKRAINE SPEC&UKR SALE SPECIFICATIONS 4; UKRAINE SPEC&UKR SALE SPECIFICATIONS 5
ARGENTINA SPEC; BRAZIL SPEC
EU SALE SPECIFICATIONS 6&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
UKRAINE SPEC&EU SALE SPECIFICATIONS 6&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 4; AZERBAIJAN,ARMENIA,GEORGIA SPEC&UKR SALE SPECIFICATIONS 5; UKRAINE SPEC&UKR SALE SPECIFICATIONS 4; UKRAINE SPEC&UKR SALE SPECIFICATIONS 5
EU SALE SPECIFICATIONS 6
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6; UKR SALE SPECIFICATIONS 5&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; UKRAINE SPEC&EU SALE SPECIFICATIONS 6
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO-AUDIO LESS
ARGENTINA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
HONGKONG SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
EU SALE SPECIFICATIONS 6
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6; UKRAINE SPEC&EU SALE SPECIFICATIONS 6
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO-AUDIO LESS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
main56117-64010iAXVA70,AXVH71..RHD..N; AXVH71..LHD..D; AXVH71..RHD..N; AXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP202102
*D,L=1298 OR 725; *D,L=1298 OR 725,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 2; *D,L=1298 OR 725,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4; *D,L=1298 OR 725,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6; *D,L=1298 OR 725,EU SALE SPECIFICATIONS 6; *D,L=1298 OR 725,HONGKONG SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; *D,L=1298 OR 725,SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO-AUDIO LESS; *D,L=1298 OR 725,UKRAINE SPEC&EU SALE SPECIFICATIONS 2; *D,L=1298 OR 725,UKRAINE SPEC&EU SALE SPECIFICATIONS 4; *D,L=1298 OR 725,UKRAINE SPEC&EU SALE SPECIFICATIONS 6
56153CMOULDING, FRONT WINDOW, INNER CENTER
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
17 parts on this diagram · 3 diagrams in section
