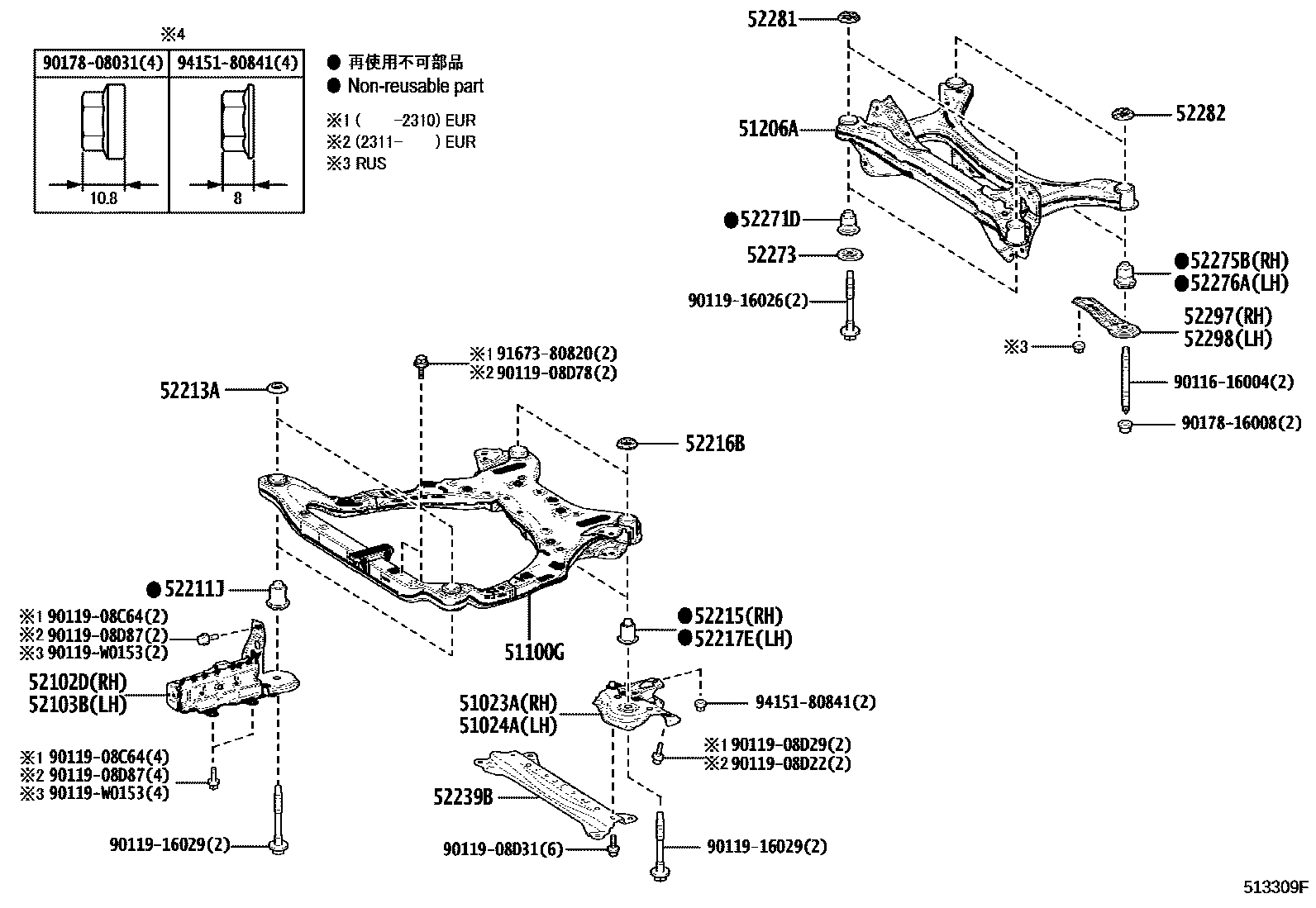

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER(W/FR FLOOR UNDER 0005 1UNDER COVER 0006 1UNDER COVER(KOREA SPEC) 0007 1UNDER COVER 0008 1UNDER COVER(W/FR FLOOR UNDER 0009 1UNDER COVER(W/FR FLOOR UNDER 0010 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33070iAXVH71..LHD..N202102-202312

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33080iAXVA70,GSV70,MXVA71..RUS202102-202203

51100GFRAME ASSY, FRONT

main51100-33130iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP202201

main51100-33170iAXVA70,AXVH7#,GSV70,MXVA71202102-202112

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33120iASV7#,GSV70..RUS201709-202104

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-33010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-33010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100×2iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33100×2iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iASV7#,GSV70..RUS201709-202104

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33090×2iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52239BPLATE, BODY MOUNTING

main52239-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33070×2iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202101

main52271-33080×2iAXVH71..D201902-202101

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030×2iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-33080iAXVA70,GSV70,MXVA71..RUS202102-202203

main52275-33090iAXVH71..D201902-202101

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-33010iAXVH71..LHD..D; AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC; UKRAINE SPEC

main52276-33020iAXVH71..D201902-202101

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020×2iAXVH71..LHD..N202102-202312

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52281-33020×2iAXVH71..D202102

main52282-33060×2iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202101

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-33020iASV7#,GSV70..RUS201709-202104

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

9011616004

main90116-16004

9011908C64

main90119-08C64

9011908D22

main90119-08D22

9011908D29

main90119-08D29

9011908D31

main90119-08D31

9011908D78

main90119-08D78

9011908D87

main90119-08D87

9011916026

main90119-16026

9011916029

main90119-16029

90119W0153

main90119-W0153

9017808031

main90178-08031

9017816008

main90178-16008

9167380820

main91673-80820

9415180841

main94151-80841

34 parts on this diagram · 10 diagrams in section
