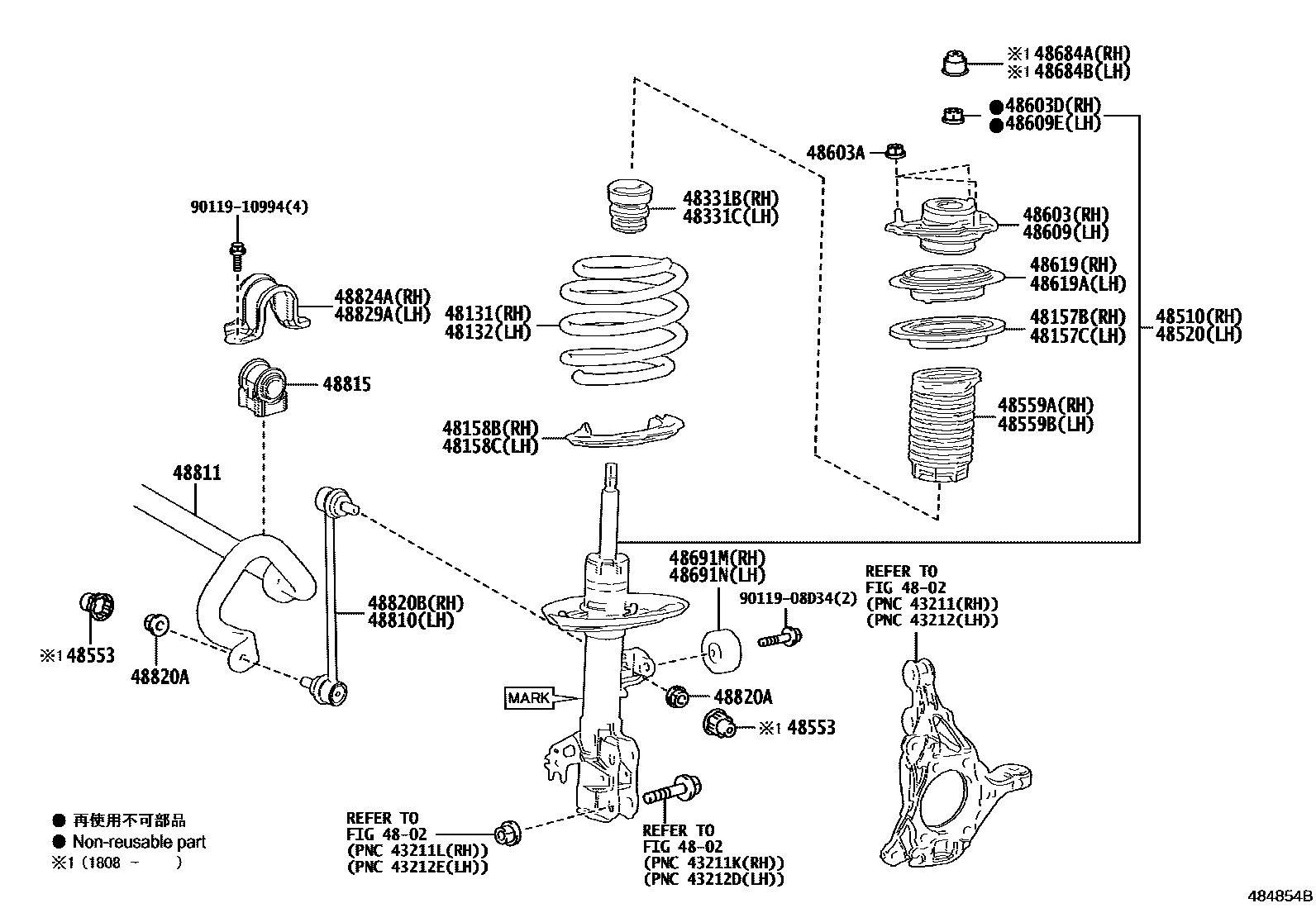

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-06E60iASV7#..RUS201804-202007

main48131-06E61iASV7#..RUS202008-202203

main48131-06E90iGSV70..RUS201804-202007

main48131-06E91iGSV70..RUS202008-202203

main48131-33C30iAXVA70201709-202101

main48131-33C40iAXVA70,AXVH70..EUR201709-202207

main48131-33C41iAXVA70,AXVH70..JPP202208

main48131-33C70iAXVH71..LHD..D202102-202207

UKRAINE SPEC

main48131-33C70iAXVH71,GSV70..(G,N)..EUR201709-202101

main48131-33C70iAXVH71,GSV70..(G,N,S)..EUR202102-202207

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48131-33C71iAXVH71..LHD..D202208

UKRAINE SPEC

main48131-33C71iAXVH71..LHD..D202208

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48131-33C71iAXVH71..LHD..N202208-202312

main48131-33C80iAXVH71..D201902-202207

main48131-33C81iAXVH71..D202208

48132SPRING, FRONT COIL, LH

main48131-06E60iASV7#..RUS201804-202007

main48131-06E61iAXVA70,MXVA71..RUS202008-202203

main48131-06E90iGSV70..RUS201804-202007

main48131-06E91iGSV70..RUS202008-202203

main48131-33C30iAXVA70201709-202101

main48131-33C40iASV70,AXVH70..EUR201709-202207

main48131-33C41iAXVA70,AXVH70..JPP202208

main48131-33C70iAXVH71..LHD..D202102-202207

UKRAINE SPEC

main48131-33C70iAXVH71,GSV70..(G,N)..EUR201709-202101

main48131-33C70iAXVH71,GSV70..(G,N,S)..EUR202102-202207

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48131-33C71iAXVH71..LHD..D202208

UKRAINE SPEC

main48131-33C71iAXVH71..LHD..D202208

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48131-33C71iAXVH71..LHD..N202208-202312

main48131-33C80iAXVH71..D201902-202207

main48131-33C81iAXVH71..D202208

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAXVH71..LHD..N201709-202312

48331BBUMPER, FRONT SPRING, RH

main48331-06100iASV7#,GSV70..RUS201804-202203

main48331-33080iASV70,AXVA70,AXVH71,GSV70..EUR201709-201911

sub48331-33100

main48331-33100iASV70,AXVA70,AXVH7#,GSV70..EUR201912-202210

main48331-33101iAXVH71..LHD..N202211-202312

48331CBUMPER, FRONT SPRING, LH

main48331-06100iAXVA70,GSV70,MXVA71..RUS201804-202203

main48331-33080iASV70,AXVA70,AXVH71,GSV70..EUR201709-201911

sub48331-33100

main48331-33100iAXVA70,AXVH7#,GSV70..EUR201912-202210

main48331-33101iAXVH71..LHD..N202211-202312

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80861iAXVA70201709-202101

MARK 48510-33720

main48510-80863iAXVH71..LHD..D202102-202212

MARK 48510-33740,UKRAINE SPEC

main48510-80863iAXVA70,AXVH7#..JPP..(N,S)202102-202212

MARK 48510-33740,AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48510-80863iAXVH71..LHD..D201709-202212

MARK 48510-33740

main48510-80865iGSV70..EUR201709-202212

MARK 48510-33760

main48510-80A66iAXVH71..D201902-202212

MARK 48510-33890

main48510-80C11iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202212-202312

MARK 48510-33C60

main48510-80C11iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202212

MARK 48510-33C60,UKRAINE SPEC

main48510-80C11iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202212

MARK 48510-33C60,AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48510-80C13iGSV70..EUR202212

MARK 48510-33761

main48510-80C16iAXVH71..D202212

MARK 48510-33891

main48510-8Z334iASV7#..RUS201804-201909

MARK 48510-06C30

sub48510-8Z460

main48510-8Z335iGSV70..RUS201804-201909

MARK 48510-06C40

sub48510-8Z461

main48510-8Z460iASV7#..RUS201909-202203

MARK 48510-06C31

sub48510-80863

main48510-8Z461iGSV70..RUS201909-202203

MARK 48510-06C41

sub48510-80865

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80534iAXVA70201709-202101

MARK 48520-33720

main48520-80536iAXVH71..LHD..D202102-202212

MARK 48520-33740,UKRAINE SPEC

main48520-80536iAXVA70,AXVH7#..JPP..(N,S)201709-202212

MARK 48520-33740

main48520-80536iAXVA70,AXVH7#..JPP..(N,S)202102-202212

MARK 48520-33740,AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48520-80538iGSV70..EUR201709-202212

MARK 48520-33760

main48520-80626iAXVH71..D201902-202212

MARK 48520-33890

main48520-80761iAXVH71..LHD..D202212-202312

MARK 48520-33C60

main48520-80761iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202212

MARK 48520-33C60,UKRAINE SPEC

main48520-80761iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202212

MARK 48520-33C60,AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48520-80763iGSV70..EUR202212

MARK 48520-33761

main48520-80766iAXVH71..D202212

MARK 48520-33891

main48520-8Z192iASV7#..RUS201804-201909

MARK 48520-06C30

sub48520-8Z307

main48520-8Z193iGSV70..RUS201804-201909

MARK 48520-06C40

sub48520-8Z308

main48520-8Z307iAXVA70,MXVA71..RUS201909-202203

MARK 48520-06C31

sub48520-80536

main48520-8Z308iGSV70..RUS201909-202203

MARK 48520-06C41

sub48520-80538

48553CAP, SHOCK ABSORBER, UPPER

main48553-52030iASV7#,GSV70..RUS201808-202312

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-33020iASV7#,GSV70..RUS201709-202312

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-33260iASV7#,GSV70..RUS201709-202312

main48609-33260iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48609-33260iAXVH71..LHD..D202102

UKRAINE SPEC

main48609-33270iAXVH71..D201902-202101

main48609-33280iASV7#,GSV70..RUS201910-202203

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iASV7#,GSV70..RUS201709-202312

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-33260iAXVH71..LHD..D202102

UKRAINE SPEC

main48609-33260iASV7#,GSV70..RUS201709-202312

main48609-33260iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main48609-33270iAXVH71..D201902-202101

main48609-33280iAXVA70,GSV70,MXVA71..RUS201910-202203

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48619BEARING, STRUT MOUNTING, RH

main48619-06010iAXVA70,GSV70,MXVA71..RUS201804-202203

main48619-33010iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

48619ABEARING, STRUT MOUNTING, LH

main48619-06010iAXVA70,GSV70,MXVA71..RUS201804-202203

main48619-33010iAXVH71..LHD..N201709-202312

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAXVA70,GSV70,MXVA71..RUS201808-202312

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iASV7#,GSV70..RUS201808-202312

48691MDAMPER, FRONT SUSPENSION, RH

main48691-06060iASV7#,GSV70..RUS201804-202203

main48691-33030iASV70,AXVA70,AXVH71,GSV70..EUR201709-201808

48691NDAMPER, FRONT SUSPENSION, LH

main48691-06060iASV7#,GSV70..RUS201804-202203

main48691-33030iASV70,AXVA70,AXVH71,GSV70..EUR201709-201808

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33090iAXVH71..LHD..N201709-202312

48811BAR, STABILIZER, FRONT

main48811-06280iASV7#,GSV70..RUS201804-202203

main48811-33200iAXVA70,GSV70..EUR201709-202101

main48811-33210iAXVH7#201709-202101

main48811-33220iAXVH71..LHD..D;AXVA70,GSV70..LHD..EUR202102

NEPAL SPEC

main48811-33220iAXVH71..LHD..N202102-202312

main48811-33220iAXVA70..JPP..RUS202102

UKRAINE SPEC

main48811-33220iAXVA70..JPP..RUS202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33150iASV70,AXVA70,GSV70..EUR201709-202312

main48815-33160iAXVH7#201709-202101

main48815-33170iASV7#,GSV70..RUS201804-202203

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33090iAXVH71..LHD..N201709-202312

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-33010iAXVA70201709-201809

main48824-06040iGSV70,MXVA71..RUS201804-202203

main48824-33040iAXVH71..RHD;AXVH71..LHD..D;AXVH70,GSV70..EUR201709-202312

main48824-33050iAXVA70..JPP201809-202203

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06040iASV7#,GSV70..RUS201804-202203

main48824-33040iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

9011908D34

main90119-08D34

9011910994

main90119-10994

34 parts on this diagram · 1 diagram in section
