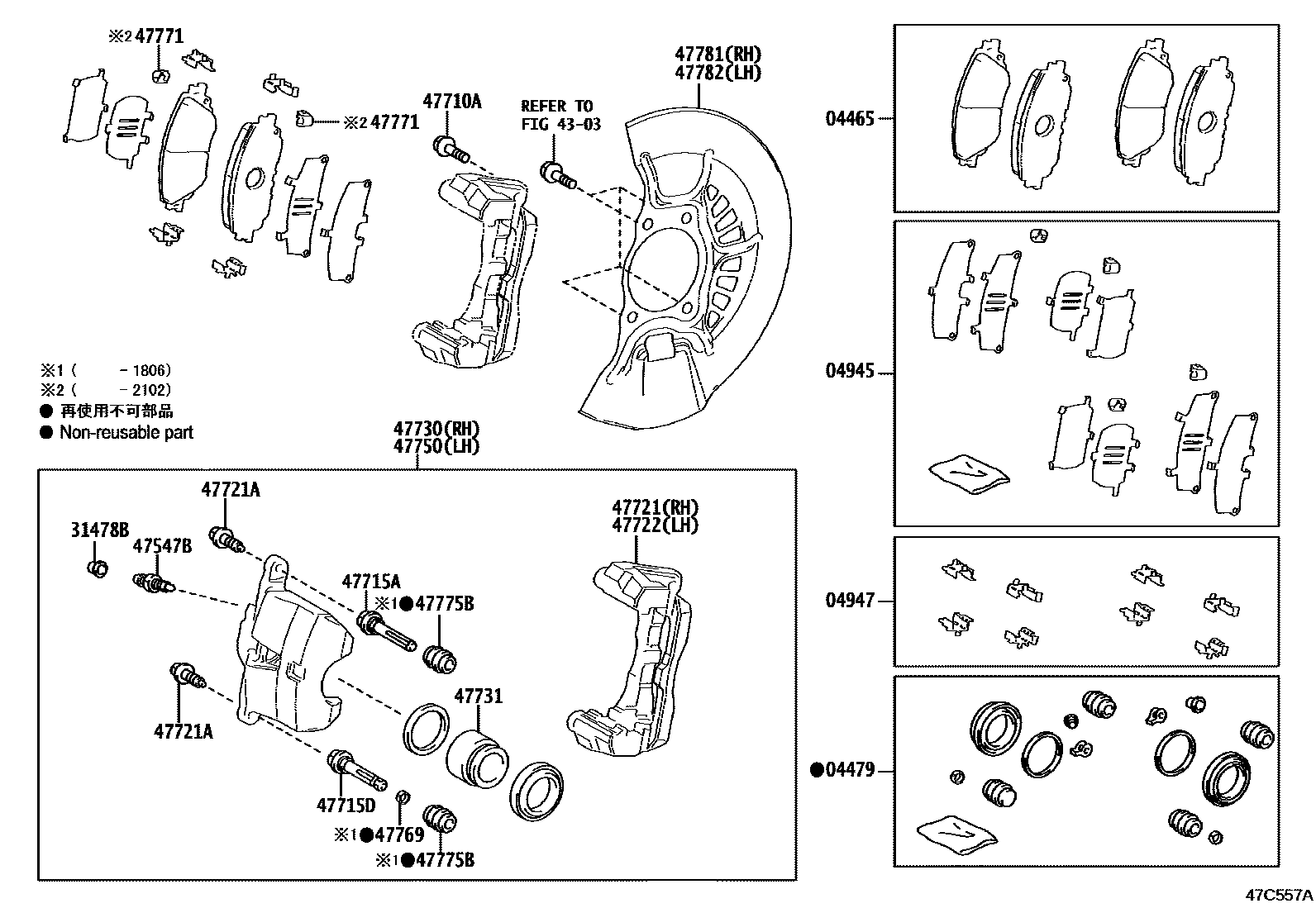

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1MARK NBK D6994H 0003 1MARK AK NS380H

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

MARK NBK D6994H

main04465-33480iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

MARK NBK D6994H,UKRAINE SPEC

main04465-33480iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

MARK NBK D6994H,AZERBAIJAN,ARMENIA,GEORGIA SPEC

main04465-33490iAXVH71..D201902-202101

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main04478-33160iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main04478-33160iAXVH71..LHD..D202102

UKRAINE SPEC

main04478-48200iAXVH71..D201902-202101

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXVH71..LHD..D202102-202205

UKRAINE SPEC

main04945-33300iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202203

main04945-33300iAXVA70,AXVH7#,GSV70..(G,N,S)..EUR202102-202205

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main04945-33310iAXVH71..D201902-202101

main04945-42100iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202206

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main04945-42100iAXVH71..LHD..D202206

UKRAINE SPEC

main04945-42100iAXVH71..LHD..N202206-202312

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33280iASV7#,AXVA70,AXVH71,GSV70201709-201806

main04947-33281iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main04947-33281iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201806-202312

main04947-33281iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main04947-48080iAXVH71..D201902-202101

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXVA70,GSV70,MXVA71..RUS201709-202312

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAXVH71..D201902-202101

main47547-20010iAXVH71..LHD..D202102

UKRAINE SPEC

main47547-20010iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47547-20010iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iASV7#,GSV70..RUS201709-202312

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAXVH71..D201902-202101

main47715-52190iAXVA70,GSV70,MXVA71..RUS201709-202312

main47715-52190iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main47715-52190iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47715-12A10iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main47715-12A10iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main47715-48150iAXVH71..D201902-202101

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33381iASV7#,AXVA70,AXVH71,GSV70201709-201806

sub47721-33382

sub04947-33281

main47721-33382iAXVA70,GSV70,MXVA71..RUS201806-202312

main47721-33382iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47721-33382iAXVH71..LHD..D202102

UKRAINE SPEC

main47721-48150iAXVH71..D201902-202101

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAXVH71..LHD..D202102

*8-1.00PX23-15,UKRAINE SPEC

main90105-08164iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

*8-1.00PX23-15

main90105-08164iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

*8-1.00PX23-15,AZERBAIJAN,ARMENIA,GEORGIA SPEC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXVH71..LHD..D202102

UKRAINE SPEC

main47722-33312iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201806-202312

main47722-33312iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47722-33381iASV7#,AXVA70,AXVH71,GSV70201709-201806

sub47722-33312

sub04947-33281

main47722-48140iAXVH71..D201902-202101

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33380iASV7#,AXVA70,AXVH71,GSV70201709-201806

sub47730-33381

sub04947-33281

main47730-33381iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47730-33381iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201806-202312

main47730-33381iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main47730-48150iAXVH71..D201902-202101

47731PISTON, FRONT DISC BRAKE

main47731-12A10iASV7#,GSV70..RUS201709-202312

main47731-12A10iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main47731-12A10iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47731-48150iAXVH71..D201902-202101

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iASV7#,GSV70..RUS201806-202312

main47750-33311iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main47750-33311iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47750-33380iASV7#,AXVA70,AXVH71,GSV70201709-201806

sub47750-33311

sub04947-33281

main47750-48110iAXVH71..D201902-202101

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iAXVH71..D201902-202101

main47769-50010iASV7#,AXVA70,AXVH71,GSV70201709-201806

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202104

main47771-48150iAXVH71..D201902-202101

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iAXVH71..D201902-202101

47775BBOOT, BUSH DUST, NO.1

main47775-52190iASV7#,AXVA70,AXVH71,GSV70201709-201806

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXVA70,GSV70,MXVA71..RUS201709-202312

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXVA70,GSV70,MXVA71..RUS201709-202312

22 parts on this diagram · 2 diagrams in section
