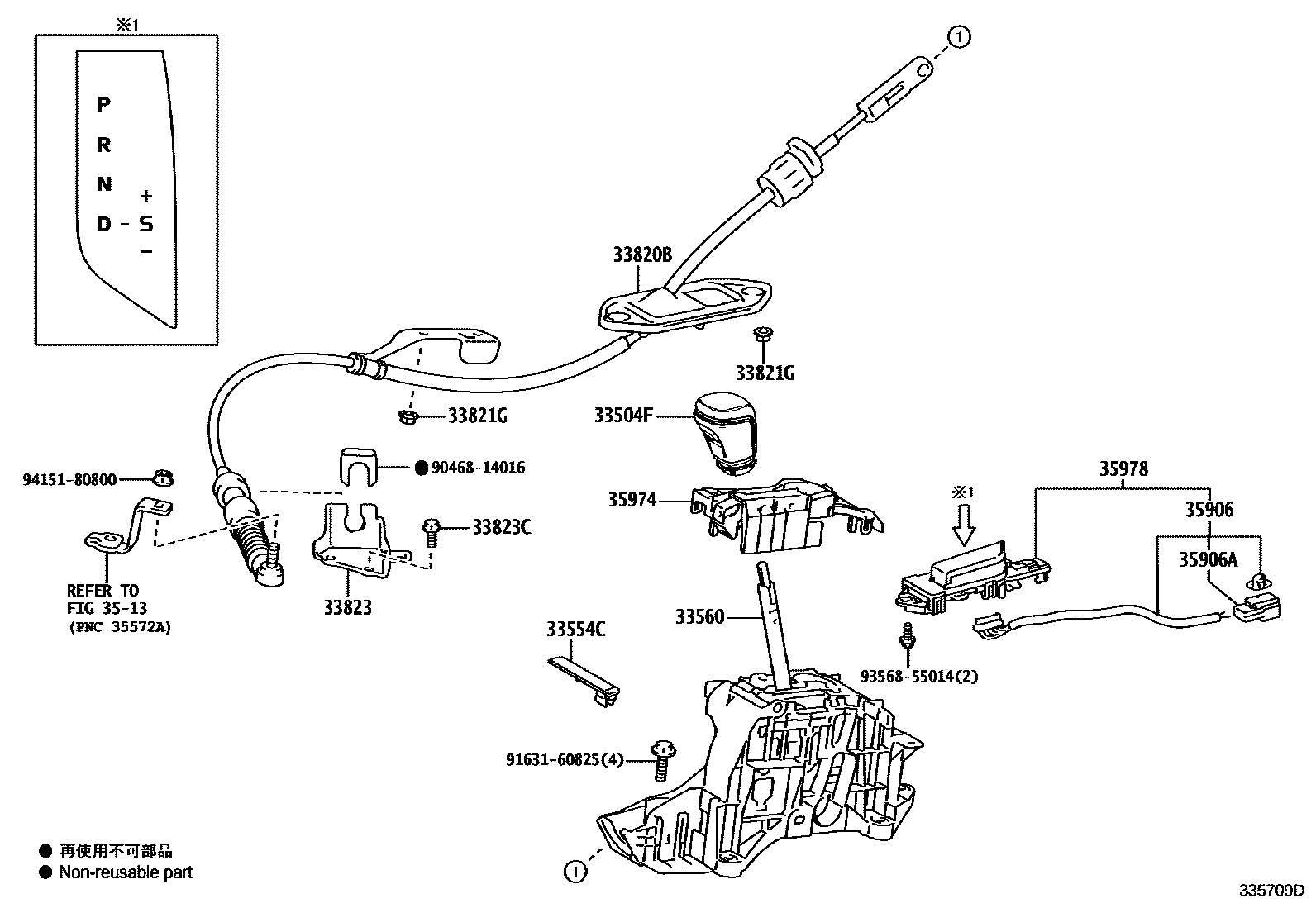

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12770-C0iASV7#,GSV70..RUS201808-202312

BLACK,TRIM2#,4#

main33504-12770-C0iAXVH7#..S202102

BLACK,TRIM2#,3#

main33504-12770-C0iAXVA70..S201910-202101

BLACK,TRIM2#

main33504-33180-C0iASV7#,GSV70..RUS201804-201807

BLACK,TRIM2#,4#

main33504-33180-C0iASV70,AXVA70,AXVH71,GSV70..EUR201709-201807

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-33130iAXVA70,GSV70,MXVA71..RUS201709-202312

main33554-33180iAXVA70,AXVH71..RHD201709-202101

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33370iASV70..LHD..EUR201709-202101

main33560-33380iAXVA70..LHD..EUR202102

KOREA SPEC

main33560-33380iAXVA70..LHD..EUR202102

UPPER GRADE PACKAGE

main33560-33380iAXVA70..LHD..EUR201709-202101

UKR SALE SPECIFICATIONS 4

main33560-33380iAXVA70,AXVH7#,GSV70..LHD..EUR201709-202101

UKR SALE SPECIFICATIONS 5

main33560-33380iAXVA70,AXVH7#,GSV70..LHD..EUR201709-202101

"BLACK EDITION"*(A)

main33560-33380iASV7#,GSV70..RUS201709-202312

main33560-33400iASV70,AXVH71..RHD201709-202101

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06620iGSV70..RUS201804-201811

(L)

sub33820-06621

main33820-06621iGSV70..RUS201812-202104

(L)

main33820-06621iAXVA70,GSV70..RUS202104-202203

main33820-06630iASV7#..RUS201804-201811

(L)

sub33820-06631

main33820-06631iASV7#..RUS201812-202104

(L)

main33820-06650iMXVA71202104-202203

(L)

main33820-33400iGSV70..RUS201804-201811

(J)

main33820-33400iAXVA70,GSV70..EUR201709-201810

main33820-33410iAXVH71..LHD201709-201810

main33820-33430iAXVH71..RHD201709-201810

main33820-33440iASV7#..RUS201804-201811

(J)

main33820-33440iASV70..LHD..EUR201709-201810

main33820-33450iASV70..RHD201709-201811

sub33820-33451

main33820-33451iASV70..RHD201812-202101

main33820-33470iAXVA70,GSV70..EUR201811-202207

main33820-33470iGSV70..RUS201812-202104

(J)

main33820-33480iAXVA70..RHD202102

main33820-33490iASV70..LHD..EUR201811-202101

sub33820-33440

main33820-33490iASV7#..RUS201812-202104

(J)

sub33820-33440

main33820-33500iAXVH70;AXVH71..LHD..D201811-202312

main33820-33510iAXVH71..RHD201811-202101

main33820-33560iAXVA70..JPP..LHD202207

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-W0039iASV7#,GSV70..RUS201804-202104

(L)

main90179-06274iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

main90179-06274iASV7#,GSV70..RUS201804-202104

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMXVA71202104-202203

main33823-33070iAXVA70,GSV70..EUR201709-202203

main33823-33080iAXVH70;AXVH71..RHD;AXVH71..LHD..D201709-202312

main33823-33110iASV7#..RUS201709-202104

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iASV70..RHD201709-202101

main90119-W0016iASV70..LHD..EUR201709-202104

sub90119-08026

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33180iAXVA70,GSV70..RUS201709-202203

main35906-33190iAXVH71..LHD..N201709-202312

main35906-33200iAXVA70..RHD201709-202101

main35906-33210iAXVH71..RHD201709-202101

main35906-33270iMXVA71202104-202203

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iAXVA70,GSV70..JPP201709-202203

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33240iAXVA70,GSV70,MXVA71..RUS201709-202312

main35974-33250iAXVA70,AXVH71..RHD201709-202101

35978INDICATOR, SHIFT POSITION

main35978-33180iAXVA70,GSV70..RUS201709-202203

main35978-33190iAXVH71..LHD..N201709-202312

main35978-33200iAXVA70..RHD201709-202101

main35978-33210iAXVH71..RHD201709-202101

main35978-33370iMXVA71202104-202203

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 8 diagrams in section
