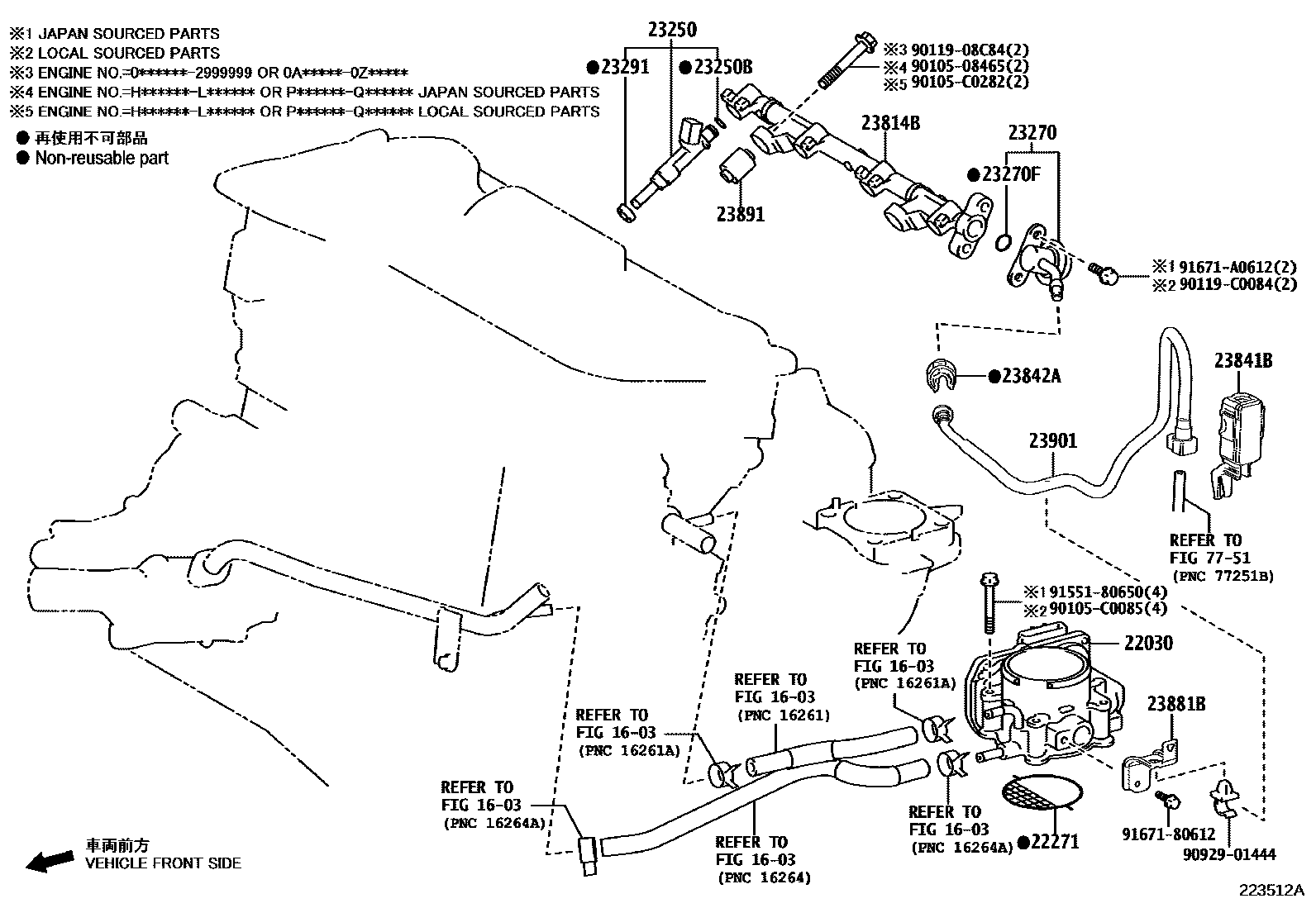

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V020i6ARFSE..ASV71201804-202104

main22030-0V040i2ARFE..ASV70..RUS201804-202104

*347

main22030-25010iA25AFKS..AXVA70..RUS202102-202203

main22030-25020iA25AFXS..AXVH71..LHD..N202102-202312

main22030-31090i2GRFKS..GSV70..EUR202102

main22030-36010i2ARFE..ASV70..RUS201709-202104

*524

main22030-F2040iM20AFKS..MXVA71202104-202203

22271GASKET, THROTTLE BODY

main22271-0T010i6ARFSE..ASV71201804-202104

main22271-24010iM20AFKS..MXVA71202104-202203

main22271-25010iA25AFKS..AXVA70201709-202101

main22271-25020iA25AFXS..AXVH70;A25AFXS..AXVH71..RHD;A25AFXS..AXVH71..LHD..D202102

main22271-31040i2GRFKS..GSV70..EUR202102

main22271-36010i2ARFE..ASV70..RUS201804-202104

*524,*347

23250INJECTOR ASSY, FUEL

main23209-09230×4i2ARFE..ASV70..RUS201804-202104

*347

main23209-39175×4i2ARFE..ASV70..EUR201709-202101

*524

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4iA25AFKS..AXVA70..RUS202102-202203

(J)

main90301-A0036×4iA25AFKS..AXVA70202006-202008

(L)

main90301-C0072×4i2ARFE..ASV70..RUS; 6ARFSE..ASV71201804-202104

(L); (L),*347

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASV70..EUR201709-202101

*524

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV70..RUS201709-202104

*524

23291INSULATOR, INJECTOR VIBRATION

main23291-0D020×4iM20AFKS..MXVA71202104-202203

main23291-0V010×4i2ARFE..ASV70..RUS; 6ARFSE..ASV71201804-202104

(L),*347

main23291-28020×4iA25AFXS..AXVH71..RHD;A25AFXS..AXVH71..LHD..D;A25#..AXVA70,AXVH70..JPP202102

main23291-31030×6i2GRFKS..GSV70..EUR202102

23814BPIPE, FUEL DELIVERY

main23814-0V010i6ARFSE..ASV71201804-202104

main23814-0V050i2ARFE..ASV70..RUS201804-202104

(L),*347

main23814-24010iM20AFKS..MXVA71202104-202203

main23814-25010iA25#..AXVA70,AXVH7#..EUR202102-202210

main23814-25011iA25AFXS..AXVH71..LHD..N202211-202312

main23814-36040i2ARFE..ASV70..RUS201804-202104

(J),*347

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070iM20AFKS..MXVA71202104-202203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFE..ASV70..EUR201709-202101

23881BBRACKET, FUEL HOSE

main23881-31040i2GRFKS..GSV70..EUR201709-202101

main23881-36110i2ARFE..ASV70..EUR201709-202101

main23881-36130i6ARFSE..ASV71201804-202104

23891SPACER, FUEL DELIVERY

main23891-24010×2iM20AFKS..MXVA71202104-202203

main23891-36010×2i2ARFE..ASV70..RUS201709-202104

*524

main23891-36020×2i6ARFSE..ASV71201804-202104

23901TUBE SUB-ASSY, FUEL

main23901-25011supersedes 23901-25010iA25AFKS..AXVA70201902-202101

main23901-25021iA25AFKS..AXVA70..RUS202102-202203

main23901-25030iA25AFXS..AXVH71201709-201901

main23901-25031supersedes 23901-25051iA25AFXS..AXVH71..N201902-202101

main23901-25051supersedes 23901-25031iA25AFXS..AXVH70;A25AFXS..AXVH71..D201902-202101

main23901-36200i2ARFE..ASV70201709-201901

main23901-36201i2ARFE..ASV70..RUS201902-202104

main23901-25050supersedes 23901-25051iA25AFXS..AXVH71..LHD201709-201901

KOREA SPEC

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9010508465

main90105-08465

90105C0085

main90105-C0085

90105C0282

main90105-C0282

9011908C84

main90119-08C84

90119C0084

main90119-C0084

9092901444

main90929-01444

9155180650

main91551-80650

9167180612

main91671-80612

91671A0612

main91671-A0612

24 parts on this diagram · 8 diagrams in section
