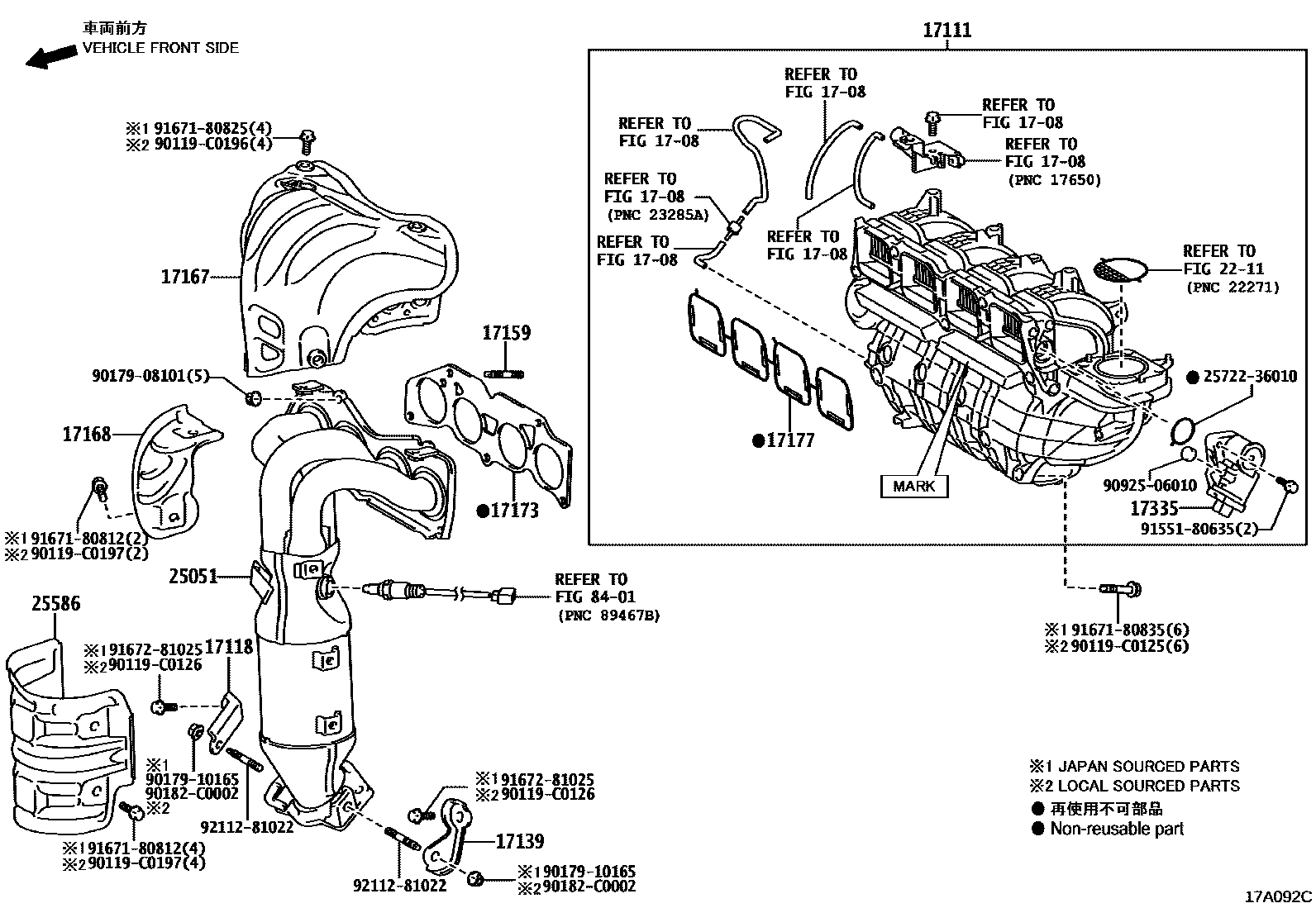

MANIFOLD
1708
17111MANIFOLD, INTAKE
*347,MARK17114-36012,*524
*347MARK232214-40060
17118STAY, MANIFOLD
*347
*524
17139STAY, MANIFOLD, NO.2
*347
*524
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
*524
(J),*347
(L),*347
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*347
HONGKONG SPEC
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC
*524
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
*347
*524
17173GASKET, EXHAUST MANIFOLD TO HEAD
*347
*524
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*524,*347
17335ACTUATOR, INTAKE AIR CONTROL VALVE
*524,*347
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*347
*524
25586INSULATOR, MANIFOLD CONVERTER, NO.1
*347
*524
8401
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
main25722-36010
90119C0125
main90119-C0125
90119C0126
main90119-C0126
90119C0196
main90119-C0196
90119C0197
main90119-C0197
9017908101
main90179-08101
9017910165
main90179-10165
90182C0002
main90182-C0002
9092506010
main90925-06010
9155180635
main91551-80635
9167180812
main91671-80812
9167180825
main91671-80825
9167180835
main91671-80835
9167281025
main91672-81025
9211281022
main92112-81022
29 parts on this diagram · 9 diagrams in section
