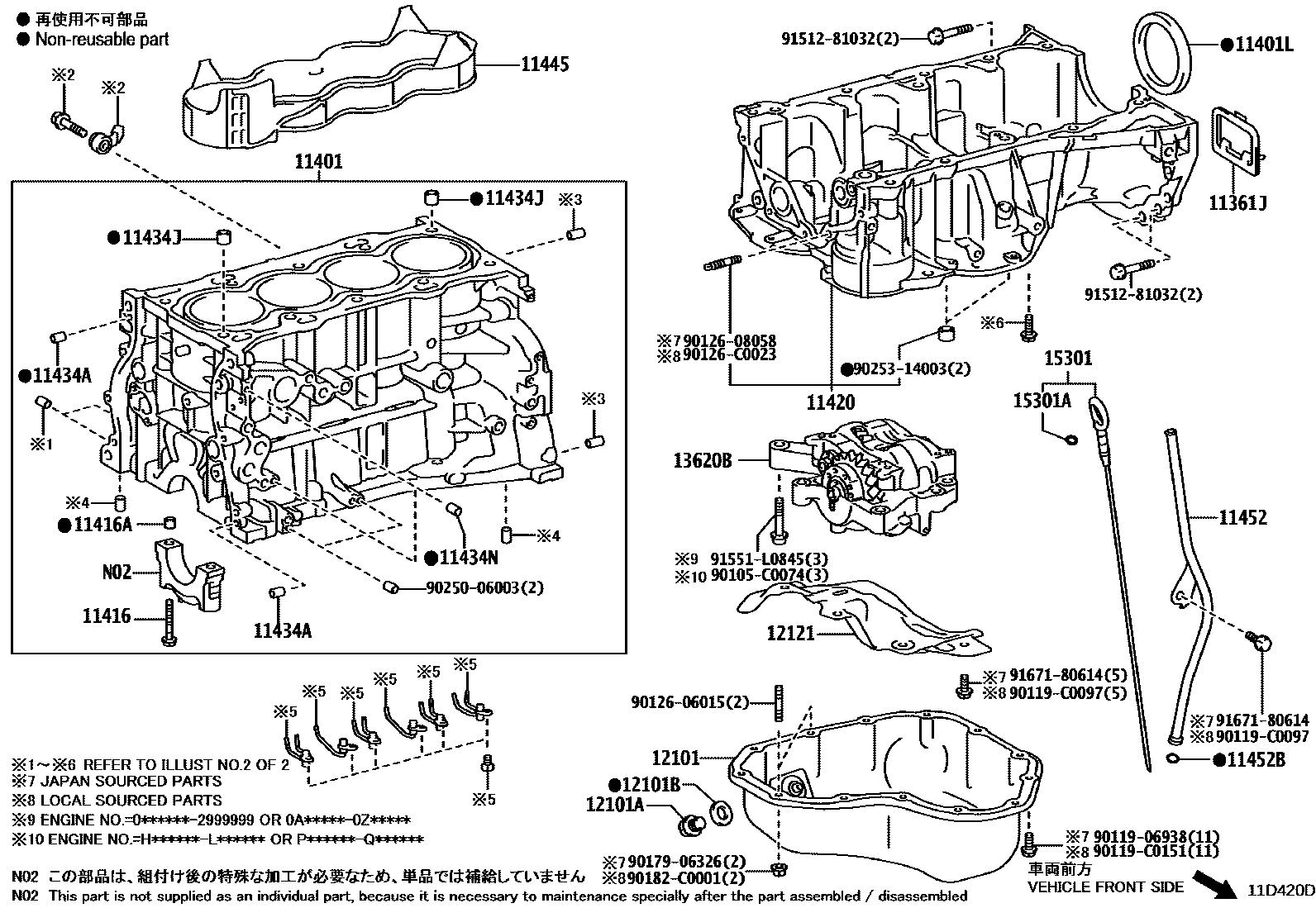

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
sub11401-80062
KOREA SPEC,TYPE A:REFER ILLUST.
PNC 15703A=TYPE B
UKRAINE SPEC
AZERBAIJAN,ARMENIA,GEORGIA SPEC
TYPE A:REFER ILLUST.
AZERBAIJAN,ARMENIA,GEORGIA SPEC,TYPE A:REFER ILLUST.
PAPUA NEW GUINEA/FIJI SPEC,TYPE A:REFER ILLUST.
HONGKONG SPEC,TYPE A:REFER ILLUST.
UKRAINE SPEC,TYPE A:REFER ILLUST.
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
EGYPT SPEC,TYPE A:REFER ILLUST.
HONGKONG SPEC,PNC 15703A=TYPE B
TYPE A:REFER ILLUST.
PNC 15703A=TYPE B
TYPE B:REFER ILLUST.
KOREA SPEC,TYPE B:REFER ILLUST.
AZERBAIJAN,ARMENIA,GEORGIA SPEC,TYPE B:REFER ILLUST.
PAPUA NEW GUINEA/FIJI SPEC,TYPE B:REFER ILLUST.
HONGKONG SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
*524
*347
sub11410-F9031
11401LSEAL, ENGINE REAR OIL
*524
(J)
*347
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*524
(J),*347
(J)
(L)
(L),*347
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
*524
(J),*347
(J)
(L)
(L),*347
11420CRANKCASE ASSY, STIFFENING
*347
*524
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,*524
L=14,OD=6
L=14,OD=6,*347
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
*524
(J),*347
(J)
*347
(L),*347
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*524
*347
11445SPACER, CYLINDER BLOCK WATER JACKET
(L),*347
*524
(J),*347
11452GUIDE, OIL LEVEL GAGE
*524
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L),*347
*524
(J),*347
12101APLUG(FOR OIL PAN DRAIN)
*524
*347
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*524
(J),*347
(J)
(L)
(L),*347
12121PLATE, OIL PAN BAFFLE, NO.1
*347
*524
13620BBALANCER ASSY, ENGINE
(L),*347
(J),*347
*524
15301GAGE SUB-ASSY, OIL LEVEL
*347
*524
15301ARING, O(FOR OIL LEVEL GAGE)
*347
*524
90105C0074
main90105-C0074
9011906938
main90119-06938
90119C0097
main90119-C0097
90119C0151
main90119-C0151
9012606015
main90126-06015
9012608058
main90126-08058
90126C0023
main90126-C0023
9017906326
main90179-06326
90182C0001
main90182-C0001
9025006003
main90250-06003
9025314003
main90253-14003
9151281032
main91512-81032
91551L0845
main91551-L0845
9167180614
main91671-80614
33 parts on this diagram · 11 diagrams in section
