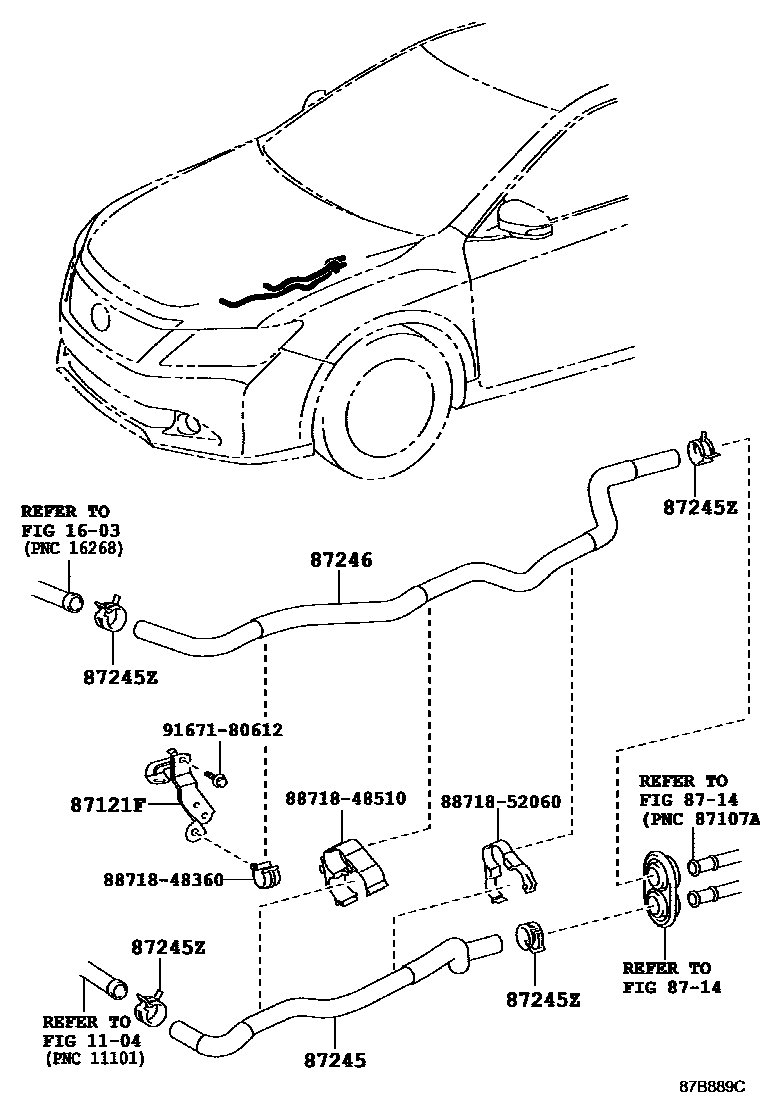

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87121FBRACKET, HEATER

main87121-33010iASV50..JPP201212-201409

main87452-33040iASV50201108-201212

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-33630iGSV50..RUP201108-201411

main87245-33650iASV50..RUP201108-201411

main87245-33670iAVV50201409-201704

main87245-33740iACV51201208-201411

main87245-33780iASV51201503

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42501×4iACV51,ASV50,AVV50,GSV50201108-201411

main96138-42501×4iASV50,AVV50,GSV50..JPP201511-201704

87246HOSE, HEATER WATER, OUTLET

main87245-33540iACV51201208-201411

main87245-33640iGSV50..RUP201409

main87245-33660iASV50..JPP201108-201409

main87245-33680iAVV50..LHD201409-201704

main87245-33700iAVV50..RHD201409-201704

main87245-33790iASV51201503

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

8871848510PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48510

8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52060

9167180612

main91671-80612

11 parts on this diagram · 6 diagrams in section
