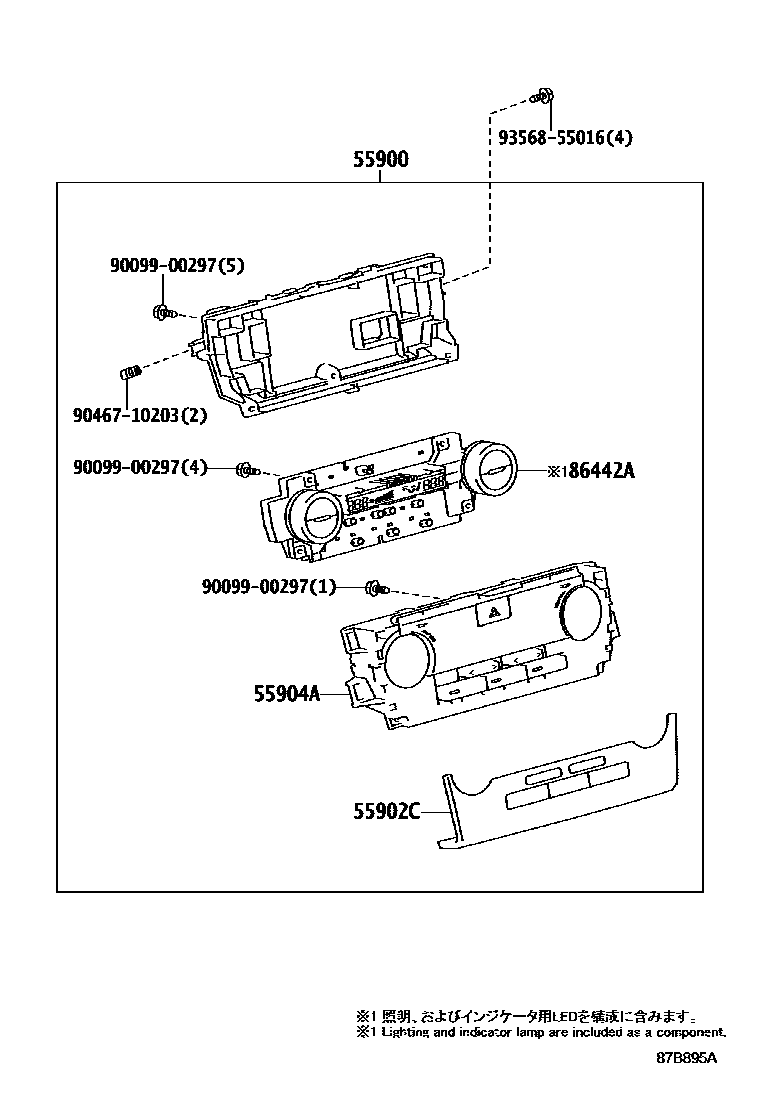

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---FRONT 0003 1CONTROL PANEL---FRONT 0006 1CONTROL PANEL---REAR 0007 1AIR DUCT 0009 1AIR DUCT 0010 1SENSOR 0012 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33C30iASV50,AVV50..JPP..LHD201409-201704

main55900-33D50iASV50,AVV50..JPP..LHD201108-201409

main55900-33D60iASV50..RUP; GSV50..RUP201211-201411

*SES&*NS&*JA&HID

main55900-33D70iASV50,AVV50..RHD201108-201409

main55900-33D80iACV51,ASV50..RUP201111-201411

main55900-33D90iGSV50..RUP201111-201211

main55900-33E80iASV50..JPP..RUS; GSV50..JPP201409-201704

TSUTSUMI SFX R4; TSUTSUMI,SFX,N4

main55900-33E90iASV50,AVV50..RHD201409-201704

main55900-33F00iASV5#..RUP201411

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33A80iACV51,ASV50,GSV50..RUP201108-201411

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33240iASV50,AVV50,GSV50..JPP..LHD201108-201409

main55904-33250iASV50,AVV50..RHD201108-201409

main55904-33290iACV51,ASV50..RUP201111-201411

main55904-33300iASV50,AVV50..JPP..LHD201409-201704

main55904-33310iASV50..JPP..RUS; GSV50..JPP201409-201704

TSUTSUMI SFX R4; TSUTSUMI,SFX,N4

main55904-33320iASV5#..RUP201411

main55904-33330iASV50,AVV50..RHD201409-201704

86442ABOARD, HEATER CONTROL SWITCH

main86442-33010iASV50,AVV50..JPP..LHD201108-201409

main86442-33020iASV50..JPP..RUS; GSV50..JPP201108-201409

*SES&*AFLS&*NS&*JA&HID; *SES&*AFLS&HID

main86442-33030iASV50,AVV50..RHD201108-201409

main86442-33040iACV51,ASV50..RUP201111-201411

main86442-33050iGSV50..RUP201111-201211

main86442-33090iASV50,AVV50,GSV50..JPP..LHD201409-201704

main86442-33100iASV5#..RUP201411

main86442-33110iASV50,AVV50..RHD201409-201704

9009900297

main90099-00297

9046710203

main90467-10203

9356855016

main93568-55016

7 parts on this diagram · 7 diagrams in section
