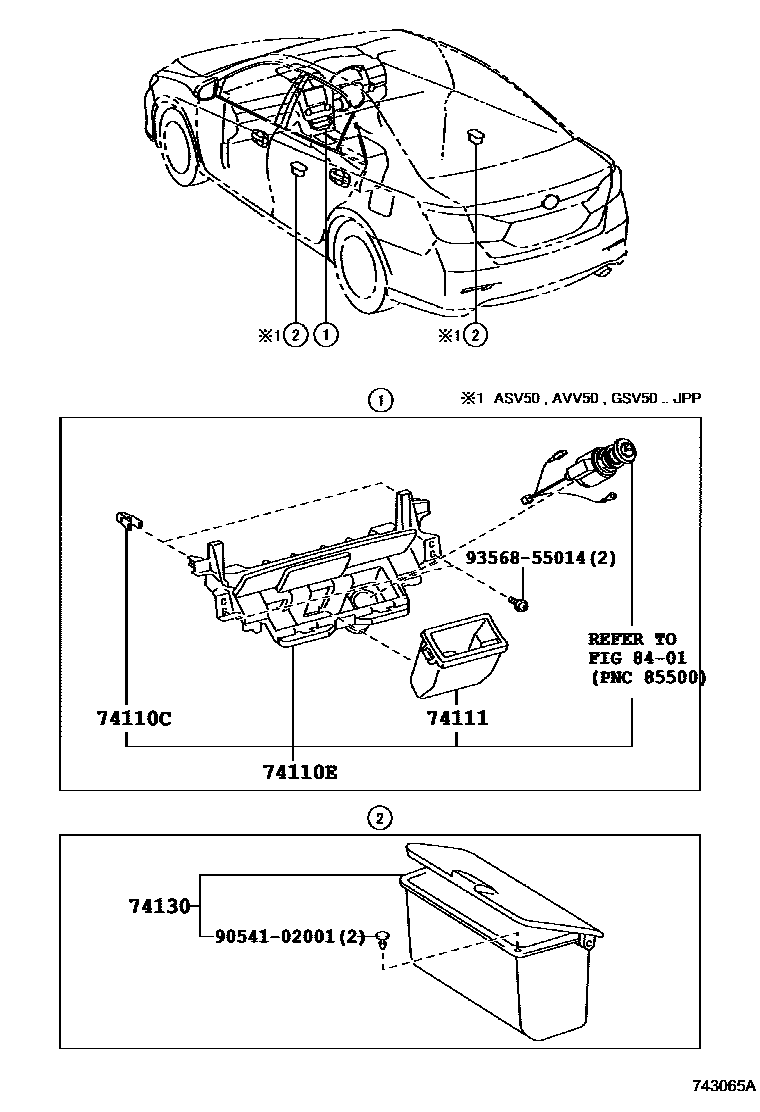

ASH RECEPTACLE

74110CCLIP, FRONT ASH RECEPTACLE, INNER

main90467-10203×2iACV51,ASV50,GSV50..RUP201108-201411

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33290-E0iASV50,GSV50201108-201411

SHELL,TRIM0#,2#

main74110-33300-E1iAVV50201108-201411

SHELL,TRIM0#,2#

main74110-33301-E1iASV51201503-201803

SHELL,TRIM0#,2#

main74110-33320-E1iAVV50201409-201704

BROWN,TRIM0#,2#

main74110-33330-E0iASV50,GSV50..JPP201409-201704

SHELL,TRIM0#,2#

74111BOX, FRONT ASH RECEPTACLE

main74111-33050iASV50,AVV50,GSV50..JPP201108-201409

74130RECEPTACLE ASSY, REAR ASH

main74130-33050-E0×2iASV50,GSV50..JPP201108-201409

SHELL,TRIM0#,2#

main74130-33060-E0×2iAVV50201108-201409

SHELL,TRIM0#,2#

main74130-33100-E0×2iASV50,GSV50..JPP201409-201704

SHELL,TRIM0#,2#

main74130-33110-E0×2iAVV50201409-201704

BROWN,TRIM0#,2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9054102001

main90541-02001

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
