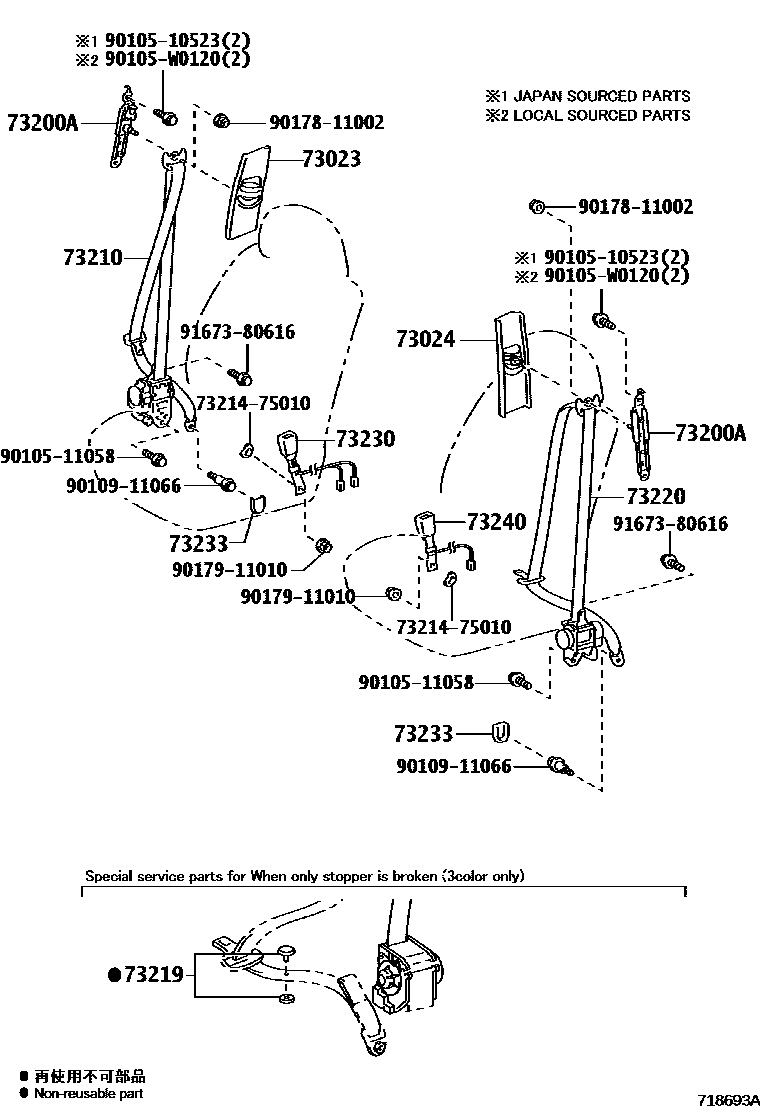

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
FLAXEN,TRIM0#
GRAY,TRIM2#; GRAY,TRIM2#,4#
SHELL,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
FLAXEN,TRIM0#,(L)
GRAY,TRIM2#; GRAY,TRIM2#,4#
SHELL,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM2#,(J); GRAY,TRIM2#,4#,(J)
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#; FLAXEN,TRIM0#
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#,4#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,4#; BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#; FLAXEN,TRIM0#
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#,4#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,4#; BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#; FLAXEN,TRIM0#
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#,4#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,4#; BLACK,TRIM2#
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
FLAXEN,TRIM0#
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
PHILIPPINE SPEC,FLAXEN,TRIM0#
PHILIPPINE SPEC,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
SHELL,TRIM0#
FLAXEN,TRIM0#; FLAXEN,TRIM00
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM00,2#,4#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM00,2#,4#; BLACK,TRIM00,2#
BLACK,TRIM0#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#; FLAXEN,TRIM0#
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#,4#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,4#; BLACK,TRIM2#
main73230-33700-A0supersedes 73230-33510-A0iASV50..JPP..LHD; ASV50..JPP..RUS; AVV50,GSV50..JPP..LHD201108-201409
*PSE(*DRP & *RES) & LEATHER PACKAGE,SHELL,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#; SHELL,TRIM0#
main73230-33700-A1supersedes 73230-33510-A1iASV50..JPP..LHD; ASV50..JPP..RUS; AVV50,GSV50..JPP..LHD201409-201704
*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#; *PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#; FLAXEN,TRIM0#
main73230-33700-C0supersedes 73230-33510-C0iASV50..JPP..LHD; ASV50..JPP..RUS; AVV50,GSV50..JPP..LHD201409-201704
*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#; *PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
90105W0120
main90105-W0120
9010911066
main90109-11066
9017811002
main90178-11002
9017911010
main90179-11010
9167380616
main91673-80616
17 parts on this diagram · 4 diagrams in section
