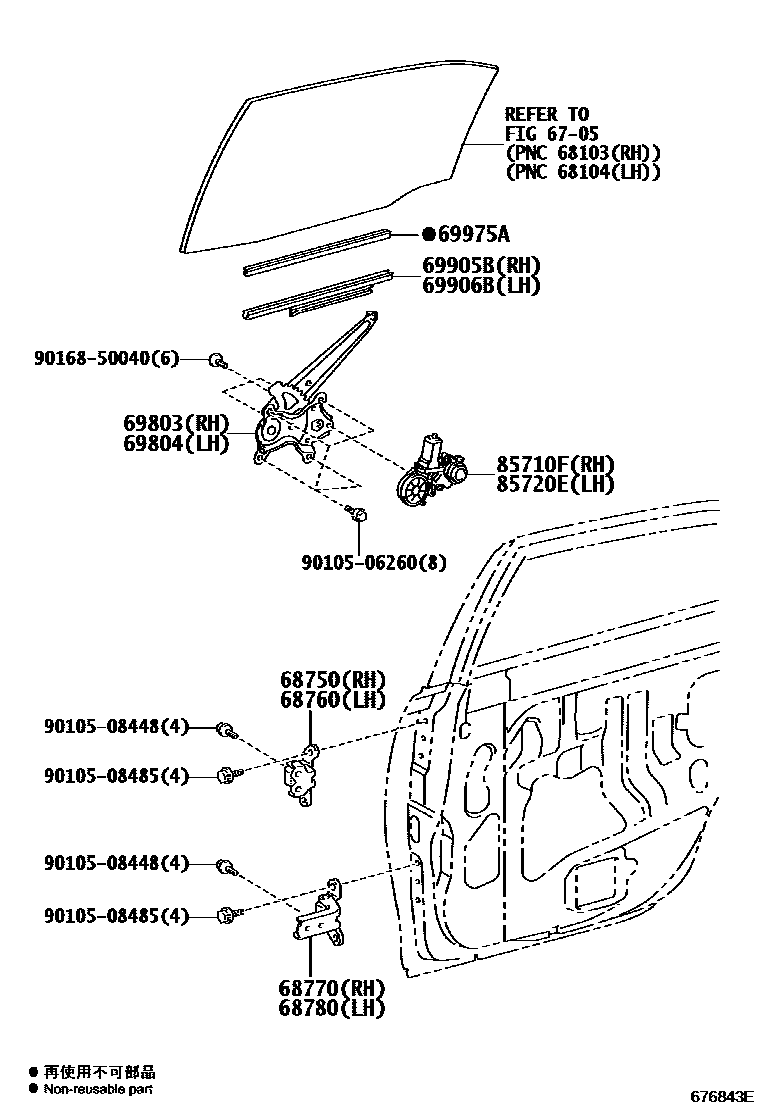

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0003 1

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061iACV51,ASV50,GSV50..RUP201311-201411

(L)

main68750-20121iASV50,AVV50,GSV50201108-201205

main68750-20122iASV5#,GSV50..RUP201409

(J)

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061iASV50,AVV50,GSV50..JPP201409-201704

(L)

main68760-20121iASV50,AVV50,GSV50201108-201205

main68760-20122iASV50,AVV50,GSV50..JPP201409-201704

(J)

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071iASV50,AVV50,GSV50..JPP201311-201409

(L)

main68770-52031iACV51,ASV50,GSV50..RUP201309-201411

(J)

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071iASV50,AVV50,GSV50..JPP201409-201704

(L)

main68780-52031iACV51,ASV50,GSV50..RUP201309-201411

(J)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iACV51,ASV50,GSV50..RUP201108-201411

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iASV50,AVV50,GSV50..JPP201108-201409

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iACV51,ASV50,AVV50,GSV50201108-201411

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iACV51,ASV50,AVV50,GSV50201108-201411

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010×2iASV50,AVV50,GSV50..JPP201409-201704

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-12510iASV5#,GSV50..RUP201612

main85720-33240iACV51,ASV50,AVV50,GSV50201108-201302

main85720-33241iASV50,AVV50,GSV50..JPP201303-201409

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-12520iASV5#,GSV50..RUP201612

main85710-33230iACV51,ASV50,AVV50,GSV50201108-201302

main85710-33231iASV50,AVV50,GSV50..JPP201303-201409

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 2 diagrams in section
