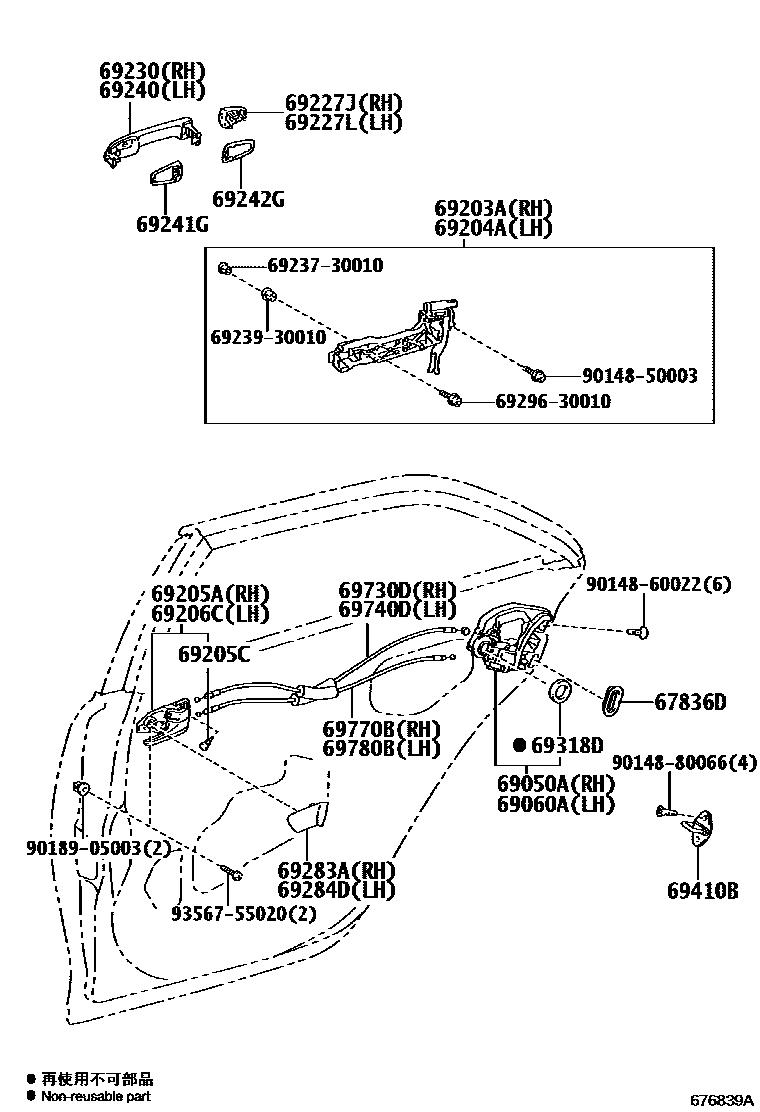

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33030
*SES&*AFLS&*NS&*JA&HID,TRUE BLUE M.M.,8W1
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33030
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33030
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69250-33030
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69250-33030
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69250-33030
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33030
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69250-33030
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33030
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33030
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69250-33030
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33110
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69210-33110
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69210-33110
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33110
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69210-33110
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33110
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69210-33110
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69210-33110
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69210-33110
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69210-33110
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
30 parts on this diagram · 1 diagram in section
