EPC Data

FRONT DOOR LOCK & HANDLE

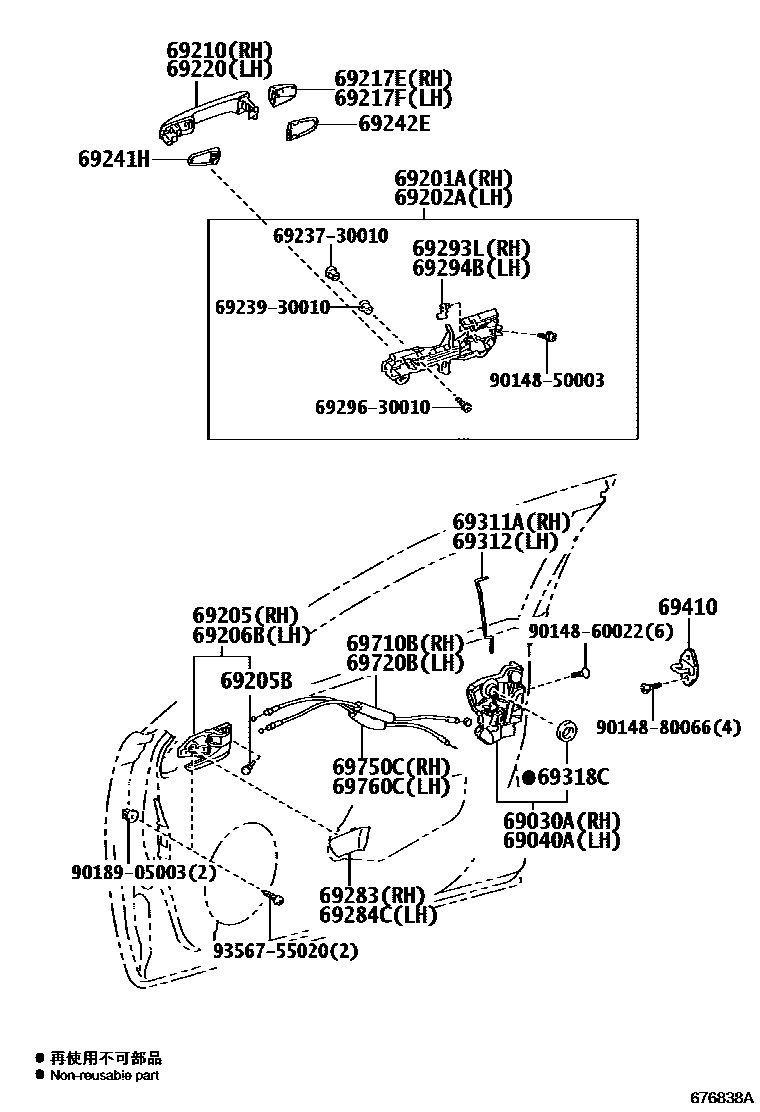

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-42210i201108-201704
main69030-42221i201108-201704
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-42230i201108-201704
main69040-42241i201108-201704
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-52130i201108-201704
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-52070i201108-201704
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-33111-C0i201108-201803
BLACK,TRIM0#,2#
main69205-33111-C0i201411-201803
BLACK,TRIM0#,2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i201108-201704
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-33121-C0i201108-201803
BLACK,TRIM0#,2#
main69206-33121-C0i201411-201803
BLACK,TRIM0#,2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-33120-A1i201108-201803
WHITE PEARL CS.,070
sub69210-33120
main69210-33120-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69210-33120
main69210-33120-A2i201109-201803
SUPER WHITE 2,040
sub69210-33120
main69210-33120-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69210-33120
main69210-33120-B0i201108-201803
SILVER ME.,1F7
sub69210-33120
main69210-33120-B1i201108-201411
GRAY ME.,1G3
sub69210-33120
main69210-33120-B2i201108-201803
DK. STEEL MC.,1H2
sub69210-33120
main69210-33120-B6i201409-201704
GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
TSUTSUMI,SFX,N4,GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
TSUTSUMI SFX R4,GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69210-33120
main69210-33120-C0i201108-201803
ATTITUDE BLACK MC.,218
sub69210-33120
main69210-33120-D0i201409-201704
TSUTSUMI SFX R4,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201409
*SES&*AFLS&*NS&*JA&HID,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201704
RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201409
*SES&*AFLS&HID,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201409-201704
TSUTSUMI,SFX,N4,RED M.M.,3R3
sub69210-33120
main69210-33120-E1i201108-201311
BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
*SES&*AFLS&HID,BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
*SES&*AFLS&*NS&*JA&HID,BEIGE ME.,4T8
sub69210-33120
main69210-33120-E6i201704-201803
DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-G0i201108-201309
*SES&*AFLS&HID,OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
*SES&*AFLS&*NS&*JA&HID,OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69210-33120
main69210-33120-J2i201409-201704
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201409-201704
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
*SES&*AFLS&HID,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
*SES&*AFLS&*NS&*JA&HID,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J4i201309-201409
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
*SES&*AFLS&HID,DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J9i201409-201704
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69210-33120
main69211-52100-A0i201108-201803
SUPER WHITE 2,040
sub69211-52100
main69211-52100-A1i201108-201803
WHITE PEARL CS.,070
sub69211-52100
main69211-52100-B0i201108-201803
SILVER ME.,1F7
sub69211-52100
main69211-52100-B1i201108-201411
GRAY ME.,1G3
sub69211-52100
main69211-52100-B5i201108-201803
DK. STEEL MC.,1H2
sub69211-52100
main69211-52100-B8i201409-201704
GRAY M.M.,1H1
sub69211-52100
main69211-52100-C1i201108-201803
ATTITUDE BLACK MC.,218
sub69211-52100
main69211-52100-D4i201209-201704
RED M.M.,3R3
sub69211-52100
main69211-52100-E0i201704-201803
DK. BROWN M.M.,4U3
sub69211-52100
main69211-52100-E2i201108-201311
BEIGE ME.,4T8
sub69211-52100
main69211-52100-G0i201108-201309
OLIVE M.M.,6T7
sub69211-52100
main69211-52100-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69211-52100
main69211-52100-J4i201309-201409
DK.BLUE MC.,8S6
sub69211-52100
main69211-52100-R0i201409-201704
DK.BLUE M.M.,8W7
sub69211-52100
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-52030-A1i201108-201409
WHITE PEARL CS.,070
sub69217-52030
main69217-52030-B0i201108-201409
SILVER ME.,1F7
sub69217-52030
main69217-52030-B1i201108-201409
GRAY ME.,1G3
sub69217-52030
main69217-52030-B5i201108-201409
DK. STEEL MC.,1H2
sub69217-52030
main69217-52030-C1i201108-201409
ATTITUDE BLACK MC.,218
sub69217-52030
main69217-52030-D3i201209-201409
RED M.M.,3R3
sub69217-52030
main69217-52030-E2i201108-201311
BEIGE ME.,4T8
sub69217-52030
main69217-52030-G0i201108-201309
OLIVE M.M.,6T7
sub69217-52030
main69217-52030-J2i201108-201409
TRUE BLUE M.M.,8W1
sub69217-52030
main69217-52030-J6i201309-201409
DK.BLUE MC.,8S6
sub69217-52030
main69217-52040-A0i201108-201803
SUPER WHITE 2,040
sub69217-52040
main69217-52040-A1i201108-201803
WHITE PEARL CS.,070
sub69217-52040
main69217-52040-B0i201108-201803
SILVER ME.,1F7
sub69217-52040
main69217-52040-B1i201108-201411
GRAY ME.,1G3
sub69217-52040
main69217-52040-B5i201108-201803
DK. STEEL MC.,1H2
sub69217-52040
main69217-52040-B8i201409-201704
GRAY M.M.,1H1
sub69217-52040
main69217-52040-C1i201108-201803
ATTITUDE BLACK MC.,218
sub69217-52040
main69217-52040-D3i201209-201704
RED M.M.,3R3
sub69217-52040
main69217-52040-E0i201704-201803
DK. BROWN M.M.,4U3
sub69217-52040
main69217-52040-E2i201108-201311
BEIGE ME.,4T8
sub69217-52040
main69217-52040-G0i201108-201309
OLIVE M.M.,6T7
sub69217-52040
main69217-52040-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69217-52040
main69217-52040-J6i201309-201409
DK.BLUE MC.,8S6
sub69217-52040
main69217-52040-R4i201409-201704
DK.BLUE M.M.,8W7
sub69217-52040
main69250-33010-A1i201108-201704
WHITE PEARL CS.,070
sub69250-33010
main69250-33010-A1i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),WHITE PEARL CS.,070
sub69250-33010
main69250-33010-B0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),SILVER ME.,1F7
sub69250-33010
main69250-33010-B0i201108-201704
SILVER ME.,1F7
sub69250-33010
main69250-33010-B1i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),GRAY ME.,1G3
sub69250-33010
main69250-33010-B1i201108-201409
GRAY ME.,1G3
sub69250-33010
main69250-33010-B2i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK. STEEL MC.,1H2
sub69250-33010
main69250-33010-B2i201108-201704
DK. STEEL MC.,1H2
sub69250-33010
main69250-33010-B6i201409-201704
GRAY M.M.,1H1
sub69250-33010
main69250-33010-C0i201108-201704
ATTITUDE BLACK MC.,218
sub69250-33010
main69250-33010-C0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),ATTITUDE BLACK MC.,218
sub69250-33010
main69250-33010-D0i201209-201704
RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33010
main69250-33010-E0i201108-201311
BEIGE ME.,4T8
sub69250-33010
main69250-33010-E0i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33010
main69250-33010-G0i201108-201309
OLIVE M.M.,6T7
sub69250-33010
main69250-33010-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33010
main69250-33010-J0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201108-201704
TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J4i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J4i201309-201409
DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J9i201409-201704
DK.BLUE M.M.,8W7
sub69250-33010
main69250-33020-A0i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69250-33020
main69250-33020-A0i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69250-33020
main69250-33020-A0i201109-201803
SUPER WHITE 2,040
sub69250-33020
main69250-33020-A1i201108-201803
WHITE PEARL CS.,070
sub69250-33020
main69250-33020-B0i201108-201803
SILVER ME.,1F7
sub69250-33020
main69250-33020-B1i201108-201411
GRAY ME.,1G3
sub69250-33020
main69250-33020-B2i201108-201803
DK. STEEL MC.,1H2
sub69250-33020
main69250-33020-B6i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69250-33020
main69250-33020-B6i201409-201704
TSUTSUMI,SFX,N4,GRAY M.M.,1H1
sub69250-33020
main69250-33020-B6i201409-201704
TSUTSUMI SFX R4,GRAY M.M.,1H1
sub69250-33020
main69250-33020-B6i201409-201704
GRAY M.M.,1H1
sub69250-33020
main69250-33020-C0i201108-201803
ATTITUDE BLACK MC.,218
sub69250-33020
main69250-33020-D0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201409-201704
TSUTSUMI SFX R4,RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201209-201704
RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201409-201704
TSUTSUMI,SFX,N4,RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201209-201409
*SES&*AFLS&HID,RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201209-201409
*SES&*AFLS&*NS&*JA&HID,RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33020
main69250-33020-E0i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33020
main69250-33020-E0i201108-201311
BEIGE ME.,4T8
sub69250-33020
main69250-33020-E0i201108-201311
*SES&*AFLS&HID,BEIGE ME.,4T8
sub69250-33020
main69250-33020-E0i201108-201311
*SES&*AFLS&*NS&*JA&HID,BEIGE ME.,4T8
sub69250-33020
main69250-33020-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69250-33020
main69250-33020-E6i201704-201803
DK. BROWN M.M.,4U3
sub69250-33020
main69250-33020-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69250-33020
main69250-33020-G0i201108-201309
*SES&*AFLS&*NS&*JA&HID,OLIVE M.M.,6T7
sub69250-33020
main69250-33020-G0i201108-201309
*SES&*AFLS&HID,OLIVE M.M.,6T7
sub69250-33020
main69250-33020-G0i201108-201309
OLIVE M.M.,6T7
sub69250-33020
main69250-33020-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33020
main69250-33020-J0i201409-201704
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201409-201704
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201108-201704
TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201108-201409
*SES&*AFLS&HID,TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201108-201409
*SES&*AFLS&*NS&*JA&HID,TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J3i201309-201409
DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J3i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J3i201309-201409
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J3i201309-201409
*SES&*AFLS&HID,DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J8i201409-201704
DK.BLUE M.M.,8W7
sub69250-33020
main69250-33020-J8i201409-201704
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69250-33020
main69250-33020-J8i201409-201704
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69250-33020
main69250-33020-J8i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69250-33020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-52030-A0i201108-201803
SUPER WHITE 2,040
sub69217-52030
main69217-52030-A1i201108-201803
WHITE PEARL CS.,070
sub69217-52030
main69217-52030-B0i201108-201803
SILVER ME.,1F7
sub69217-52030
main69217-52030-B1i201108-201411
GRAY ME.,1G3
sub69217-52030
main69217-52030-B5i201108-201803
DK. STEEL MC.,1H2
sub69217-52030
main69217-52030-B8i201409-201704
GRAY M.M.,1H1
sub69217-52030
main69217-52030-C1i201108-201803
ATTITUDE BLACK MC.,218
sub69217-52030
main69217-52030-D3i201209-201704
RED M.M.,3R3
sub69217-52030
main69217-52030-E0i201704-201803
DK. BROWN M.M.,4U3
sub69217-52030
main69217-52030-E2i201108-201311
BEIGE ME.,4T8
sub69217-52030
main69217-52030-G0i201108-201309
OLIVE M.M.,6T7
sub69217-52030
main69217-52030-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69217-52030
main69217-52030-J6i201309-201409
DK.BLUE MC.,8S6
sub69217-52030
main69217-52030-R4i201409-201704
DK.BLUE M.M.,8W7
sub69217-52030
main69217-52040-A1i201108-201409
WHITE PEARL CS.,070
sub69217-52040
main69217-52040-B0i201108-201409
SILVER ME.,1F7
sub69217-52040
main69217-52040-B1i201108-201409
GRAY ME.,1G3
sub69217-52040
main69217-52040-B5i201108-201409
DK. STEEL MC.,1H2
sub69217-52040
main69217-52040-C1i201108-201409
ATTITUDE BLACK MC.,218
sub69217-52040
main69217-52040-D3i201209-201409
RED M.M.,3R3
sub69217-52040
main69217-52040-E2i201108-201311
BEIGE ME.,4T8
sub69217-52040
main69217-52040-G0i201108-201309
OLIVE M.M.,6T7
sub69217-52040
main69217-52040-J2i201108-201409
TRUE BLUE M.M.,8W1
sub69217-52040
main69217-52040-J6i201309-201409
DK.BLUE MC.,8S6
sub69217-52040
main69250-33010-A0i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69250-33010
main69250-33010-A0i201109-201803
SUPER WHITE 2,040
sub69250-33010
main69250-33010-A0i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69250-33010
main69250-33010-A1i201108-201803
WHITE PEARL CS.,070
sub69250-33010
main69250-33010-B0i201108-201803
SILVER ME.,1F7
sub69250-33010
main69250-33010-B1i201108-201411
GRAY ME.,1G3
sub69250-33010
main69250-33010-B2i201108-201803
DK. STEEL MC.,1H2
sub69250-33010
main69250-33010-B6i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69250-33010
main69250-33010-B6i201409-201704
TSUTSUMI,SFX,N4,GRAY M.M.,1H1
sub69250-33010
main69250-33010-B6i201409-201704
GRAY M.M.,1H1
sub69250-33010
main69250-33010-B6i201409-201704
TSUTSUMI SFX R4,GRAY M.M.,1H1
sub69250-33010
main69250-33010-C0i201108-201803
ATTITUDE BLACK MC.,218
sub69250-33010
main69250-33010-D0i201209-201704
RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201409-201704
TSUTSUMI SFX R4,RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201409-201704
TSUTSUMI,SFX,N4,RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201209-201409
*SES&*AFLS&HID,RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201209-201409
*SES&*AFLS&*NS&*JA&HID,RED M.M.,3R3
sub69250-33010
main69250-33010-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33010
main69250-33010-E0i201108-201311
*SES&*AFLS&*NS&*JA&HID,BEIGE ME.,4T8
sub69250-33010
main69250-33010-E0i201108-201311
*SES&*AFLS&HID,BEIGE ME.,4T8
sub69250-33010
main69250-33010-E0i201108-201311
BEIGE ME.,4T8
sub69250-33010
main69250-33010-E0i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33010
main69250-33010-E6i201704-201803
DK. BROWN M.M.,4U3
sub69250-33010
main69250-33010-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69250-33010
main69250-33010-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69250-33010
main69250-33010-G0i201108-201309
*SES&*AFLS&*NS&*JA&HID,OLIVE M.M.,6T7
sub69250-33010
main69250-33010-G0i201108-201309
OLIVE M.M.,6T7
sub69250-33010
main69250-33010-G0i201108-201309
*SES&*AFLS&HID,OLIVE M.M.,6T7
sub69250-33010
main69250-33010-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33010
main69250-33010-J0i201108-201409
*SES&*AFLS&*NS&*JA&HID,TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201108-201409
*SES&*AFLS&HID,TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201108-201704
TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201409-201704
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201409-201704
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33010
main69250-33010-J4i201309-201409
*SES&*AFLS&HID,DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J4i201309-201409
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J4i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J4i201309-201409
DK.BLUE MC.,8S6
sub69250-33010
main69250-33010-J9i201409-201704
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69250-33010
main69250-33010-J9i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69250-33010
main69250-33010-J9i201409-201704
DK.BLUE M.M.,8W7
sub69250-33010
main69250-33010-J9i201409-201704
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69250-33010
main69250-33020-A1i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),WHITE PEARL CS.,070
sub69250-33020
main69250-33020-A1i201108-201704
WHITE PEARL CS.,070
sub69250-33020
main69250-33020-B0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),SILVER ME.,1F7
sub69250-33020
main69250-33020-B0i201108-201704
SILVER ME.,1F7
sub69250-33020
main69250-33020-B1i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),GRAY ME.,1G3
sub69250-33020
main69250-33020-B1i201108-201409
GRAY ME.,1G3
sub69250-33020
main69250-33020-B2i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK. STEEL MC.,1H2
sub69250-33020
main69250-33020-B2i201108-201704
DK. STEEL MC.,1H2
sub69250-33020
main69250-33020-B6i201409-201704
GRAY M.M.,1H1
sub69250-33020
main69250-33020-C0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),ATTITUDE BLACK MC.,218
sub69250-33020
main69250-33020-C0i201108-201704
ATTITUDE BLACK MC.,218
sub69250-33020
main69250-33020-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69250-33020
main69250-33020-D0i201209-201704
RED M.M.,3R3
sub69250-33020
main69250-33020-E0i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69250-33020
main69250-33020-E0i201108-201311
BEIGE ME.,4T8
sub69250-33020
main69250-33020-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69250-33020
main69250-33020-G0i201108-201309
OLIVE M.M.,6T7
sub69250-33020
main69250-33020-J0i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J0i201108-201704
TRUE BLUE M.M.,8W1
sub69250-33020
main69250-33020-J3i201309-201409
DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J3i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69250-33020
main69250-33020-J8i201409-201704
DK.BLUE M.M.,8W7
sub69250-33020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-33120-A1i201108-201803
WHITE PEARL CS.,070
sub69210-33120
main69210-33120-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,SUPER WHITE 2,040
sub69210-33120
main69210-33120-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,SUPER WHITE 2,040
sub69210-33120
main69210-33120-A2i201109-201803
SUPER WHITE 2,040
sub69210-33120
main69210-33120-B0i201108-201803
SILVER ME.,1F7
sub69210-33120
main69210-33120-B1i201108-201411
GRAY ME.,1G3
sub69210-33120
main69210-33120-B2i201108-201803
DK. STEEL MC.,1H2
sub69210-33120
main69210-33120-B6i201409-201704
TSUTSUMI SFX R4,GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
TSUTSUMI,SFX,N4,GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
sub69210-33120
main69210-33120-B6i201409-201704
GRAY M.M.,1H1
sub69210-33120
main69210-33120-C0i201108-201803
ATTITUDE BLACK MC.,218
sub69210-33120
main69210-33120-D0i201209-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201409-201704
TSUTSUMI,SFX,N4,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201409-201704
TSUTSUMI SFX R4,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201704
RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201409
*SES&*AFLS&HID,RED M.M.,3R3
sub69210-33120
main69210-33120-D0i201209-201409
*SES&*AFLS&*NS&*JA&HID,RED M.M.,3R3
sub69210-33120
main69210-33120-E1i201108-201311
*SES&*AFLS&*NS&*JA&HID,BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
*SES&*AFLS&HID,BEIGE ME.,4T8
sub69210-33120
main69210-33120-E1i201108-201311
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
sub69210-33120
main69210-33120-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-E6i201704-201803
DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-E6i201704-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,DK. BROWN M.M.,4U3
sub69210-33120
main69210-33120-G0i201108-201309
*SES&*AFLS&*NS&*JA&HID,OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
OLIVE M.M.,6T7
sub69210-33120
main69210-33120-G0i201108-201309
*SES&*AFLS&HID,OLIVE M.M.,6T7
sub69210-33120
main69210-33120-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201409-201704
TSUTSUMI SFX R4,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201409-201704
TSUTSUMI,SFX,N4,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
*SES&*AFLS&*NS&*JA&HID,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J2i201108-201409
*SES&*AFLS&HID,TRUE BLUE M.M.,8W1
sub69210-33120
main69210-33120-J4i201309-201409
*SES&*AFLS&*NS&*JA&HID,DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
*SES&*AFLS&HID,DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J4i201309-201409
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
sub69210-33120
main69210-33120-J9i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
TSUTSUMI SFX R4,DK.BLUE M.M.,8W7
sub69210-33120
main69210-33120-J9i201409-201704
TSUTSUMI,SFX,N4,DK.BLUE M.M.,8W7
sub69210-33120
main69211-52100-A0i201108-201803
SUPER WHITE 2,040
sub69211-52100
main69211-52100-A1i201108-201803
WHITE PEARL CS.,070
sub69211-52100
main69211-52100-B0i201108-201803
SILVER ME.,1F7
sub69211-52100
main69211-52100-B1i201108-201411
GRAY ME.,1G3
sub69211-52100
main69211-52100-B5i201108-201803
DK. STEEL MC.,1H2
sub69211-52100
main69211-52100-B8i201409-201704
GRAY M.M.,1H1
sub69211-52100
main69211-52100-C1i201108-201803
ATTITUDE BLACK MC.,218
sub69211-52100
main69211-52100-D4i201209-201704
RED M.M.,3R3
sub69211-52100
main69211-52100-E0i201704-201803
DK. BROWN M.M.,4U3
sub69211-52100
main69211-52100-E2i201108-201311
BEIGE ME.,4T8
sub69211-52100
main69211-52100-G0i201108-201309
OLIVE M.M.,6T7
sub69211-52100
main69211-52100-J2i201108-201704
TRUE BLUE M.M.,8W1
sub69211-52100
main69211-52100-J4i201309-201409
DK.BLUE MC.,8S6
sub69211-52100
main69211-52100-R0i201409-201704
DK.BLUE M.M.,8W7
sub69211-52100
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-33030i201409-201704
main69241-52020i201108-201411
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-33040i201409-201704
main69242-52030i201108-201411
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-47010-C0i201108-201803
BLACK,TRIM0#,2#
main69283-47010-C0i201411-201803
BLACK,TRIM0#,2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-47010-C0i201108-201803
BLACK,TRIM0#,2#
main69284-47010-C0i201411-201803
BLACK,TRIM0#,2#,4#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201108-201704
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201108-201704
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-33091i201108-201704
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-33091i201108-201704
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201108-201704
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i201108-201704
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-33080i201108-201704
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-33080i201108-201704
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-33070i201108-201704
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-33070i201108-201704
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020

33 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
