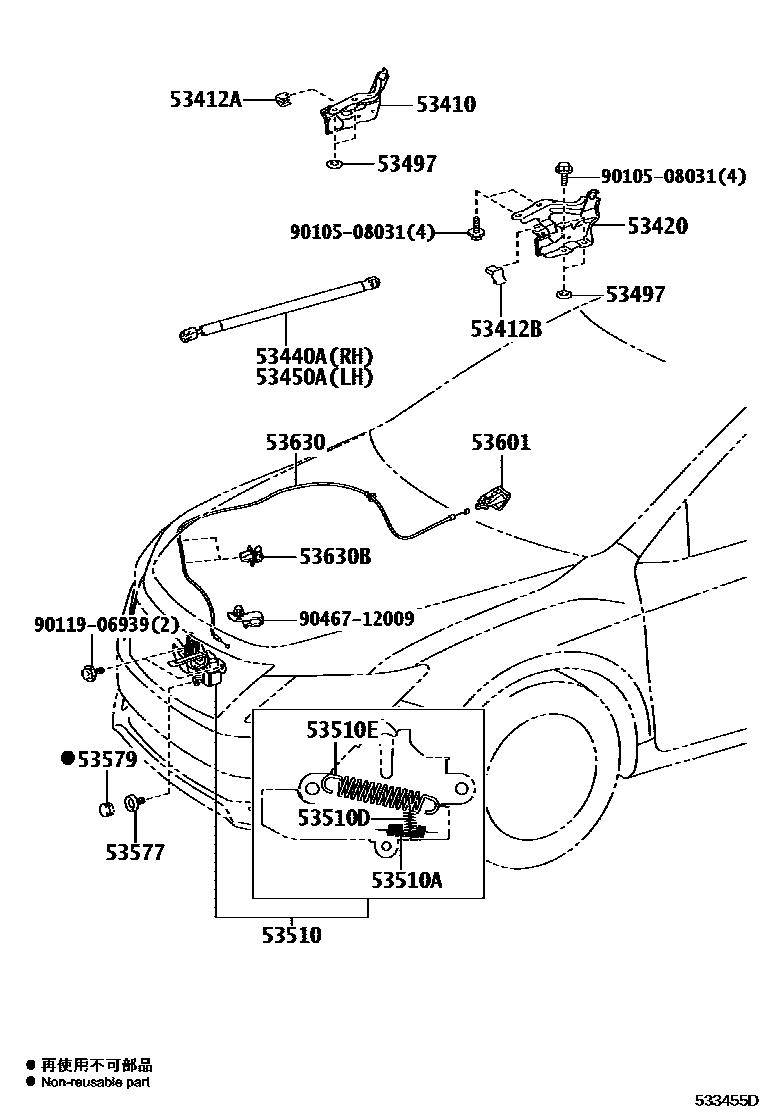

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-33240iASV50,AVV50,GSV50..JPP201108-201409

53412ACUSHION, HOOD HINGE SEAT RH

main53412-33090iASV50,AVV50,GSV50..JPP201108-201409

53412BCUSHION, HOOD HINGE SEAT LH

main53412-33100iASV50,AVV50,GSV50..JPP201108-201409

53420HINGE ASSY, HOOD, LH

main53420-33240iASV50,AVV50,GSV50..JPP201108-201409

53440ASUPPORT ASSY, HOOD, RH

main53440-06110iASV50,AVV50,GSV50..JPP201108-201409

53450ASUPPORT ASSY, HOOD, LH

main53450-06100iASV50,AVV50,GSV50..JPP201108-201409

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iASV50,AVV50,GSV50..JPP201108-201409

T=2.0

main53497-42010×2iASV5#,GSV50..RUP201409

T=0.5

53510LOCK ASSY, HOOD

main53510-33350iASV50,AVV50..RHD201108-201409

main53510-33370iACV51,ASV50,GSV50..RUP201108-201411

main53510-33450iASV50,AVV50..RHD201411-201704

main53510-33470iASV5#,GSV50..RUP201411

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASV50,AVV50,GSV50..JPP201108-201409

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASV50,AVV50,GSV50..JPP201108-201409

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iACV51,ASV50,GSV50..RUP201108-201411

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iASV5#,GSV50..RUP201409

53579CAP, HOOD LOCK NUT

main53579-50010iASV50,AVV50,GSV50..JPP201108-201409

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A3iACV51,ASV50,AVV50,GSV50201108-201411

SHELL,TRIM0#

main53601-52010-A8iASV5#,AVV50,GSV50201409-201803

FLAXEN,TRIM0#

main53601-52010-C0iASV51,GSV50;ASV50,AVV50..JPP201409-201612

BLACK,TRIM2#

main53601-52010-C1iASV50..RUP201612-201803

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33170iASV50,AVV50,GSV50..JPP201108-201409

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iASV50,AVV50,GSV50..JPP201108-201409

9010508031

main90105-08031

9011906939

main90119-06939

9046712009

main90467-12009

19 parts on this diagram · 1 diagram in section
