RADIATOR GRILLE

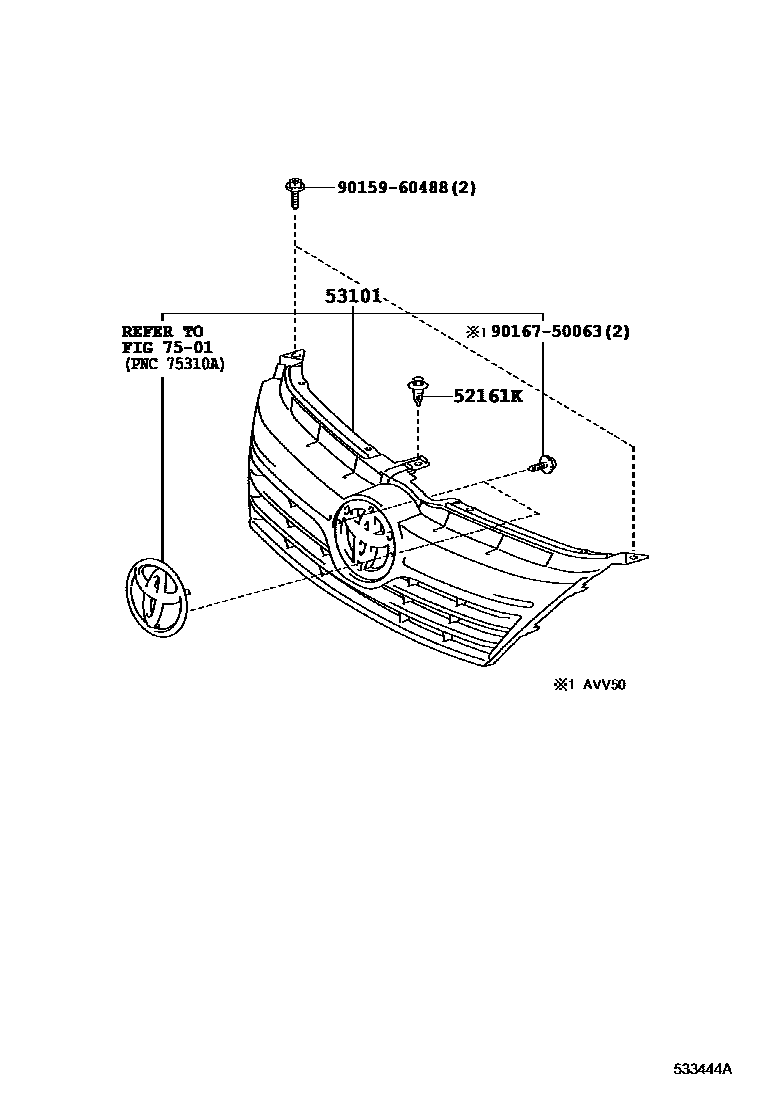

Parts diagram

52161KPIECE, FRONT BUMPER

main52161-16010i201108-201409

53101GRILLE SUB-ASSY, RADIATOR

main53101-06E40i201704-201803

PLATED; PLATED,SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4; PLATED,SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4

main53101-33360i201108-201409

PLATED

main53101-33370i201111-201405

PLATED

main53101-33371i201406-201411

PLATED

main53101-33380i201108-201409

PLATED

main53101-33470i201409-201510

PLATED

main53101-33471i201510-201601

PLATED

main53101-33472i201602-201704

PLATED

main53101-33490i201409-201510

PLATED

main53101-33491i201510-201601

PLATED

main53101-33492i201602-201704

PLATED

main53101-33510i201411-201512

PLATED

main53101-33511i201512-201601

PLATED

main53101-33512i201602-201704

PLATED

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9015960488

main90159-60488

9016750063

main90167-50063

5 parts on this diagram · 3 diagrams in section
