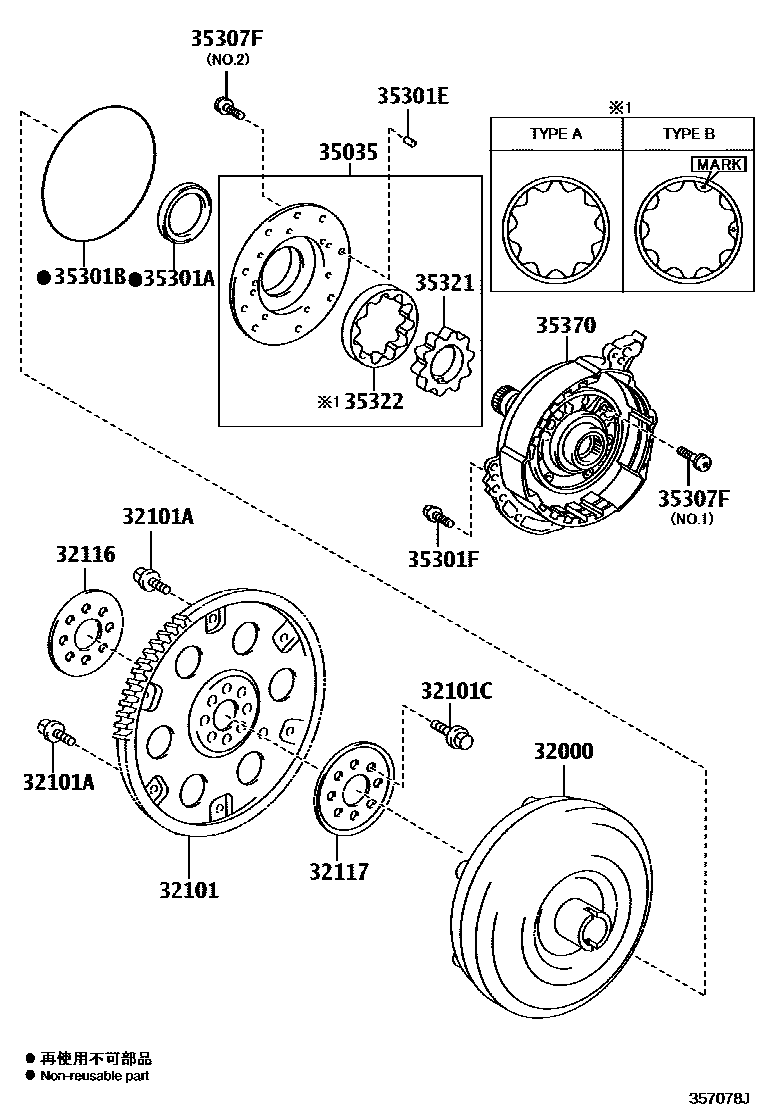

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(L)
(J)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4; *9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*12-1.25PX22-16
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
(L)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
REFER TO PNC 35322
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
NO.1
NO.2
NO.1
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
T=11.567,MARK 1
T=11.567,MARK 2
T=11.567,MARK 3
T=11.567,MARK 4
T=11.567,MARK 5
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=11.567,MARK 1
T=11.567,MARK 2
T=11.567,MARK 3
T=11.567,MARK 4
T=11.567,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
T=11.567,MARK 1
T=11.567,MARK 2
T=11.567,MARK 3,TYPE A:REFER ILLUST.
T=11.567,MARK 4
T=11.567,MARK 5
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=11.567,MARK 1
T=11.567,MARK 2
T=11.567,MARK 3
T=11.567,MARK 4
T=11.567,MARK 5,TYPE B:REFER ILLUST.
35370SHAFT ASSY, STATOR
REFER TO PNC 35322
