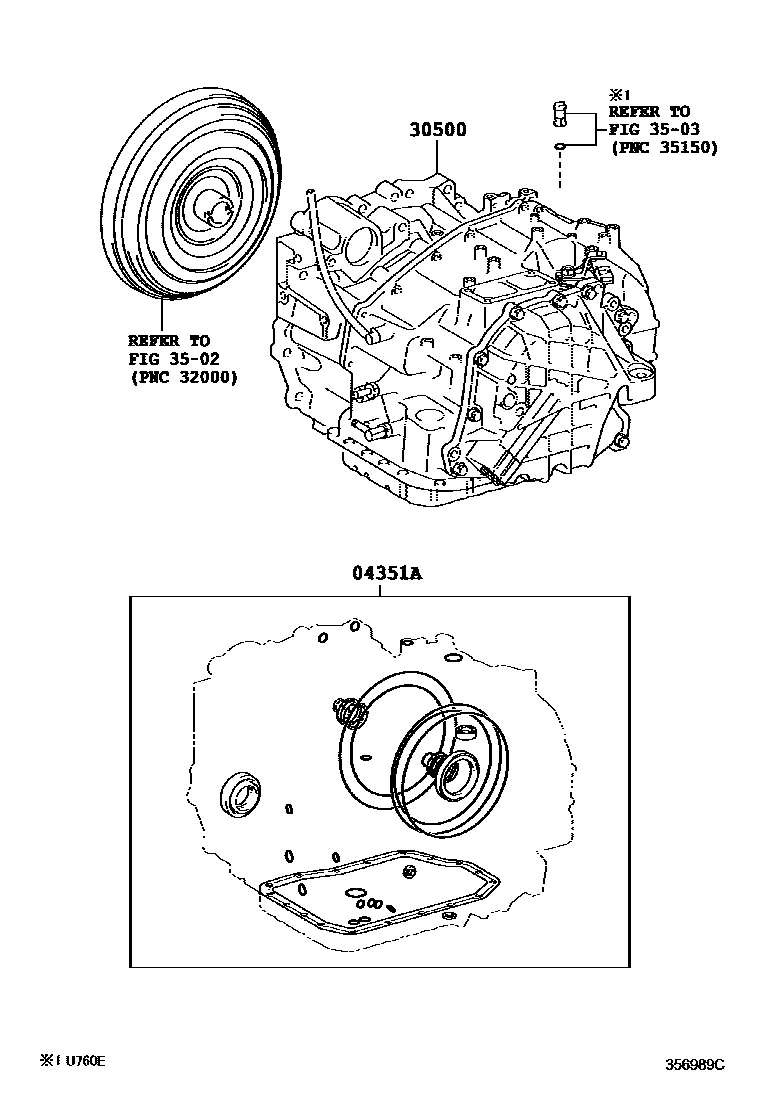

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U660E,U760E 0002 1U761E 0003 1U241E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33401iGSV50201108-201212

main04351-33402iGSV50..JPP201212-201409

main04351-33560iASV51201503

main04351-48151iACV51201208-201307

main04351-48154iACV51201307-201411

main04351-48182iASV50201108-201212

main04351-48183iASV50..JPP201409-201704

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33600iASV50201108-201403

U760E

main30500-33601iASV50..JPP201409-201410

U760E

main30500-33602iASV50..RUP201410-201411

U760E

main30500-33640iGSV50201108-201402

U660E

main30500-33641iGSV50..RUP201402-201411

U660E

main30500-33680iACV51201208-201411

U241E

main30500-33730iASV51201503

U761E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 3 diagrams in section
