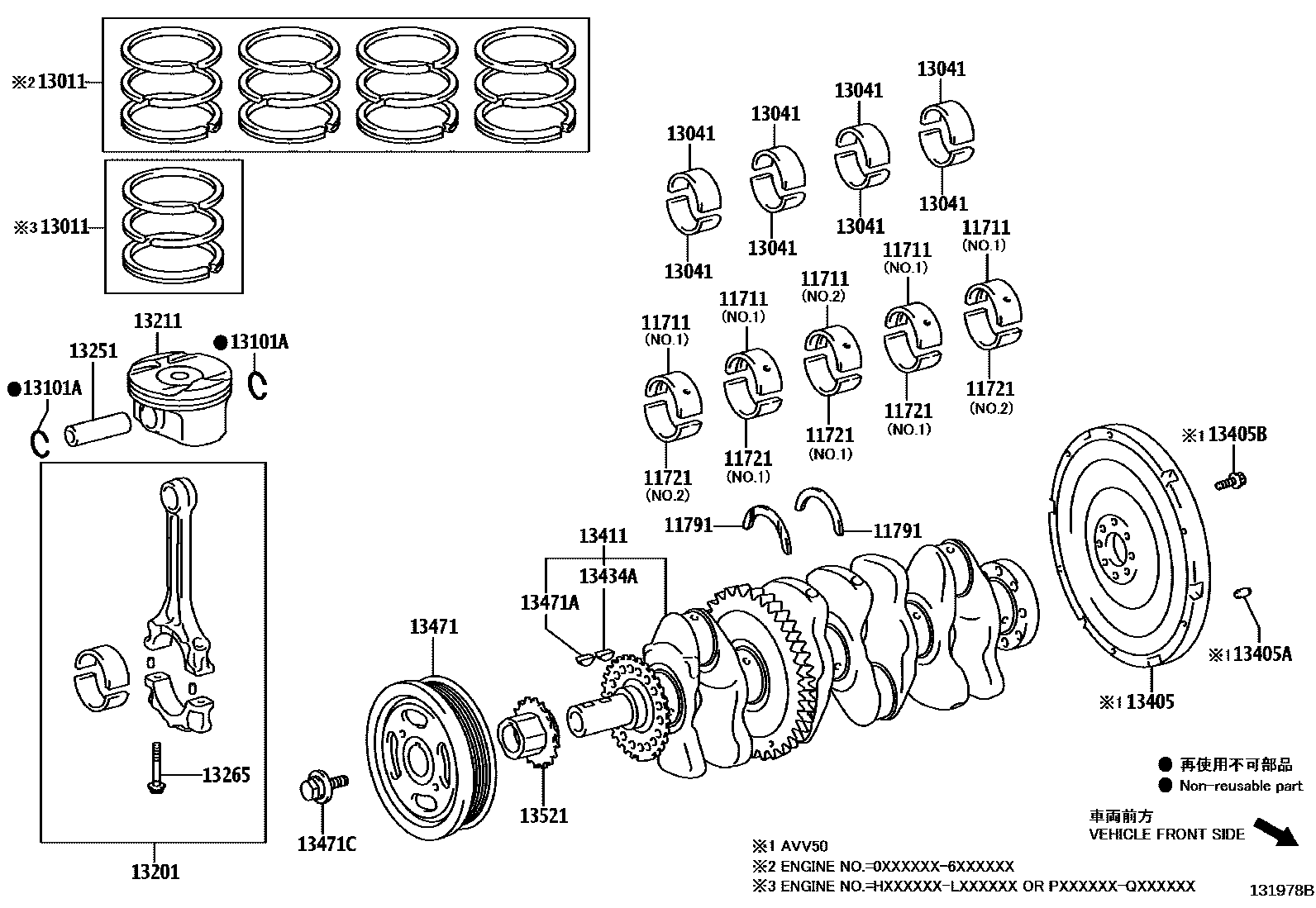

11711BEARING, CRANKSHAFT

main11071-31031-01×2i201108-201411

MARK1,NO.2,REFER R/M

main11071-31031-02×2i201409-201502

MARK2,NO.2,REFER R/M

main11071-31031-03×2i201409-201502

MARK3,NO.2,REFER R/M

main11071-31031-04×2i201108-201411

MARK4,NO.2,REFER R/M

main11071-31031-05×2i201108-201411

MARK5,NO.2,REFER R/M

main11071-31060-01×2i201503-201704

MARK 1,NO.2,REFER R/M

main11071-31060-02×2i201503-201704

MARK 2,NO.2,REFER R/M

main11071-31060-03×2i201503-201704

MARK 3,NO.2,REFER R/M

main11071-31060-04×2i201503-201704

MARK 4,NO.2,REFER R/M

main11071-31060-05×2i201503-201704

MARK 5,NO.2,REFER R/M

main11701-31090-01×2i201409-201502

MARK 1,NO.1,REFER R/M

main11701-31090-02×2i201409-201502

MARK 2,NO.1,REFER R/M

main11701-31090-03×2i201108-201411

MARK 3,NO.1,REFER R/M

main11701-31090-04×2i201409-201502

MARK 4,NO.1,REFER R/M

main11701-31090-05×2i201409-201502

MARK 5,NO.1,REFER R/M

main11701-31100-01×2i201503-201704

MARK 1,NO.1,REFER R/M

main11701-31100-02×2i201503-201704

MARK 2,NO.1,REFER R/M

main11701-31100-03×2i201503

MARK 3,NO.1,REFER R/M

main11701-31100-04×2i201503-201704

MARK 4,NO.1,REFER R/M

main11701-31100-05×2i201503

MARK 5,NO.1,REFER R/M

main11711-0H041-01×5i201208-201211

MARK 1,REFER REPAIR MANUAL

main11711-0H041-02×5i201208-201211

MARK 2,REFER REPAIR MANUAL

main11711-0H041-03×5i201208-201211

MARK 3,REFER REPAIR MANUAL

main11711-0H041-04×5i201208-201211

MARK 4,REFER REPAIR MANUAL

main11711-0V020-01×5i201306-201307

MARK 1,NO.1,2 *347REFER R/M

main11711-0V020-02×5i201306-201307

MARK 2,NO.1,2 *347REFER R/M

main11711-0V020-03×5i201306-201307

MARK 3,NO.1,2 *347REFER R/M

main11711-0V020-04×5i201306-201307

MARK 4,NO.1,2 *347REFER R/M

main11711-0V040-01×5i201411

MARK 1,NO.1,2 REFER R/M

main11711-0V040-02×5i201307-201411

MARK 2,NO.1,2 *347REFER R/M

main11711-0V040-03×5i201411

MARK 3,NO.1,2 REFER R/M

main11711-0V040-04×5i201307-201411

MARK 4,NO.1,2 *347REFER R/M

main11711-0V050-01×5i201711

MARK 1,(L),REFER R/M

main11711-0V050-02×5i201711

MARK 2,(L),REFER R/M

main11711-0V050-03×5i201711

MARK 3,(L),REFER R/M

main11711-0V050-04×5i201711

MARK 4,(L),REFER R/M

main11711-36020-01×4i201108-201202

MARK 1,NO.1,2 *107REFER R/M; MARK 1,NO.1,REFER R/M

main11711-36020-02×4i201108-201202

MARK 2,NO.1,2 *107REFER R/M; MARK 2,NO.1,REFER R/M

main11711-36020-03×5i201108-201202

MARK 3,NO.1,2 *107REFER R/M; MARK 3,NO.1,REFER R/M

main11711-36020-04×4i201108-201202

MARK 4,NO.1,2 *107REFER R/M; MARK 4,NO.1,REFER R/M

main11711-36030-01i201108-201202

MARK 1,NO.2,REFER R/M

main11711-36030-02i201108-201202

MARK 2,NO.2,REFER R/M

main11711-36030-03i201108-201202

MARK 3,NO.2,REFER R/M

main11711-36030-04i201108-201202

MARK 4,NO.2,REFER R/M

main11711-36040-01i201409-201704

MARK 1,NO.2,REFER R/M

main11711-36040-02i201409-201704

MARK 2,NO.2,REFER R/M

main11711-36040-03×5i201503-201711

MARK 3,REFER REPAIR MANUAL

main11711-36040-04i201208-201409

MARK 4,NO.2,REFER R/M

main11711-36050-01×4i201409-201704

MARK 1,NO.1,2 REFER R/M; MARK 1,NO.1,REFER R/M

main11711-36050-02×5i201202-201409

MARK 2,NO.1,2 *107REFER R/M; MARK 2,NO.1,REFER R/M

main11711-36050-03×4i201409-201704

MARK 3,NO.1,2 REFER R/M; MARK 3,NO.1,REFER R/M

main11711-36050-04×4i201409-201704

MARK 4,NO.1,2 REFER R/M; MARK 4,NO.1,REFER R/M

main11711-36060-01i201202-201208

MARK 1,NO.2,REFER R/M

main11711-36060-02i201202-201208

MARK 2,NO.2,REFER R/M

main11711-36060-03i201202-201208

MARK 3,NO.2,REFER R/M

main11711-36060-04i201202-201208

MARK 4,NO.2,REFER R/M

11721BEARING, CRANKSHAFT, NO.2

main11721-0H041-01×5i201208-201211

MARK 1,REFER REPAIR MANUAL

main11721-0H041-02×5i201208-201211

MARK 2,REFER REPAIR MANUAL

main11721-0H041-03×5i201208-201211

MARK 3,REFER REPAIR MANUAL

main11721-0H041-04×5i201208-201211

MARK 4,REFER REPAIR MANUAL

main11721-0V020-01×5i201306-201307

MARK 1,NO.1,2 *347REFER R/M

main11721-0V020-02×5i201306-201307

MARK 2,NO.1,2 *347REFER R/M

main11721-0V020-03×5i201306-201307

MARK 3,NO.1,2 *347REFER R/M

main11721-0V020-04×5i201306-201307

MARK 4,NO.1,2 *347REFER R/M

main11721-0V040-01×5i201307-201411

MARK 1,NO.1,2 *347REFER R/M

main11721-0V040-02×5i201307-201411

MARK 2,NO.1,2 *347REFER R/M

main11721-0V040-03×5i201411

MARK 3,NO.1,2 REFER R/M

main11721-0V040-04×5i201307-201411

MARK 4,NO.1,2 *347REFER R/M

main11721-0V050-01×5i201711

MARK 1,(L),REFER R/M

main11721-0V050-02×5i201711

MARK 2,(L),REFER R/M

main11721-0V050-03×5i201711

MARK 3,(L),REFER R/M

main11721-0V050-04×5i201711

MARK 4,(L),REFER R/M

main11721-36020-01×3i201108-201202

MARK 1,NO.1,2 *107REFER R/M; MARK 1,NO.1,REFER R/M

main11721-36020-02×3i201108-201202

MARK 2,NO.1,2 *107REFER R/M; MARK 2,NO.1,REFER R/M

main11721-36020-03×5i201108-201202

MARK 3,NO.1,2 *107REFER R/M; MARK 3,NO.1,REFER R/M

main11721-36020-04×3i201108-201202

MARK 4,NO.1,2 *107REFER R/M; MARK 4,NO.1,REFER R/M

main11721-36030-01×2i201108-201202

MARK 1,NO.2,REFER R/M

main11721-36030-02×2i201108-201202

MARK 2,NO.2,REFER R/M

main11721-36030-03×2i201108-201202

MARK 3,NO.2,REFER R/M

main11721-36030-04×2i201108-201202

MARK 4,NO.2,REFER R/M

main11721-36040-01×5i201711

MARK 1,(J),REFER R/M

main11721-36040-02×2i201409-201704

MARK 2,NO.2,REFER R/M

main11721-36040-03×2i201409-201704

MARK 3,NO.2,REFER R/M

main11721-36040-04×5i201711

MARK 4,(J),REFER R/M

main11721-36050-01×3i201409-201704

MARK 1,NO.1,2 REFER R/M; MARK 1,NO.1,REFER R/M

main11721-36050-02×3i201202-201409

MARK 2,NO.1,2 *107REFER R/M; MARK 2,NO.1,REFER R/M

main11721-36050-03×5i201202-201409

MARK 3,NO.1,2 *107REFER R/M; MARK 3,NO.1,REFER R/M

main11721-36050-04×3i201409-201704

MARK 4,NO.1,2 REFER R/M; MARK 4,NO.1,REFER R/M

main11721-36060-01×2i201202-201208

MARK 1,NO.2,REFER R/M

main11721-36060-02×2i201202-201208

MARK 2,NO.2,REFER R/M

main11721-36060-03×2i201202-201208

MARK 3,NO.2,REFER R/M

main11721-36060-04×2i201202-201208

MARK 4,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0H030×2i201208-201411

STD

main11791-0V020×2i201306-201411

STD,*347

main11791-0V030×2i201711

STD,(L)

main11791-36010×2i201108-201408

STD; STD,*107

main11791-36020×2i201408-201409

STD; STD,*107

13011RING SET, PISTON

main13011-0H080i201310-201411

STD,(L)

main13011-0V020×4i201306-201411

STD,*347

main13011-0V070×4i201411

STD

main13011-0V080×4i201503

STD

main13011-28210i201208-201310

STD

main13011-31150i201409-201412

STD

main13011-31151i201412-201704

STD

main13011-36030i201108-201212

STD,*107

main13011-36070i201212-201401

STD,*107

main13011-36071i201402-201407

STD

main13011-36120i201409

STD

13041BEARING, CONNECTING ROD

main13041-31070-01×6i201409-201502

MARK 1,REFER R/M

main13041-31070-02×6i201409-201502

MARK 2,REFER R/M

main13041-31070-03×6i201108-201411

MARK 3,REFER R/M

main13041-31070-04×6i201409-201502

MARK 4,REFER R/M

main13041-31100-01×6i201503-201506

MARK 1,REFER R/M

main13041-31100-02×6i201503-201506

MARK 2,REFER R/M

main13041-31100-03×6i201503-201506

MARK 3,REFER R/M

main13041-31100-04×6i201503-201506

MARK 4,REFER R/M

main13041-31110-01×6i201507

MARK 1,REFER R/M

main13041-31110-02×6i201507-201704

MARK 2,REFER R/M

main13041-31110-03×6i201507-201704

MARK 3,REFER R/M

main13041-31110-04×6i201507

MARK 4,REFER R/M

main13281-0H041-01×8i201208-201411

MARK 1,REFER REPAIR MANUAL

main13281-0H041-02×8i201208-201411

MARK 2,REFER REPAIR MANUAL

main13281-0H041-03×8i201208-201411

MARK 3,REFER REPAIR MANUAL

main13281-0V020-01×8i201411-201604

MARK 1,REFER REPAIR MANUAL

main13281-0V020-02×8i201306-201411

MARK 2,*347:REFER R/M

main13281-0V020-03×8i201306-201411

MARK 3,*347:REFER R/M

main13281-0V021-01×8i201605

MARK 1,REFER REPAIR MANUAL

main13281-0V021-02×8i201605

MARK 2,REFER REPAIR MANUAL

main13281-0V021-03×8i201605

MARK 3,REFER REPAIR MANUAL

main13281-0V030-01×8i201711

MARK 1,(L),REFER R/M

main13281-0V030-02×8i201711

MARK 2,(L),REFER R/M

main13281-0V030-03×8i201711

MARK 3,(L),REFER R/M

main13281-36020-01×8i201108-201312

MARK 1,*107:REFER R/M

main13281-36020-02×8i201108-201312

MARK 2,*107:REFER R/M

main13281-36020-03×8i201108-201312

MARK 3,*107:REFER R/M

main13281-36021-01×8i201409-201704

MARK 1,REFER REPAIR MANUAL

main13281-36021-02×8i201409-201704

MARK 2,REFER REPAIR MANUAL

main13281-36021-03×8i201409-201704

MARK 3,REFER REPAIR MANUAL

main13281-36030-01×8i201503-201711

MARK 1,REFER REPAIR MANUAL

main13281-36030-02×8i201711

MARK 2,(J),REFER R/M

main13281-36030-03×8i201711

MARK 3,(J),REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-31092-A0×6i201108-201409

STD,MARK A,REFER R/M

main13101-31092-B0×6i201108-201411

STD,MARK B,REFER R/M

main13101-31092-C0×6i201409

STD,MARK C,REFER R/M

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i201409

13201ROD SUB-ASSY, CONNECTING

main13201-09781-A0×4i201208-201411

MARK A,(L),REFER R/M

main13201-09781-B0×4i201208-201411

MARK B,(L),REFER R/M

main13201-09781-C0×4i201208-201411

MARK C,(L),REFER R/M

main13201-09A80-A0×4i201411-201605

MARK A,REFER REPAIR MANUAL

main13201-09A80-B0×4i201306-201411

MARK B,*347:REFER R/M

main13201-09A80-C0×4i201411-201605

MARK C,REFER REPAIR MANUAL

main13201-09A81-A0×4i201605

MARK A,REFER REPAIR MANUAL

main13201-09A81-B0×4i201605

MARK B,REFER REPAIR MANUAL

main13201-09A81-C0×4i201605

MARK C,REFER REPAIR MANUAL

main13201-09C00-A0×4i201503

MARK A,REFER REPAIR MANUAL

main13201-09C00-B0×4i201503

MARK B,REFER REPAIR MANUAL

main13201-09C00-C0×4i201503

MARK C,REFER REPAIR MANUAL

main13201-29686-A0×4i201208-201411

MARK A,(J),REFER R/M

main13201-29686-B0×4i201208-201411

MARK B,(J),REFER R/M

main13201-29686-C0×4i201208-201411

MARK C,(J),REFER R/M

main13201-39135-A0×6i201108-201409

MARK A,REFER R/M

main13201-39135-B0×6i201108-201411

MARK B,REFER R/M

main13201-39135-C0×6i201108-201409

MARK C,REFER R/M

main13201-39137-A0×6i201503-201507

MARK A,REFER R/M

main13201-39137-B0×6i201503-201507

MARK B,REFER R/M

main13201-39137-C0×6i201503-201507

MARK C,REFER R/M

main13201-39225-A0×4i201108-201401

MARK A,*107:REFER R/M

main13201-39225-B0×4i201108-201401

MARK B,*107:REFER R/M

main13201-39225-C0×4i201108-201401

MARK C,*107:REFER R/M

main13201-39226-A0×4i201401-201411

MARK A,*107:REFER R/M

main13201-39226-B0×4i201409-201704

MARK B,REFER REPAIR MANUAL

main13201-39226-C0×4i201409-201704

MARK C,REFER REPAIR MANUAL

main13201-39305-A0×6i201507

MARK A,REFER R/M

main13201-39305-B0×6i201507

MARK B,REFER R/M

main13201-39305-C0×6i201507

MARK C,REFER R/M

13211PISTON

main13211-0H070-A0×4i201211-201411

MARK A,REFER REPAIR MANUAL

main13211-0H070-B0×4i201211-201411

MARK B,REFER REPAIR MANUAL

main13211-0H070-C0×4i201211-201411

MARK C,REFER REPAIR MANUAL

main13211-0V040-A0×4i201306-201411

MARK A,*347:REFER R/M

main13211-0V040-B0×4i201306-201411

MARK B,*347:REFER R/M

main13211-0V040-C0×4i201306-201411

MARK C,*347:REFER R/M

main13211-0V080-A0×4i201503

MARK A,REFER REPAIR MANUAL

main13211-0V080-B0×4i201503

MARK B,REFER REPAIR MANUAL

main13211-0V080-C0×4i201503

MARK C,REFER REPAIR MANUAL

main13211-0V090-A0×4i201411

MARK A,REFER REPAIR MANUAL

main13211-0V090-B0×4i201411

MARK B,REFER REPAIR MANUAL

main13211-0V090-C0×4i201411

MARK C,REFER REPAIR MANUAL

main13211-28130-A0×4i201208-201211

MARKA,REFER REPAIR MANUAL

main13211-28130-B0×4i201208-201211

MARKB,REFER REPAIR MANUAL

main13211-28130-C0×4i201208-201211

MARKC,REFER REPAIR MANUAL

main13211-36032-A0×4i201108-201407

MARK A,*107:REFER R/M

main13211-36032-B0×4i201108-201407

MARK B,*107:REFER R/M

main13211-36032-C0×4i201108-201407

MARK C,*107:REFER R/M

main13211-36060-A0×4i201108-201407

MARK A,REFER REPAIR MANUAL

main13211-36060-B0×4i201108-201407

MARK B,REFER REPAIR MANUAL

main13211-36060-C0×4i201108-201407

MARK C,REFER REPAIR MANUAL

main13211-36090-A0×4i201407-201411

MARK A,*107,MARK 36090,*RRM

main13211-36090-B0×4i201407-201411

MARK B,*107,MARK 36090,*RRM

main13211-36090-C0×4i201409-201704

MARK C,MARK 36090,*RRM

main13211-36100-A0×4i201409-201704

MARK A,REFER REPAIR MANUAL

main13211-36100-B0×4i201409-201704

MARK B,REFER REPAIR MANUAL

main13211-36100-C0×4i201409-201704

MARK C,REFER REPAIR MANUAL

main13211-36120-A0×4i201408-201411

MARK A,*107,MARK 0V030,*RRM

main13211-36120-B0×4i201409-201704

MARK B,MARK 0V030,*RRM

main13211-36120-C0×4i201409-201704

MARK C,MARK 0V030,*RRM

13251PIN, PISTON

main13251-0H040-A0×4i201306-201411

MARK A,*347:REFER R/M

main13251-0H040-B0×4i201208-201411

MARK B,REFER REPAIR MANUAL

main13251-0H040-C0×4i201411

MARK C,REFER REPAIR MANUAL

main13251-28020-A0×4i201108-201409

MARK A,REFER REPAIR MANUAL

main13251-28020-B0×4i201108-201411

MARK B,*107:REFER R/M

main13251-28020-C0×4i201108-201409

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-0V010×8i201709

(L)

main13265-28010×12i201409

main13265-31020×8i201409-201709

13405FLYWHEEL SUB-ASSY

main13451-36040i201108-201409

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i201108-201409

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12384×8i201108-201409

13411CRANKSHAFT

main13401-0H050i201208-201411

main13401-0V020i201306-201307

*347

main13401-0V021i201411

main13401-0V070i201503

main13401-31040i201409-201410

main13401-31041i201410-201704

main13401-36010i201108-201202

*107

main13401-36011i201202-201409

*107

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i201208-201411

main95161-30516i201108-201411

*107

13471PULLEY, CRANKSHAFT

main13470-0H030i201208-201411

main13470-0V030i201306-201411

*347

main13470-0V050i201503

main13470-31030i201409-201704

main13470-36010i201108-201411

*107

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i201208-201411

main95161-30516i201306-201411

*347

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i201108-201409

main90119-16020i201306-201411

*347

main90119-C0124i201208-201411

main90119-C0429i201702

(L)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0H050i201208-201411

main13521-0V020i201411

main13521-31041i201108-201409

main13521-36010i201409-201704

CRANKSHAFT & PISTON
