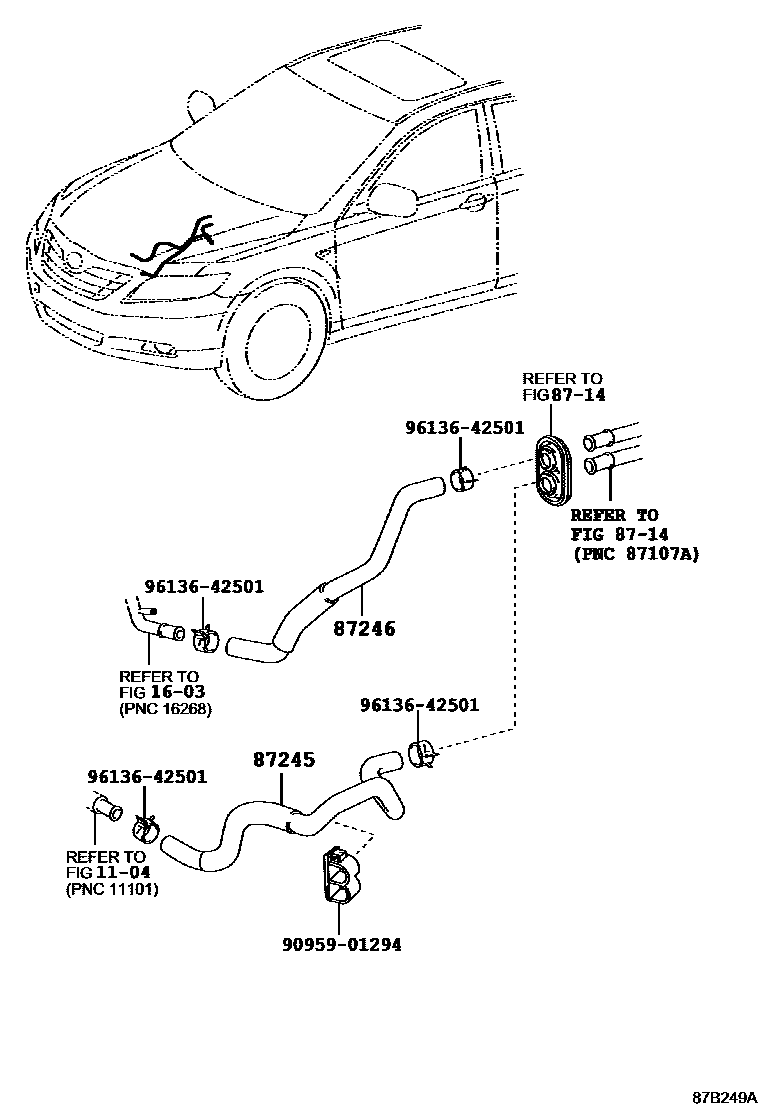

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-33330iACV40200601-201109

main87245-33480iGSV40200601-201109

87246HOSE, HEATER WATER, OUTLET

main87245-33490iGSV40200601-201109

main87245-33540iACV40200601-201109

9095901294

main90959-01294

9613642501

main96136-42501

7 parts on this diagram · 2 diagrams in section
