HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

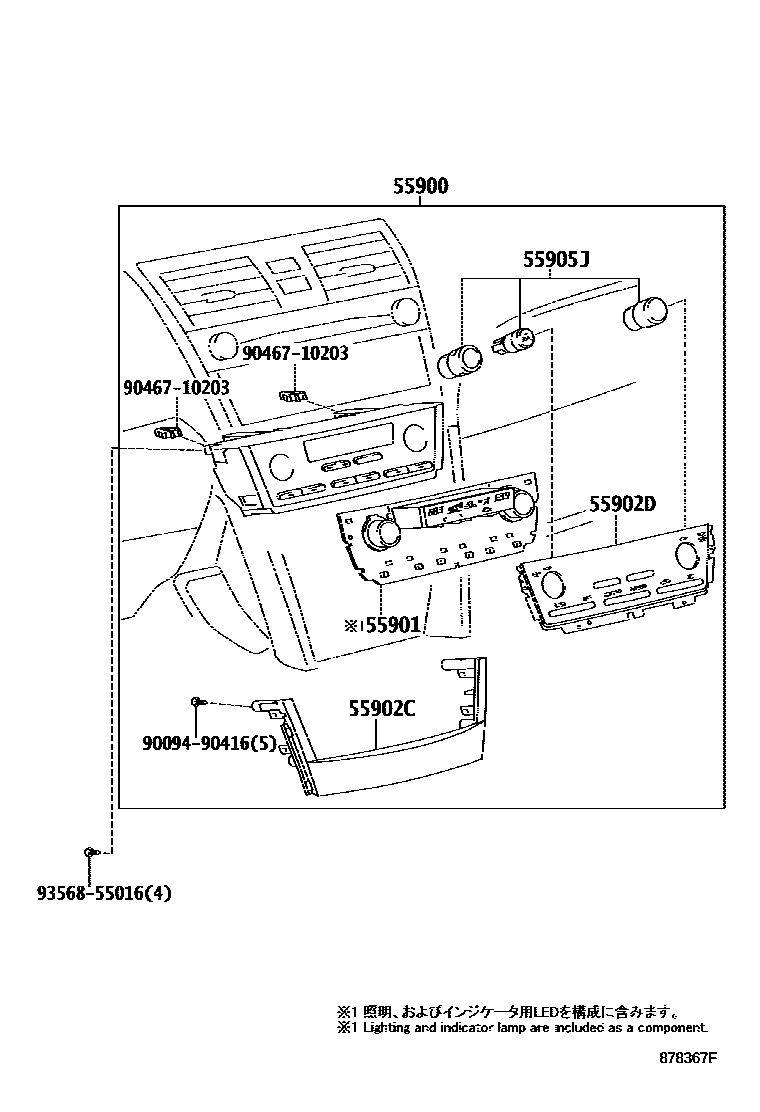

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33B31iACV40,GSV40..LHD200601-200702

main55900-33B32iACV40,GSV40..LHD200703-200903

main55900-33B41iACV40,GSV40..RHD200601-200702

main55900-33B42iACV40,GSV40..RHD200703-200901

main55900-33C60iACV40,GSV40..LHD200901-201109

main55900-33C70iACV40,GSV40..RHD200901-200906

main55900-33C71iACV40,GSV40..RHD200907-201108

55901BASE SUB-ASSY, HEATER CONTROL

main55901-33040iACV40,GSV40..LHD200601-200703

main55901-33050iACV40,GSV40..RHD200601-200703

main55901-33110iACV40,GSV40..LHD200703-200903

main55901-33120iACV40,GSV40..RHD200703-200901

main55901-33180iACV40,GSV40..LHD200901-201109

main55901-33190iACV40,GSV40..RHD200907-201108

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33820iACV40,GSV40200901-201109

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-33830iACV40,GSV40..LHD200601-200702

main55902-33840iACV40,GSV40..RHD200703-200903

main55902-33890iACV40,GSV40..RHD200907-201108

55905JKNOB SUB-ASSY, CONTROL

main55905-33220iACV40,GSV40200601-200703

main55905-33240iACV40,GSV40200703-200903

9009490416

main90094-90416

9046710203

main90467-10203

9356855016

main93568-55016

8 parts on this diagram · 5 diagrams in section
