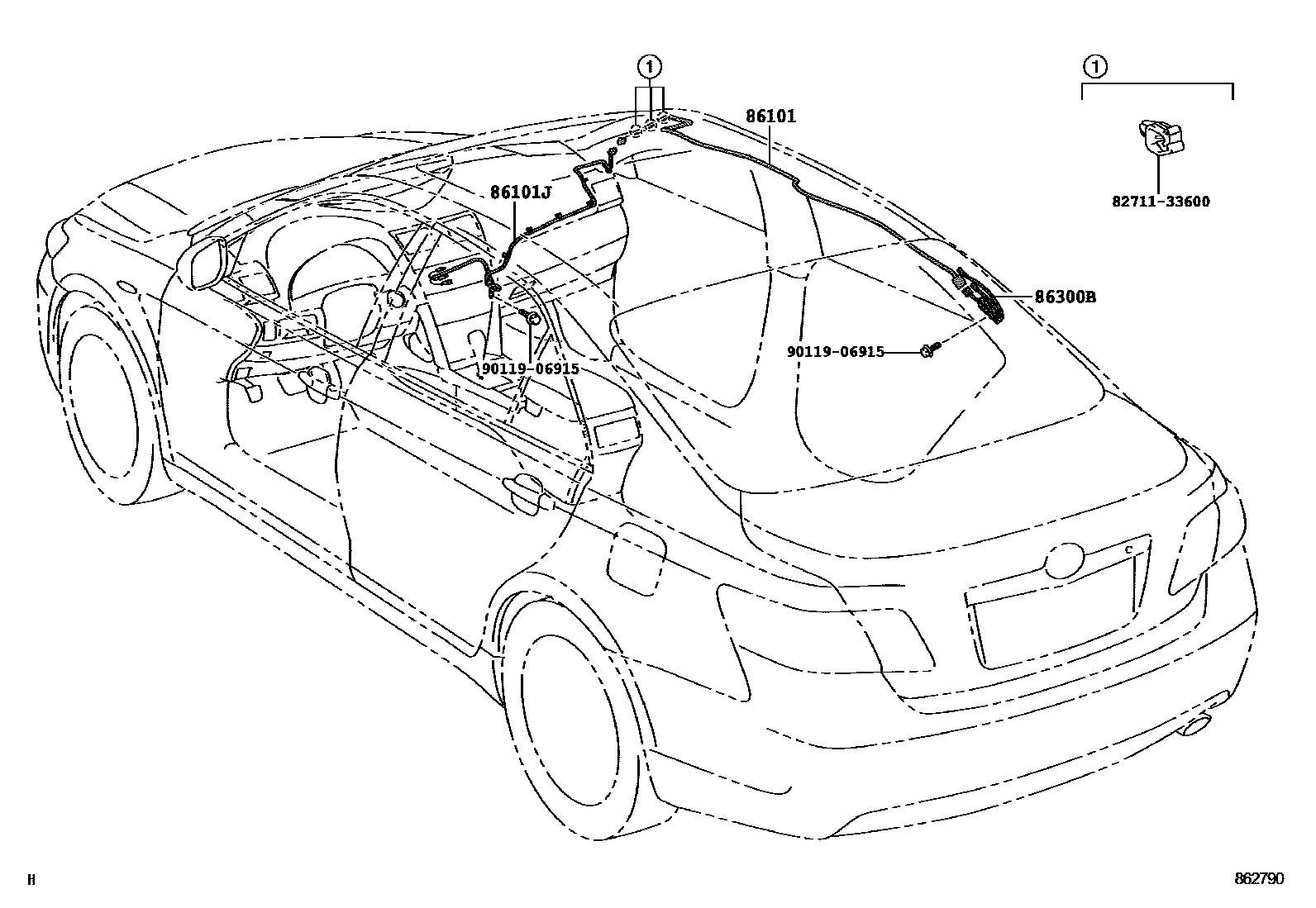

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-33560iACV40,GSV40200901-200912

main86101-33561iACV40,GSV40201001-201109

main86101-33540iACV40,GSV40..LE,XLE200601-200903

MOON ROOF-WITH

main86101-33541iACV40,GSV40..LE,XLE201001-201108

MOON ROOF-WITH

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-33580iACV40,GSV40..LHD200601-200903

main86101-33620iACV40,GSV40..RHD200901-200912

main86101-33621iACV40,GSV40..RHD201001-201108

main86101-33750supersedes 86101-33581iACV40,GSV40..COMF,PREM200903-200912

main86101-33751iACV40,GSV40..COMF,PREM201001-201109

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-33280iACV40,GSV40..COMF,PREM200903-201109

main86300-33300iACV40,GSV40200601-200711

main86300-33301iACV40,GSV40..LE,XLE200712-200903

8271133600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33600

9011906915

main90119-06915

5 parts on this diagram · 2 diagrams in section
