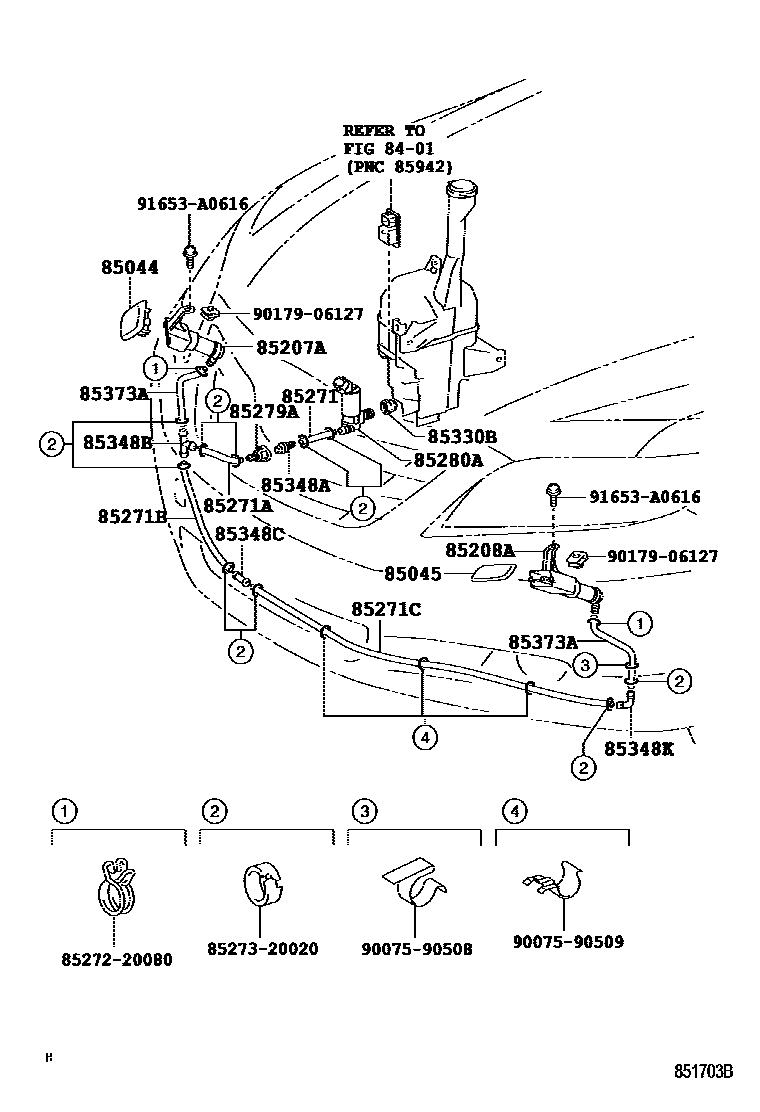

HEADLAMP CLEANER

0001 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-33070-A0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

SUPER WHITE 2,040

main85044-33070-B0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

SILVER ME.,1F7

main85044-33070-B1iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

GRAY ME.,1G3

main85044-33070-C0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

BLACK,202

main85044-33070-D0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

RED M.M.,3R3

main85044-33070-E0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

BEIGE ME.,4T8

main85044-33070-G0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

DK.GREEN MC.,6V4

main85044-33070-H0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

TURQUOISE M.M.,776

main85044-33070-J0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

DK.BLUE MC.,8T5

main85044-33090-A0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

SUPER WHITE 2,040

main85044-33090-B1iACV40,GSV40..ATM..(COMF,PREM)200712-200903

GRAY ME.,1G3

main85044-33090-B2iACV40,GSV40..ATM..(COMF,PREM)200712-200903

SILVER ME.,1F7

main85044-33090-C0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

BLACK,202

main85044-33090-D0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

RED M.M.,3R3

main85044-33090-E0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

BEIGE M. M.,4Q2

main85044-33090-H0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

TURQUOISE M.M.,776

main85044-33090-J0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

LT.BLUE ME.,8S4

main85044-33090-J1iACV40,GSV40..ATM..(COMF,PREM)200712-200903

DK.BLUE MC.,8T5

main85044-33090-B0iACV40,GSV40200601-200707

HEAD LAMP CLEANER-WITH,SILVER ME.,1D4

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-33040-A0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

SUPER WHITE 2,040

main85045-33040-B1iACV40,GSV40..ATM..(COMF,PREM)200712-200903

GRAY ME.,1G3

main85045-33040-B2iACV40,GSV40..ATM..(COMF,PREM)200712-200903

SILVER ME.,1F7

main85045-33040-C0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

BLACK,202

main85045-33040-D0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

RED M.M.,3R3

main85045-33040-E0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

BEIGE M. M.,4Q2

main85045-33040-H0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

TURQUOISE M.M.,776

main85045-33040-J0iACV40,GSV40..ATM..(COMF,PREM)200712-200903

LT.BLUE ME.,8S4

main85045-33040-J1iACV40,GSV40..ATM..(COMF,PREM)200712-200903

DK.BLUE MC.,8T5

main85045-33060-A0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

SUPER WHITE 2,040

main85045-33060-B0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

SILVER ME.,1F7

main85045-33060-B1iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

GRAY ME.,1G3

main85045-33060-C0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

BLACK,202

main85045-33060-D0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

RED M.M.,3R3

main85045-33060-E0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

BEIGE ME.,4T8

main85045-33060-G0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

DK.GREEN MC.,6V4

main85045-33060-H0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

TURQUOISE M.M.,776

main85045-33060-J0iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

DK.BLUE MC.,8T5

main85045-33040-B0iACV40,GSV40200601-200707

HEAD LAMP CLEANER-WITH,SILVER ME.,1D4

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-33010iACV40,GSV40..ATM..(COMF,PREM)200712-200903

main85207-33060iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-33010iACV40,GSV40..ATM..(COMF,PREM)200712-200903

main85208-33060iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-16020iACV40,GSV40..ATM..(COMF,PREM)200712-200903

L=40

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-32180iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

L=70

main90445-14055iACV40,GSV40..ATM..(COMF,PREM)200712-200903

L=60

85271BHOSE, HEADLAMP CLEANER, NO.3

main85276-33060iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

L=1370

main85377-12380iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-20150iACV40,GSV40..ATM..(COMF,PREM)200712-200903

L=990

85279AJOINT, HEADLAMP CLEANER HOSE

main85279-33050iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-33040iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85287-53060iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

main85352-12010iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85379-89131iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85379-22080iACV40,GSV40..ATM..(COMF,PREM)200712-200903

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85271-12020×2iACV40,GSV40..ATM..(COMF,PREM)200712-200903

main85375-12510iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

NO.2

main85375-89133iACV40..RHD;ACV40,GSV40..COMF,PREM,XLE200901-201109

NO.1

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007590508

main90075-90508

9007590509

main90075-90509

9017906127

main90179-06127

91653A0616

main91653-A0616

23 parts on this diagram · 2 diagrams in section
