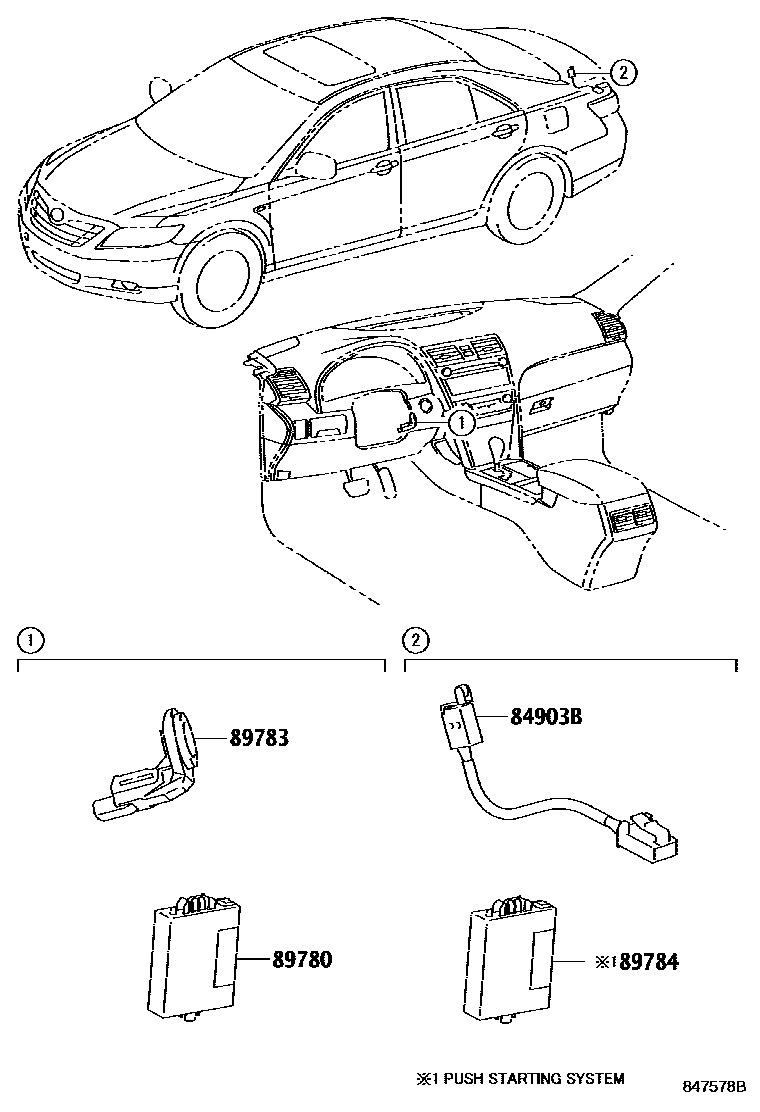

ANTI-THEFT DEVICE

0001 1 0002 1

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-33160iACV40,GSV40200601-200903

main84903-33180iGSV40200901-201109

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33170iACV40,GSV40200601-200903

main89780-33230iACV40201001-201109

P/N LABEL=8978033220

89783AMPLIFIER, TRANSPONDER KEY

main89783-71010iACV40,GSV40200601-200802

main89783-71011iACV40,GSV40200803-200903

main89783-71012iACV40201001-201104

main89783-71013iACV40201105-201109

89784COMPUTER, IMMOBILIZER CODE

main89784-33011iGSV40200901-201109

4 parts on this diagram · 2 diagrams in section
