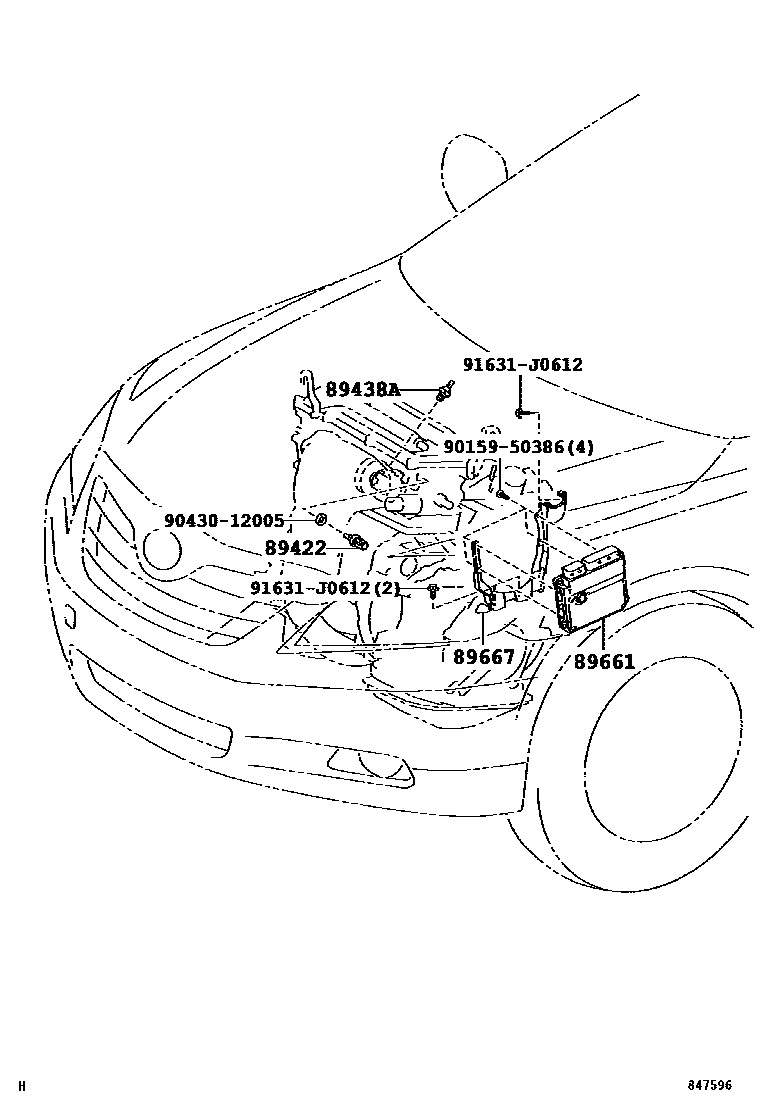

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iACV40200710-200803

(L)

main89422-33030iGSV40200601-201109

main89422-33030iACV40200601-200803

(J)

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iACV40,GSV40200601-201109

89661COMPUTER, ENGINE CONTROL

main89661-33A00iGSV40..PREM200712-200903

main89661-33B60iGSV40..XLE200601-201108

main89661-33C00iACV40..5F..COMF200712-200801

main89661-33C01iACV40..5F..COMF200801-200903

EXHAUST EMISSION CONTROL-EUROPE STEP4

main89661-33C01iACV40..5F..COMF200801-200903

RUSSIA SPEC

main89661-33C01iACV40..LHD..5F..LE200801-200903

ISRAEL SPEC

main89661-33C01iACV40..5F..COMF200903-201008

main89661-33C10iACV40..5FC..COMF200712-200801

main89661-33C11iACV40..LHD..5FC..LE200801-200903

RUSSIA SPEC

main89661-33C11iACV40..5FC..COMF200801-200903

ISRAEL SPEC

main89661-33C11iACV40..5FC..COMF200801-200903

EXHAUST EMISSION CONTROL-EUROPE STEP4

main89661-33C11iACV40..5FC..COMF200903-201008

main89661-33C20iACV40..5F200601-200712

main89661-33C21iACV40..5F..LE200801-201108

main89661-33C30iACV40..5FC200601-200712

main89661-33C31iACV40..5FC..LE200801-201108

main89661-33F10iGSV40..PREM200903-201008

main89661-33F80iACV40..5F..COMF201008-201109

main89661-33F90iACV40..5FC..COMF201008-201109

main89661-33J90iGSV40..PREM201008-201109

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40..LHD200601-201109

main89667-33170iGSV40..RHD200601-201108

main89667-33180iACV40200601-201109

9015950386

main90159-50386

9043012005

main90430-12005

91631J0612

main91631-J0612

7 parts on this diagram · 2 diagrams in section
