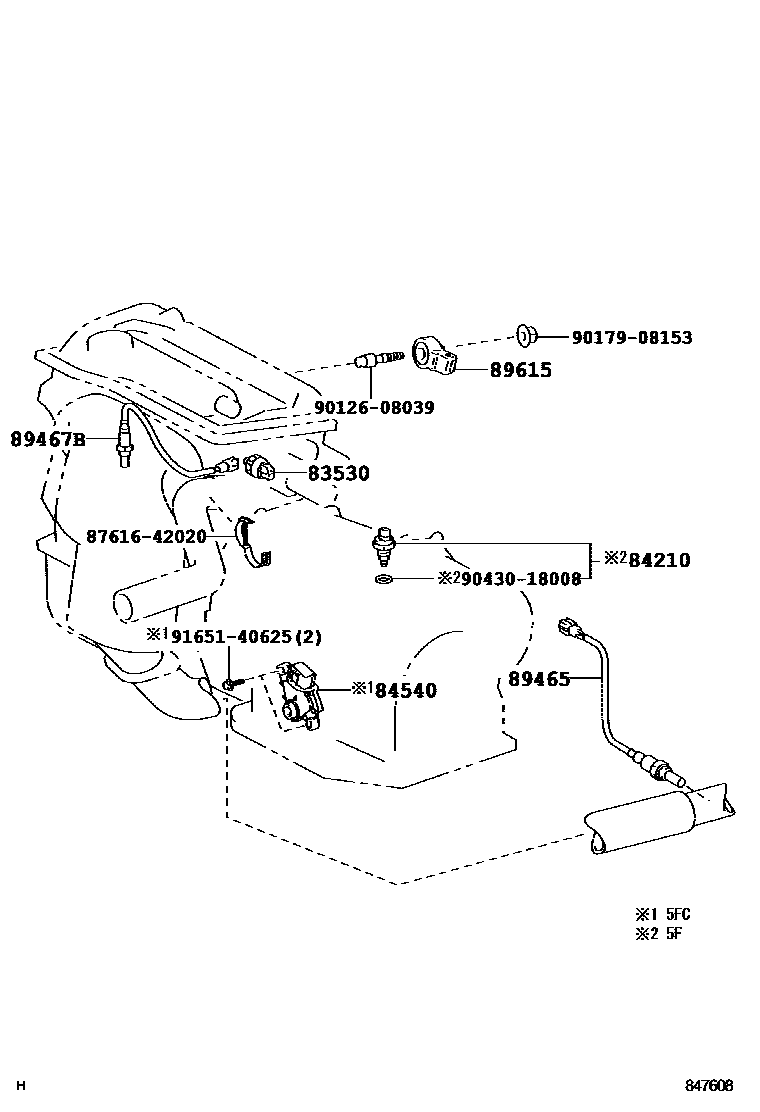

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 2/2 0006 1ENGINE ROOM 2/2 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1SEAT 0013 1SEAT 0014 1DOOR,ROOF,FLOOR & LAGGAGE 0015 1DOOR,ROOF,FLOOR & LAGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV40,GSV40200601-201109

DENSO

main83530-60020iACV40,GSV40200601-201109

YAZAKI

main83530-AA011iACV40,GSV40200704-200903

FASCO

sub83530-0E010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV40..5F200601-201109

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-33010iGSV40200601-201109

main84540-48010iACV40..5FC200601-201109

89465SENSOR, OXYGEN

main89465-33360iGSV40200601-201109

LH

main89465-33420iGSV40200601-201109

RH

main89465-33440iACV40200601-201109

89467BSENSOR, AIR FUEL RATIO

main89467-33080iACV40200601-200705

main89467-33090iGSV40200601-200707

LH

main89467-33130iGSV40200601-200707

RH

main89467-33160iACV40200706-201109

main89467-33170iGSV40200707-201109

LH

main89467-33180iGSV40200707-201109

RH

89615SENSOR, KNOCK CONTROL

main89615-20090iACV40200601-201109

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 15 diagrams in section
