FOG LAMP

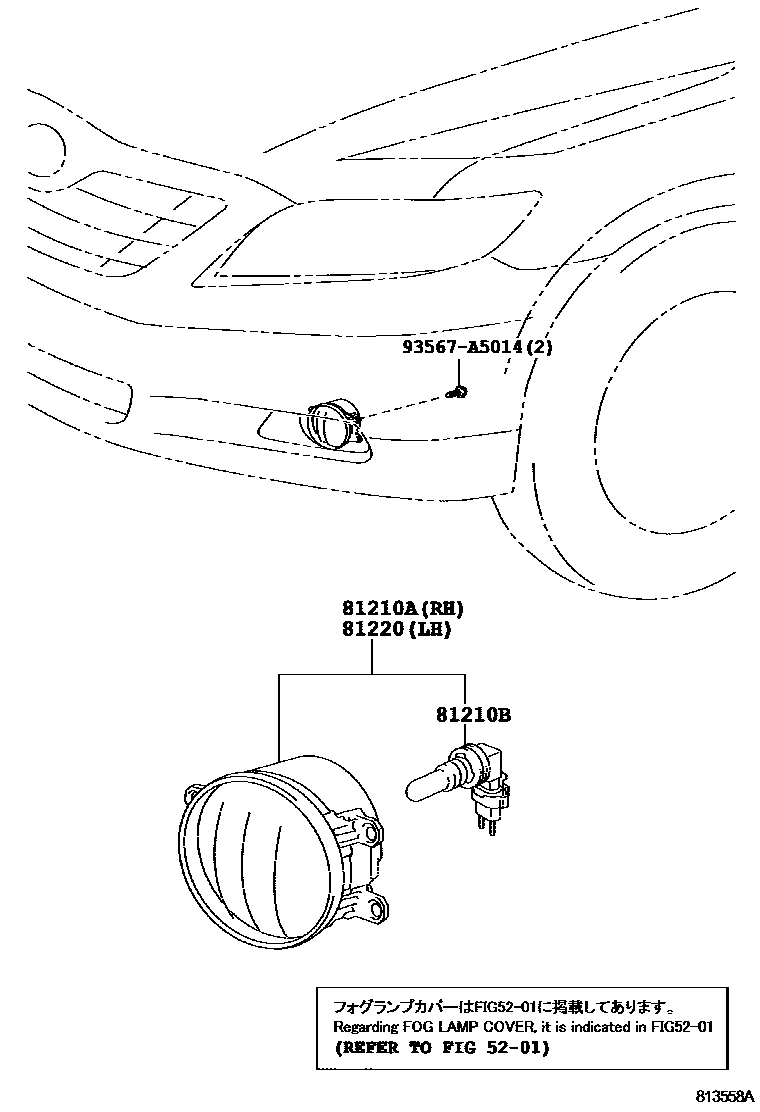

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-0D040i200601-200611

main81210-0D041i200612-200903

main81210-0D042i201005-201109

81210BBULB, FOG LAMP

main90981-13075×2i200901-201109

12V 55W,HALOGEN,PHILIPS

main90981-13081×2i200601-200903

12V 55W,HALOGEN,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D040i200601-200611

main81220-0D041i200612-200903

main81220-0D042i201005-201109

93567A5014

main93567-A5014

4 parts on this diagram · 1 diagram in section
