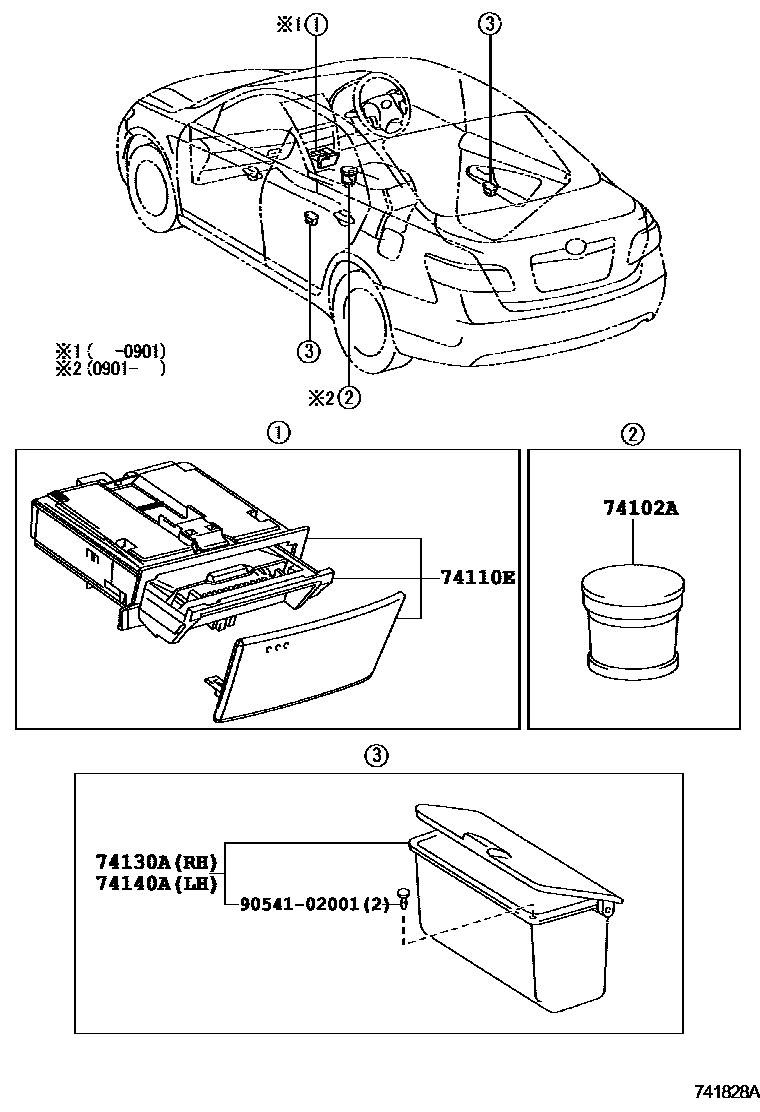

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-02140iACV40,GSV40200901-201109

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33270iACV40,GSV40200601-200903

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-33070-E0iACV40,GSV40200601-200707

LT.BROWN,TRIM1#,4#

main74130-33071-E1iACV40,GSV40200707-200903

BROWN,TRIM1#,4#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74130-33070-E0iACV40,GSV40200601-200707

LT.BROWN,TRIM1#,4#

main74130-33071-E1iACV40,GSV40200707-200903

BROWN,TRIM1#,4#

9054102001

main90541-02001

5 parts on this diagram · 1 diagram in section
