REAR SEAT & SEAT TRACK

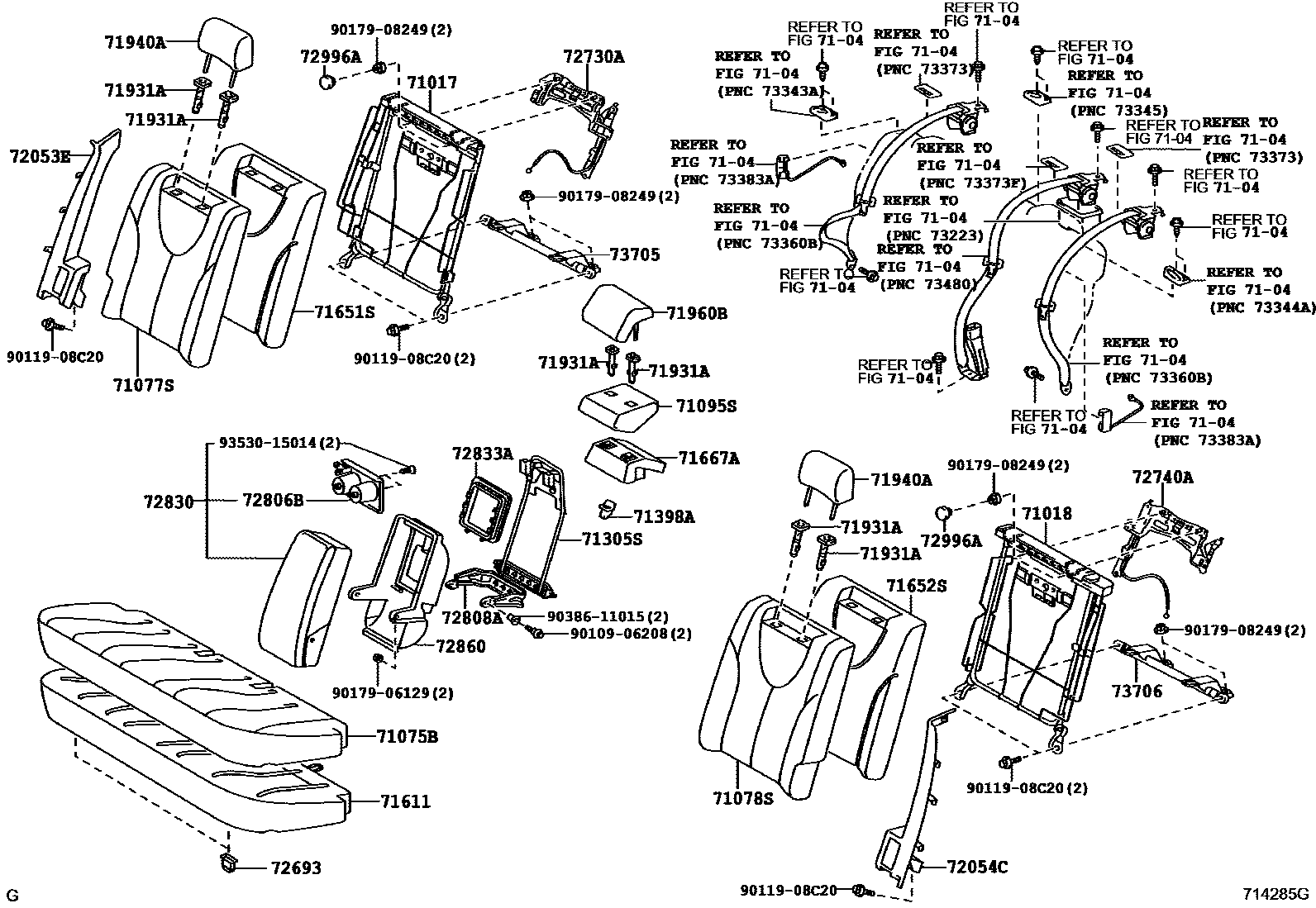

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-33170i200901-201109
main71017-33180i200601-200903
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-33100i200901-201109
main71018-33110i200601-200903
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33700-B1i200901-200906
DK.GRAY,TRIM1#
main71075-33700-E0i200901-200906
GREGE,TRIM4#
main71075-33760-B5i200601-200903
DK.GRAY,TRIM1#
main71075-33760-E2i200601-200903
GREGE,TRIM4#
main71075-33770-B2i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33770-E2i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33790-B0supersedes 71075-33780-B3i200712-200903
DK.GRAY,TRIM1#
main71075-33790-B2i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33790-E1supersedes 71075-33A61-E0i200712-200903
GREGE,TRIM4#
main71075-33790-E2i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33A40-B1i200907-201009
DK.GRAY,TRIM1#
main71075-33A40-E0i200907-201009
GREGE,TRIM4#
main71075-33A41-B1i201011-201109
DK.GRAY,TRIM1#
main71075-33A41-E0i201010-201109
GREGE,TRIM4#
main71075-33A50-B0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33A50-E0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33A51-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33A51-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main71075-33A70-B0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33A70-E0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33A71-B0i201010-201109
DK.GRAY,TRIM1#
main71075-33A71-E0i201010-201109
GREGE,TRIM4#
main71075-33A90-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33A90-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33B00-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71075-33B00-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71075-33770-B0i200601-200903
*DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71075-33770-E1i200601-200903
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-33880-B5i200601-200903
DK.GRAY,TRIM1#
main71077-33880-E2i200601-200903
GREGE,TRIM4#
main71077-33890-B0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33890-E1i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71077-33A10-B0supersedes 71077-33A00-B3i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33A10-E1supersedes 71077-33A00-E1i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71077-33A11-B0i201011-201109
DK.GRAY,TRIM1#
main71077-33A11-E1i201010-201109
GREGE,TRIM4#
main71077-33A60-B0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33A60-E0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71077-33A61-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33A61-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main71077-33B10-B1i200901-201010
DK.GRAY,TRIM1#
main71077-33B10-E0i200901-201010
GREGE,TRIM4#
main71077-33B11-B1i201010-201109
DK.GRAY,TRIM1#
main71077-33B11-E0i201011-201109
GREGE,TRIM4#
main71077-33C70-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33C70-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71077-33C80-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71077-33C80-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-33570-B5i200601-200903
DK.GRAY,TRIM1#
main71078-33570-E2i200601-200903
GREGE,TRIM4#
main71078-33580-B0i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71078-33580-E1i200911-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main71078-33600-B0supersedes 71078-33681-B0i200911-201011
DK.GRAY,TRIM1#
main71078-33600-E1supersedes 71078-33681-E0i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71078-33601-B0i201010-201109
DK.GRAY,TRIM1#
main71078-33601-E1i201011-201109
GREGE,TRIM4#
main71078-33630-B1i200901-201010
DK.GRAY,TRIM1#
main71078-33630-E0i200901-201009
GREGE,TRIM4#
main71078-33631-B1i201010-201109
DK.GRAY,TRIM1#
main71078-33631-E0i201010-201109
GREGE,TRIM4#
main71078-33690-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71078-33690-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71078-33740-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71078-33740-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
71095SCOVER SUB-ASSY, CENTER SEATBACK
main71096-33030-B0supersedes 71096-33021-B5i200712-200903
DK.GRAY,TRIM1#
main71096-33030-E1supersedes 71096-33021-E2i200712-200903
GREGE,TRIM4#
main71096-33050-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71096-33050-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-33070i200601-200903
71398AHOLDER, REAR SEATBACK
main71398-33010-C0i200601-200903
BLACK
71611PAD, REAR SEAT CUSHION
main71503-33080i200601-200903
main71503-33090i200601-200903
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-33170i200901-201109
main71651-33180i200601-200903
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-33090i200601-200903
main71652-33100i200601-200903
71667APAD, REAR SEATBACK, CENTER A
main71507-33050i200601-200903
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-B4×3i200601-200708
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-42020-E1×3i200601-200708
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71930-52030-B0×3i200709-200903
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-52030-E0×3i200709-200903
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71931-42020-B4×3i200601-200903
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#
main71931-42020-E1×3i200901-201109
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
71940AHEADREST ASSY, REAR SEAT
main71940-33670-B5×2i200702-200903
DK.GRAY,TRIM1#
main71940-33670-E2×2i200702-200903
GREGE,TRIM4#
main71940-33680-B4×2i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71940-33680-E3×2i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71940-33700-B2×2i200712-200903
DK.GRAY,TRIM1#
main71940-33700-B4×2i200901-201109
DK.GRAY,TRIM1#
main71940-33700-E2×2i200712-200903
GREGE,TRIM4#
main71940-33700-E3×2i200901-201109
GREGE,TRIM4#
main71940-33A90-B0×2i200907-201009
DK.GRAY,TRIM1#
main71940-33A90-E0×2i200907-201009
GREGE,TRIM4#
main71940-33A91-B0×2i201010-201109
DK.GRAY,TRIM1#
main71940-33A91-E0×2i201010-201109
GREGE,TRIM4#
main71940-33B00-B0×2i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71940-33B00-E0×2i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71940-33B01-B0×2i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71940-33B01-E0×2i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main71940-33680-B0×2i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71940-33680-B2×2i200702-200903
*DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71940-33680-E1×2i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71940-33680-E2×2i200702-200901
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71940-33700-B0×2supersedes 71940-33B11-B0i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71940-33700-E1×2supersedes 71940-33690-E2i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-33010-B5i200702-200903
DK.GRAY,TRIM1#
main71960-33010-E2i200702-200903
GREGE,TRIM4#
main71960-33020-B4i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71960-33020-E3i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71960-33040-B2i200712-200903
DK.GRAY,TRIM1#
main71960-33040-B4i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71960-33040-E2i200712-200903
GREGE,TRIM4#
main71960-33040-E4i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71960-33060-B1i200907-201009
DK.GRAY,TRIM1#
main71960-33060-E0i200907-201009
GREGE,TRIM4#
main71960-33061-B1i201010-201109
DK.GRAY,TRIM1#
main71960-33061-E0i201011-201109
GREGE,TRIM4#
main71960-33070-B0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71960-33070-E0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71960-33071-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71960-33071-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main71960-33090-B0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main71960-33090-E0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; GREGE,TRIM4#
main71960-33091-B0i201010-201109
DK.GRAY,TRIM1#
main71960-33091-E0i201010-201109
GREGE,TRIM4#
main71960-33020-B0i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71960-33020-B2i200702-200901
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71960-33020-E1i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71960-33020-E2i200702-200901
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71960-33040-B0supersedes 71960-33030-B5i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main71960-33040-E1supersedes 71960-33081-E0i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
72053ELEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
main72053-33010-B0i200601-200903
DK.GRAY,TRIM1#
main72053-33010-E0i200901-201109
GREGE,TRIM4#
72054CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-33010-B0i200901-201109
DK.GRAY,TRIM1#
main72054-33010-E0i200601-200903
GREGE,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i200601-200903
72730AADJUSTER ASSY, REAR SEAT RECLINING, RH
main72730-33020i200601-200903
main72730-33040i200901-201008
main72730-33041i201009-201109
72740AADJUSTER ASSY, REAR SEAT RECLINING, LH
main72740-33010i200601-200903
main72740-33030i200901-201008
main72740-33031i201009-201109
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-33050-B0i200601-200903
DK.GRAY,TRIM1#
main72806-33050-E0i200901-201109
GREGE,TRIM4#
72808ABRACKET SUB-ASSY, SEAT CENTER ARMREST
main72883-33030i200601-200903
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33540-B4i200901-201009
DK.GRAY,TRIM1#
main72830-33540-E2i200901-201009
GREGE,TRIM4#
main72830-33541-B4i201011-201109
DK.GRAY,TRIM1#
main72830-33541-E2i201011-201109
GREGE,TRIM4#
main72830-33550-B2i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#
main72830-33550-E2i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; GREGE,TRIM4#
main72830-33570-B2i200712-200903
DK.GRAY,TRIM1#
main72830-33570-E2i200712-200903
GREGE,TRIM4#
main72830-33550-B0i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main72830-33550-E1i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main72830-33570-B0supersedes 72830-33561-B4i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,DK.GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#
main72830-33570-E1supersedes 72830-33560-E2i200601-200702
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
72833APLATE, SEAT CENTER ARMREST, INNER
main72831-33080i200901-201109
72860BOX ASSY, REAR SEAT CENTER ARMREST
main72860-33070-B0i200601-200903
DK.GRAY,TRIM1#
main72860-33070-E0i200901-201109
GREGE,TRIM4#
72996ACOVER, REAR SEATBACK
main72996-50100-B3×4i200601-200903
DK.GRAY,TRIM1#
main72996-50100-E0×4i200601-200903
GREGE,TRIM4#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33030i200601-200903
main73705-33040i200601-200903
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33030i200901-201109
main73706-33040i200901-201109
9010906208
main90109-06208
9011908C20
main90119-08C20
9017906129
main90179-06129
9017908249
main90179-08249
9038611015
main90386-11015
9353015014
main93530-15014

35 parts on this diagram · 2 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
