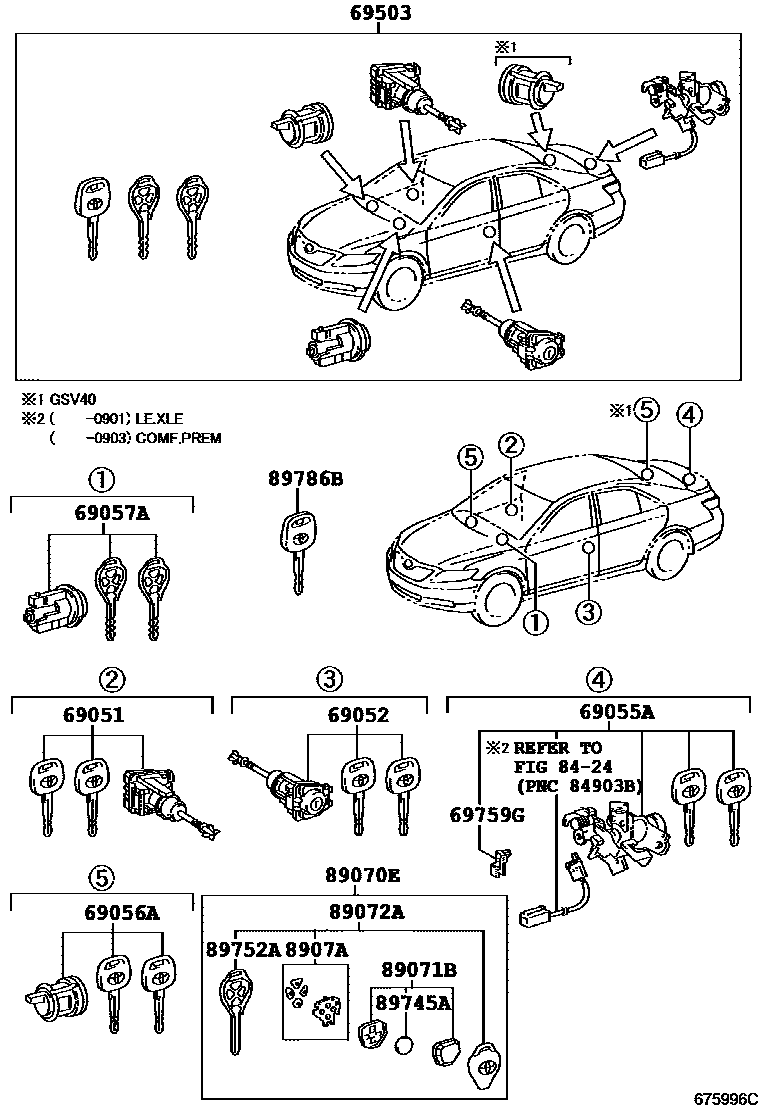

LOCK CYLINDER SET

0001 1 0004 1 0006 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33300iGSV40..RHD200901-201108

main69051-33310iACV40,GSV40200601-201109

sub69051-12650

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33280iACV40,GSV40200601-201109

sub69052-21090

main69052-33330iGSV40..LHD200901-201109

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33420iACV40200901-201109

main69055-33430iGSV40200901-201109

main69055-33440iACV40,GSV40200601-200903

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33190iACV40,GSV40200601-201109

main69056-33200iGSV40200901-201109

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33380iACV40,GSV40200601-200710

sub69057-33381

main69057-33381iACV40200711-200912

main69057-60620iACV40201001-201109

69503CYLINDER SET, LOCK

main69005-33A60iACV40200601-200710

sub69005-33A61

main69005-33A61iACV40200711-200903

sub69005-33A71

main69005-33A70iGSV40200601-200710

sub69005-33A71

main69005-33A71iGSV40200711-200903

main69005-33C10iGSV40..LHD200901-201109

main69005-33C20iGSV40..RHD200901-201108

main69005-33C40iACV40200901-200912

main69005-33C41iACV40201001-201109

REFER84-24:PNC 89780

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iACV40,GSV40200601-201109

8424

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-33890iACV40,GSV40200601-200606

sub89070-33891

main89070-33891iACV40,GSV40200607-200710

sub89070-33892

main89070-33892iACV40,GSV40200711-200903

sub89072-33481

sub89071-33342

main89070-33892iACV40200901-201001

REFER84-24:PNC 89780

sub89072-33481

sub89071-33342

main89070-33C60iACV40201001-201009

REFER84-24:PNC 89780

sub89072-22100

sub89071-33342

main89070-33C61iACV40201010-201109

sub89072-33830

sub89071-33342

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-33340iACV40,GSV40200601-200606

sub89071-30130

main89071-33341iACV40200607-201009

sub89071-33342

main89071-33342iACV40201010-201109

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-22100iACV40201001-201010

REFER84-24:PNC 89780

main89072-33480iACV40,GSV40200601-200710

sub89072-33481

main89072-33481iACV40,GSV40200711-200903

main89072-33481iACV40200901-201001

REFER84-24:PNC 89780

main89072-33830iACV40201010-201109

8907ASWITCH SET, TRANSMITTER

main8907A-33020iACV40,GSV40..COMF,PREM200601-201109

89745ABATTERY, TRANSMITTER

main89745-48030iACV40,GSV40200601-201109

sub89745-71010

main89745-52030iGSV40200901-201109

89752ACASE, TRANSMITTER HOUSING

main89752-22070iACV40201001-201109

main89752-33150iACV40,GSV40200601-200710

sub89752-33151

main89752-33151iACV40200711-201001

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iACV40200601-201001

BLANK KEY

main89786-60220iACV40201001-201109

BLANK KEY

15 parts on this diagram · 3 diagrams in section
