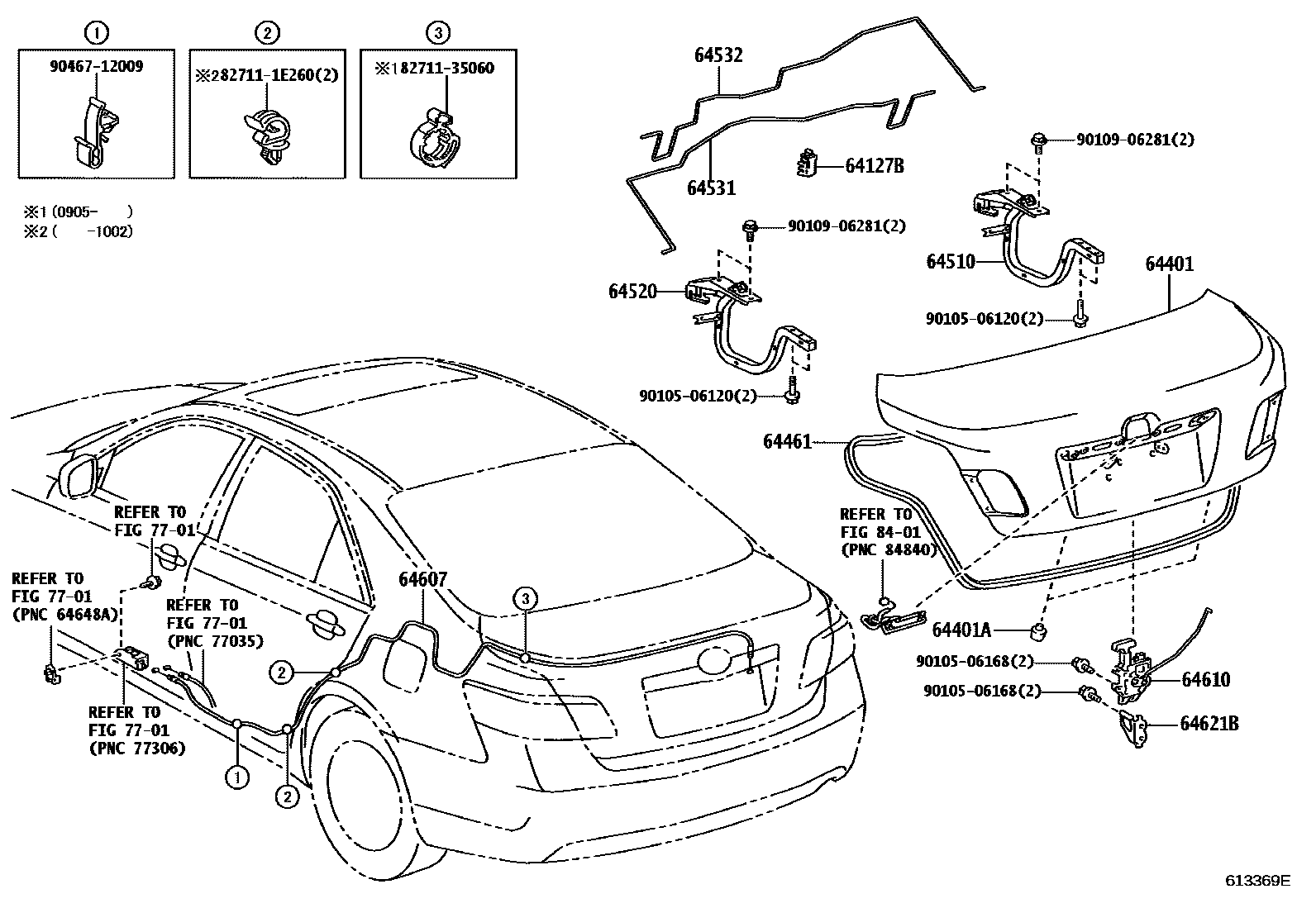

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iACV40,GSV40200601-200709

main64127-33070iACV40,GSV40200709-200812

main64127-33071iACV40,GSV40200901-201109

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33400iACV40,GSV40200601-200903

main64401-33401iACV40200911-201109

main64401-33450iACV40..LHD..5FC; GSV40200901-200910

BACK MONITOR-WITH

main64401-33451iACV40..LHD..5FC; GSV40200911-201109

BACK MONITOR-WITH

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09116×2iACV40,GSV40200601-200903

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33070iACV40,GSV40200601-200903

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33060iACV40,GSV40200604-200903

main64510-33070iACV40,GSV40200601-200604

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-33060iACV40,GSV40200604-200903

main64510-33070iACV40,GSV40200601-200604

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33220iACV40,GSV40200601-200903

main64531-33221iACV40,GSV40200901-201109

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33220iACV40,GSV40200601-200903

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33120iACV40,GSV40..RHD200601-200903

main64607-33130iACV40,GSV40..LHD200901-201109

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33130iACV40,GSV40200601-200903

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-33010iACV40,GSV40200901-201109

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046712009

main90467-12009

19 parts on this diagram · 2 diagrams in section
