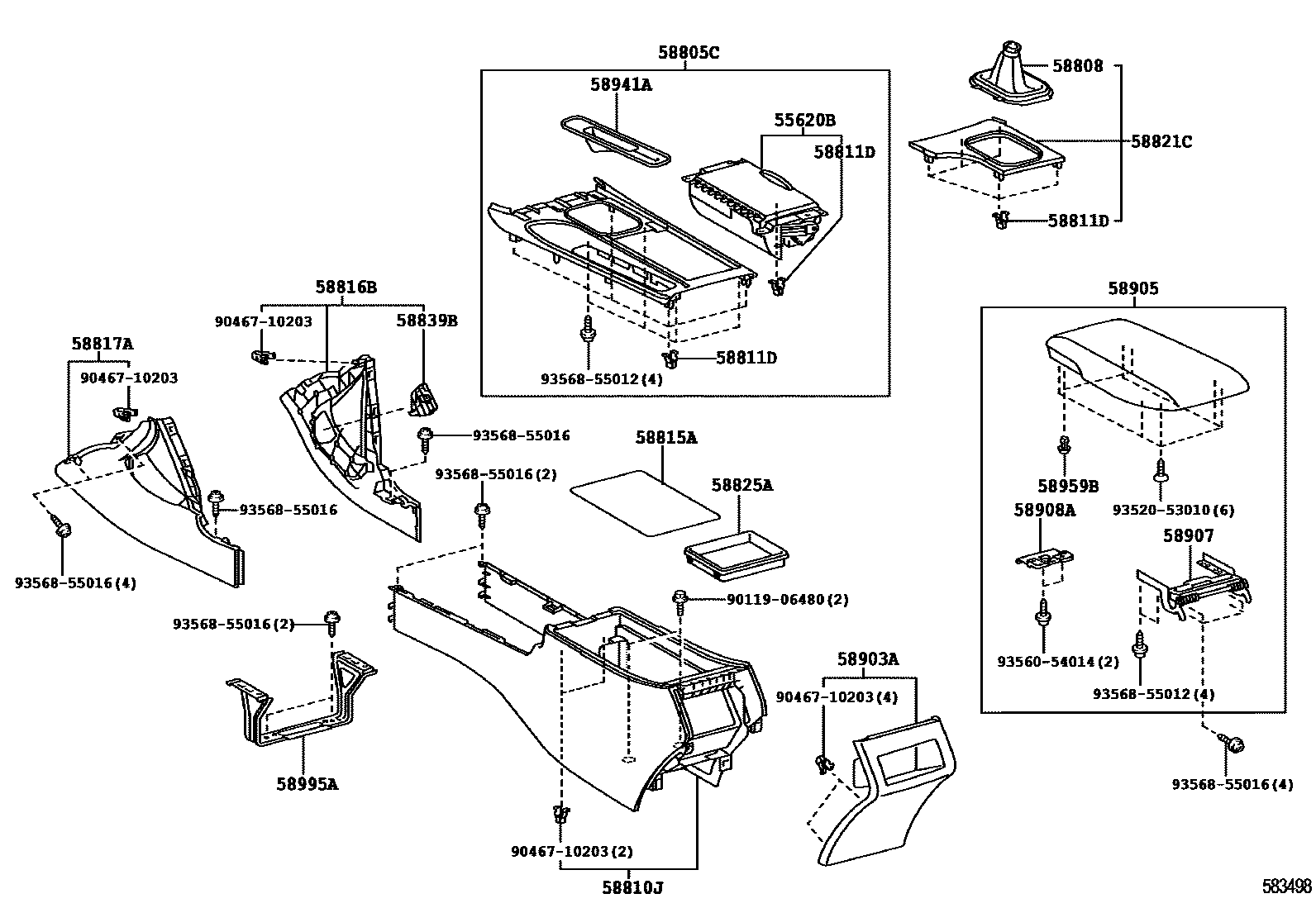

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-33170iACV40,GSV40..LHD..ATM200601-200707

main55620-33200iACV40..5F200601-200707

main55620-33210iACV40,GSV40..RHD..ATM200601-200707

main55620-33270iACV40,GSV40..LHD..ATM200707-201109

main55620-33280iACV40..5F200707-201109

main55620-33290iACV40,GSV40..RHD..ATM200707-201108

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-33130-B1iACV40,GSV40..RHD..ATM200601-200707

DK.GRAY,TRIM1#

main58805-33130-E1iACV40,GSV40..RHD..ATM200601-200707

GREGE,TRIM4#

main58805-33150-B2iACV40,GSV40..LHD..ATM200601-200707

DK.GRAY,TRIM1#

main58805-33150-E1iACV40,GSV40..LHD..ATM200601-200707

GREGE,TRIM4#

main58805-33170-B2iACV40..5F200601-200707

DK.GRAY,TRIM1#

sub58805-33171

main58805-33170-E2iACV40..5F200601-200707

GREGE,TRIM4#

sub58805-33171

main58805-33200-B0iACV40,GSV40..RHD..ATM200707-201108

DK.GRAY,TRIM1#

main58805-33200-E0iACV40,GSV40..RHD..ATM200707-201108

GREGE,TRIM4#

main58805-33210-B0iACV40,GSV40..LHD..ATM200707-201109

DK.GRAY,TRIM1#

main58805-33210-E0iACV40,GSV40..LHD..ATM200707-201109

GREGE,TRIM4#

main58805-33220-B0iACV40..5F200707-200809

DK.GRAY,TRIM1#

sub58805-33221

main58805-33220-E0iACV40..5F200707-200809

GREGE,TRIM4#

sub58805-33221

main58805-33221-B0iACV40..5F200810-201109

DK.GRAY,TRIM1#

main58805-33221-E0iACV40..5F200810-201109

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-33070-B0iACV40..5F200601-201109

DK.GRAY,TRIM1#

sub58808-33070

main58808-33070-E0iACV40..5F200601-201109

ASH BROWN,TRIM4#

sub58808-33070

58810JBOX ASSY, CONSOLE

main58810-33180-B0iACV40,GSV40..RHD..ATM200601-201108

DK.GRAY,TRIM1#

main58810-33180-E0iACV40,GSV40..RHD..ATM200601-201108

GREGE,TRIM4#

main58810-33190-B0iACV40..5F200601-201109

DK.GRAY,TRIM1#

main58810-33190-E0iACV40..5F200601-201109

GREGE,TRIM4#

main58810-33200-B0iACV40,GSV40..LHD..ATM200601-201109

DK.GRAY,TRIM1#

main58810-33200-E0iACV40,GSV40..LHD..ATM200601-201109

GREGE,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-10203iACV40,GSV40..ATM200601-201109

58815ACARPET, CONSOLE BOX

main58815-33090iACV40,GSV40200601-201109

58816BINSERT, CONSOLE BOX

main58816-33010-B0iACV40,GSV40200601-200903

DK.GRAY,TRIM1#

main58816-33010-E0iACV40,GSV40200601-200903

GREGE,TRIM4#

main58816-33020-B0iACV40,GSV40200901-201109

DK.GRAY,TRIM1#

main58816-33020-E0iACV40,GSV40200901-201109

GREGE,TRIM4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-33010-B0iACV40,GSV40200601-200903

DK.GRAY,TRIM1#

main58817-33010-E0iACV40,GSV40200601-200903

GREGE,TRIM4#

main58817-33020-B0iACV40,GSV40200901-201109

DK.GRAY,TRIM1#

main58817-33020-E0iACV40,GSV40200901-201109

GREGE,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58821-33570-B0iACV40..5F200601-200707

DK.GRAY,TRIM1#

main58821-33570-E0iACV40..5F200601-200707

ASH BROWN,TRIM4#

main58821-33580-B0iACV40..5F..COMF200903-201109

DK.GRAY,TRIM1#

main58821-33580-E0iACV40..5F..COMF200903-201109

ASH BROWN,TRIM4#

main58821-33600-B0iACV40..5F200707-201108

DK.GRAY,TRIM1#

main58821-33600-E0iACV40..5F..LE200707-201108

ASH BROWN,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-33010iACV40,GSV40200601-201109

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58839-33040-B0iACV40,GSV40200601-200903

DK.GRAY,TRIM1#

main58839-33040-E0iACV40,GSV40200601-200903

GREGE,TRIM4#

main58839-33050-B0iACV40,GSV40200901-201109

DK.GRAY,TRIM1#

main58839-33050-E0iACV40,GSV40200901-201109

GREGE,TRIM4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-33060-B0iACV40,GSV40..ATM200601-201109

DK.GRAY,TRIM1#

sub58903-33060

main58903-33060-E0iACV40,GSV40..ATM200601-201109

GREGE,TRIM4#

sub58903-33060

main58903-33070-B0iACV40..5F200601-201109

DK.GRAY,TRIM1#

sub58903-33070

main58903-33070-E0iACV40..5F200601-201109

GREGE,TRIM4#

sub58903-33070

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-33310-B0iACV40,GSV40..ATM200601-200610

DK.GRAY,TRIM1#

sub58905-33380

main58905-33310-E0iACV40,GSV40..ATM200601-200610

GREGE,TRIM4#

sub58905-33380

main58905-33320-B0iACV40..5F200601-201109

DK.GRAY,TRIM1#

main58905-33320-E0iACV40..LHD..5F200601-201109

GREGE,TRIM4#

main58905-33380-B0iACV40,GSV40..ATM..(COMF,LE,XLE)200611-201109

DK.GRAY,TRIM1#

sub58905-33380

main58905-33380-E0iACV40,GSV40..ATM..(COMF,LE,XLE)200611-201109

GREGE,TRIM4#

sub58905-33380

main58905-33390-B0iACV40..5FC;GSV40..LHD..XLE200712-201109

DK.GRAY,TRIM1#

main58905-33390-B0iGSV40..PREM;ACV40,GSV40..RHD..(5F,6FC)200901-201109

*DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1#

main58905-33390-E0iGSV40..PREM;ACV40,GSV40..RHD..(5F,6FC)200712-201109

GREGE,TRIM4#

main58905-33390-E0iGSV40..PREM;ACV40,GSV40..RHD..(5F,6FC)200901-201109

*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-33090iACV40,GSV40..ATM200601-201109

main58907-33100iACV40..5F200601-201109

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iACV40..LHD..5F200601-201109

58941ACOVER, PARKING BRAKE HOLE

main58941-33080iACV40..5F200601-201109

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iACV40,GSV40200601-201109

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-33050iACV40,GSV40..RHD..ATM200601-201108

main58995-33060iACV40,GSV40..LHD..ATM200601-201109

main58995-33070iACV40..5F200601-200809

sub58995-33071

main58995-33071iACV40..5F200810-201109

9011906480

main90119-06480

9046710203

main90467-10203

9352053010

main93520-53010

9356054014

main93560-54014

9356855012

main93568-55012

9356855016

main93568-55016

24 parts on this diagram · 4 diagrams in section
