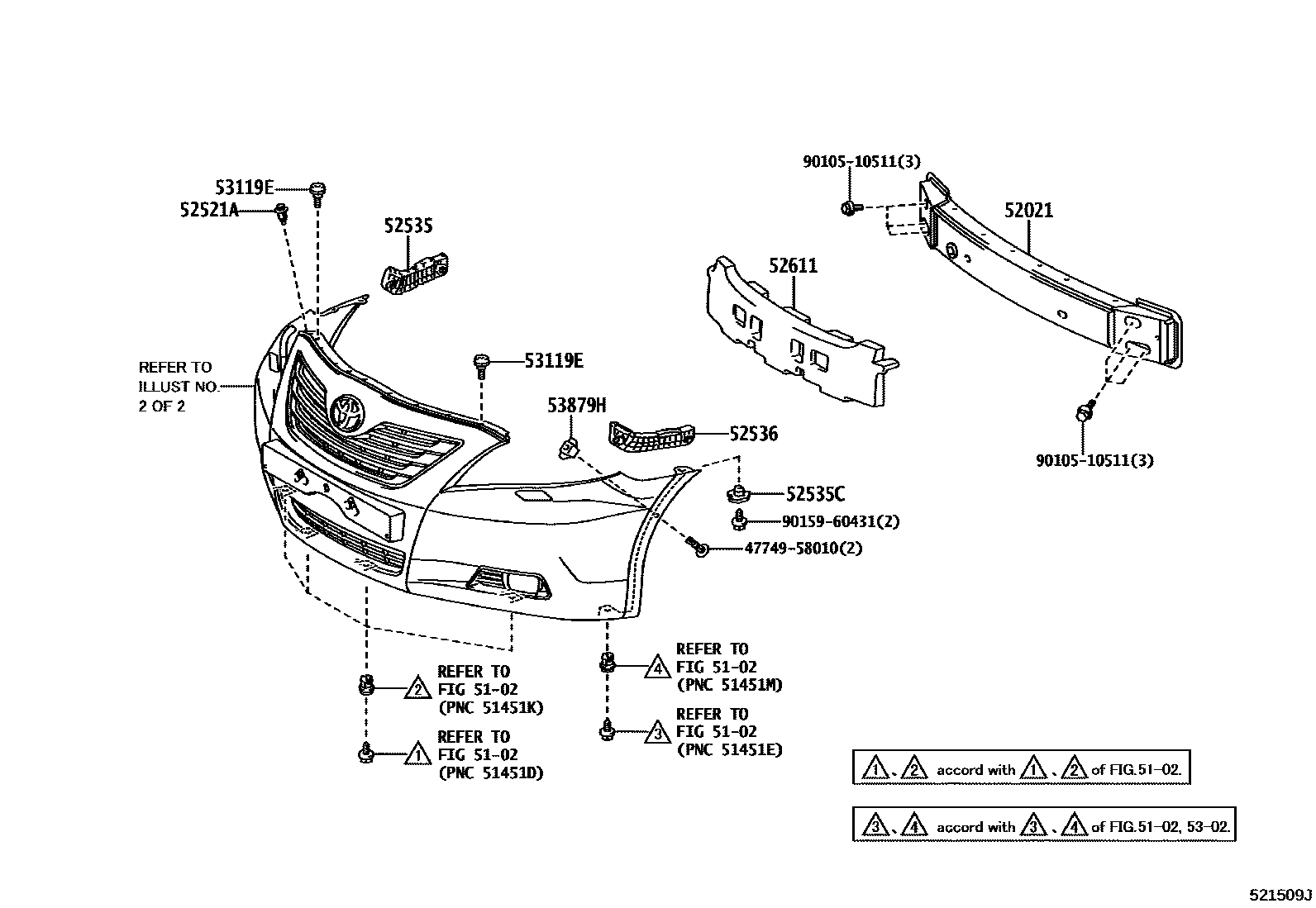

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0007 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33140iACV40,GSV40200601-201109

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-08180iACV40,GSV40200601-201109

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33040iACV40,GSV40200601-201109

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iACV40,GSV40200601-201109

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33040iACV40,GSV40200601-201109

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33140iACV40,GSV40200901-201109

main52611-33160iACV40,GSV40200601-200903

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120iACV40,GSV40200601-201109

53879HRETAINER, FRONT FENDER LINER

main53879-58010iACV40,GSV40200601-201109

4774958010CLIP, PIN HOLD

main47749-58010

9010510511

main90105-10511

9015960431

main90159-60431

12 parts on this diagram · 4 diagrams in section
