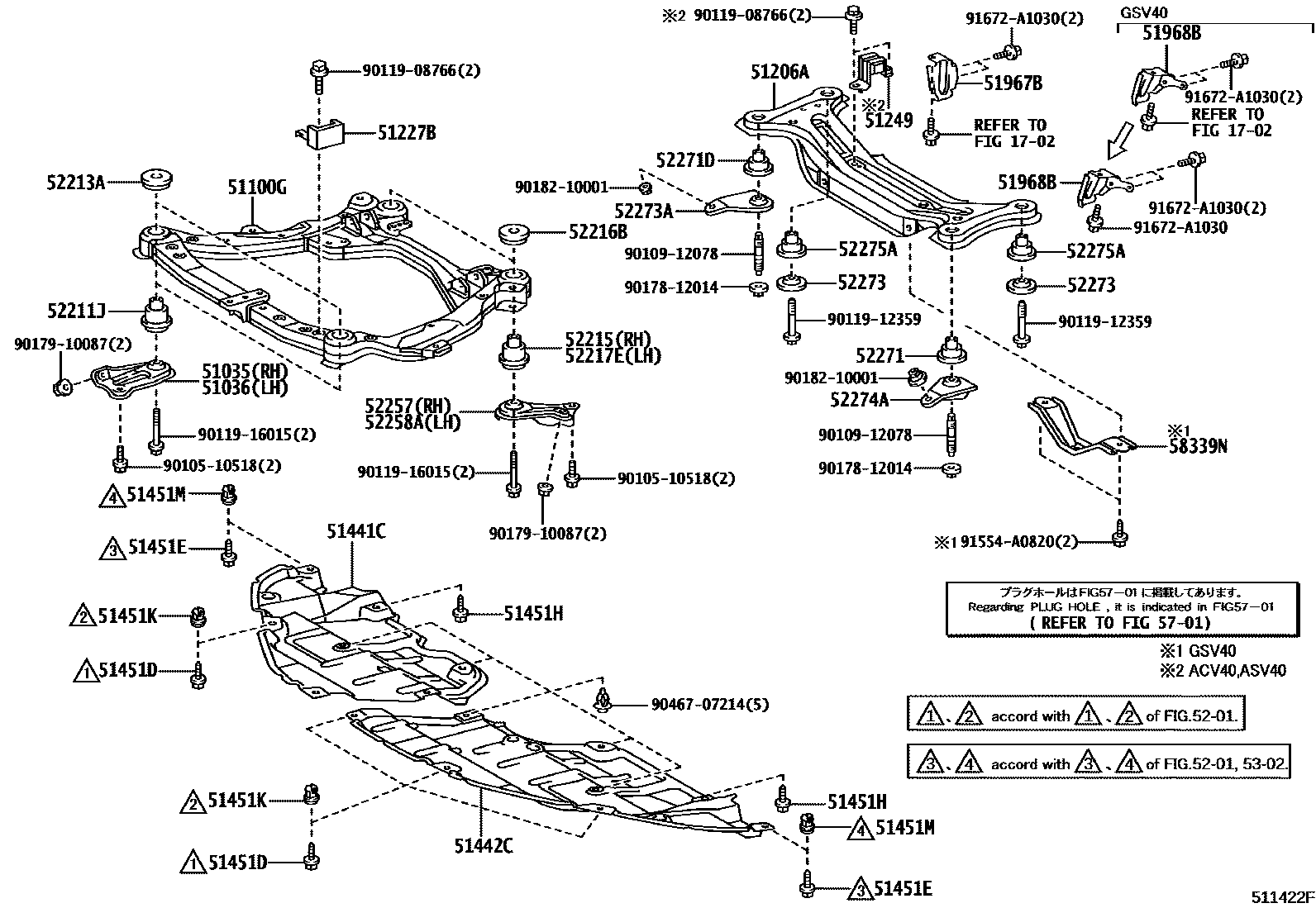

SUSPENSION CROSSMEMBER & UNDER COVER

1702EXHAUST PIPE

→ Go to FIG 17-02

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33030iACV40,GSV40200601-200903

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33030iACV40,GSV40200601-200903

51100GFRAME ASSY, FRONT

main51100-33070iACV40,GSV40..ATM200601-200903

main51100-33090iACV40..5F200601-200903

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33061iACV40,GSV40200601-200903

main51206-33100iACV40,GSV40201005-201109

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33110iACV40,GSV40200601-200903

51249DAMPER, REAR SUSPENSION MEMBER

main51249-33010iACV40200601-200903

51441CCOVER, ENGINE UNDER, RH

main51441-33080iACV40,GSV40200601-200903

main51441-33110iACV40,GSV40200901-201109

51442CCOVER, ENGINE UNDER, LH

main51442-33080iACV40,GSV40200601-200903

main51442-33110iACV40,GSV40200901-201109

51451DSCREW, NO.1

main90159-60383×4iACV40,GSV40200601-200903

51451ESCREW, NO.2

main90159-60383×2iACV40,GSV40200601-200903

51451HSCREW, NO.3

main90159-60383×2iACV40,GSV40200601-200903

51451KGROMMET, SCREW, NO.1

main90189-06193×4iACV40,GSV40200601-200903

51451MGROMMET, SCREW, NO.2

main90189-06193×2iACV40,GSV40200601-200903

51967BHOOK, TRANSPORT, REAR RH

main51967-33030iACV40,GSV40..LE,XLE200601-200903

51968BHOOK, TRANSPORT, REAR LH

main51968-33020iACV40,GSV40..LE,XLE200601-200903

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33080×2iGSV40200601-200903

main52211-33090×2iACV40200601-200903

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33080×2iGSV40200601-200903

main52213-33090×2iACV40200601-200903

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33090iACV40,GSV40200601-200903

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33070×2iACV40,GSV40200601-200903

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33020iACV40,GSV40200601-200903

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33060iACV40,GSV40200601-200903

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33070iACV40,GSV40200601-200903

52271CUSHION, REAR SUSPENSION MEMBER

main52272-33050iACV40,GSV40200601-200903

main52272-33051iACV40,GSV40201106-201109

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33050iACV40,GSV40200601-200903

main52271-33051iACV40,GSV40201106-201109

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010×2iACV40,GSV40200601-200903

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33030iACV40,GSV40200601-200903

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33030iACV40,GSV40200601-200903

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050×2iACV40,GSV40200601-200903

main52275-33051×2iACV40,GSV40201106-201109

5701HOLE PLUG

→ Go to FIG 57-01

58339NBRACKET, JACK UP

main58339-33020iGSV40200601-200903

main58339-33021iGSV40201011-201109

9010510518

main90105-10518

9010912078

main90109-12078

9011908766

main90119-08766

9011912359

main90119-12359

9011916015

main90119-16015

9017812014

main90178-12014

9017910087

main90179-10087

9018210001

main90182-10001

9046707214

main90467-07214

91554A0820

main91554-A0820

91672A1030

main91672-A1030

42 parts on this diagram · 1 diagram in section
