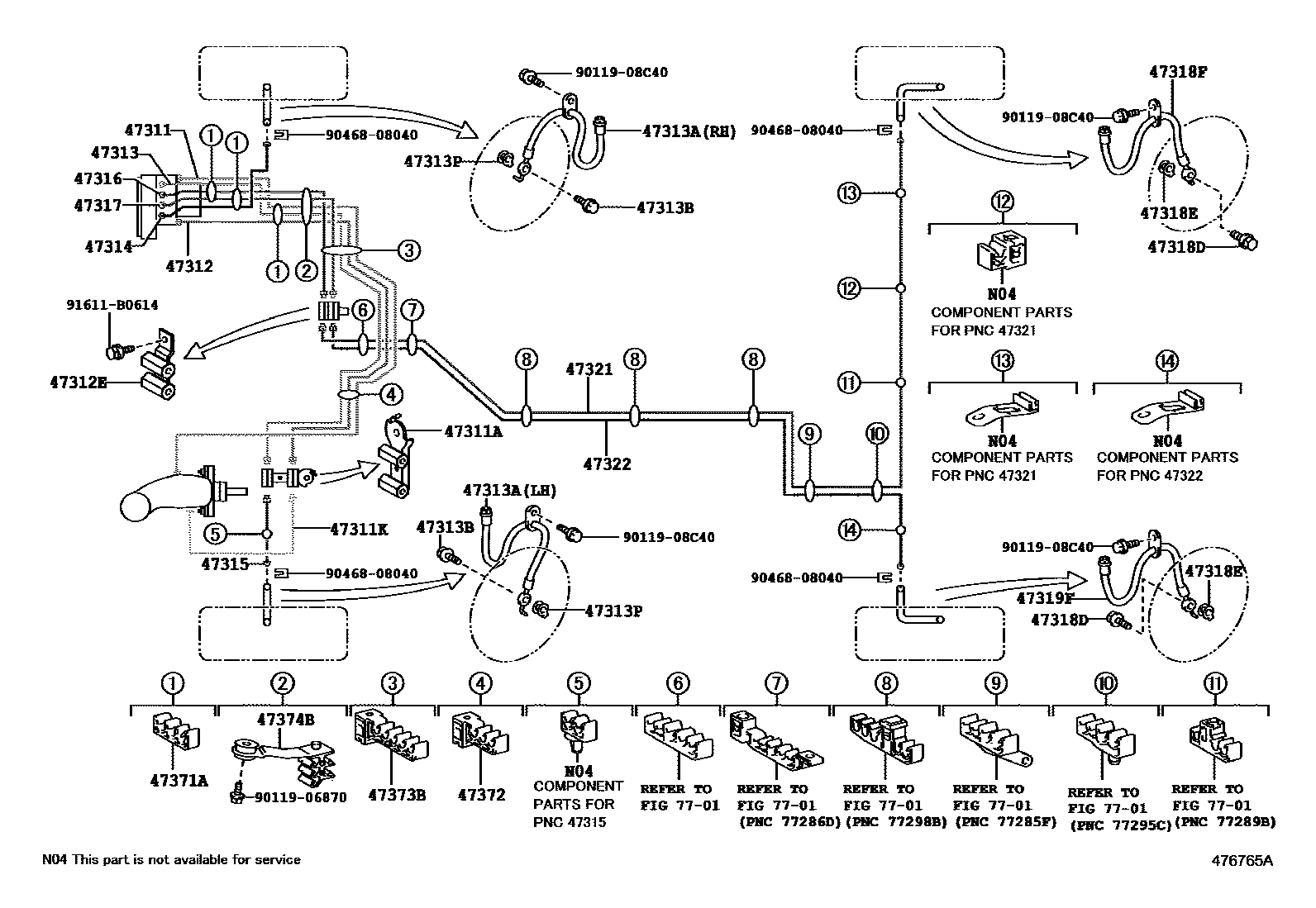

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W(ABS) 0003 1W(VSC) 0004 1W(VSC) 0005 1W(ABS) 0006 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-33170iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47311-33180iACV40..LHD200601-200903

main47311-33190supersedes 47311-33200iACV40..RHD; GSV40..RHD200601-200903

W(VSC)

main47311-33230iACV40..LHD..5FC; GSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10263iACV40,GSV40..LHD200601-200903

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-33160iACV40,GSV40..LHD200601-200903

47312TUBE, FRONT BRAKE, NO.2

main47312-33160iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47312-33170iACV40..LHD200601-200903

main47312-33180supersedes 47312-33190iACV40..RHD; GSV40..RHD200601-200903

W(VSC)

main47312-33210iACV40..LHD..5FC; GSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246×2iACV40..RHD..5F200601-200901

47313TUBE, FRONT BRAKE, NO.3

main47313-33150iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47313-33160iACV40..LHD200601-200903

main47313-33170supersedes 47313-33180iACV40..RHD..5FC; GSV40..RHD200901-201108

VSC-WITH(WITHOUT-CUT OFF SWITCH)

main47313-33210iACV40..LHD..5FC; GSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E20iACV40,GSV40200601-200701

RH

main90947-02E21iACV40,GSV40200601-200701

LH

main90947-02F58iACV40,GSV40200701-200903

RH

main90947-02F59iACV40,GSV40200701-200903

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iACV40,GSV40200601-200903

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iACV40,GSV40200601-200705

main47389-50021×2iACV40,GSV40200706-200903

47314TUBE, FRONT BRAKE, NO.4

main47314-33130iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47314-33140iACV40..LHD200901-201109

main47314-33150supersedes 47314-33160iACV40..RHD..5FC; GSV40..RHD200901-201108

VSC-WITH(WITHOUT-CUT OFF SWITCH)

main47314-33180iACV40..LHD..5FC; GSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47315TUBE, FRONT BRAKE, NO.5

main47315-33200iACV40,GSV40..LHD..ATM200601-200903

main47315-33210iACV40,GSV40..RHD200901-201108

main47315-33230iACV40..LHD..5F200601-200903

47316TUBE, FRONT BRAKE, NO.6

main47316-33250iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47316-33260iACV40..LHD200601-200903

main47316-33270supersedes 47316-33280iACV40..RHD..5FC; GSV40..RHD200901-201108

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47317TUBE, FRONT BRAKE, NO.7

main47317-33240iACV40..LHD..LE;ACV40..5FC..COMF; GSV40..LHD200601-200903

W(VSC)

main47317-33250iACV40..LHD200601-200903

main47317-33260supersedes 47317-33270iACV40..RHD; GSV40..RHD200601-200903

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iACV40,GSV40200601-200903

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iACV40,GSV40200601-200705

main47389-50021×2iACV40,GSV40200706-200903

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C93iACV40,GSV40200601-200701

main90947-02F60iACV40,GSV40200701-200903

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C94iACV40,GSV40200601-200701

main90947-02F61iACV40,GSV40200701-200903

47321TUBE, REAR BRAKE, NO.1

main47321-33150iACV40,GSV40200601-200903

47322TUBE, REAR BRAKE, NO.2

main47322-33120iACV40,GSV40200901-201109

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857×3iACV40200601-200903

main90464-00876iACV40..5FC; GSV40200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C95iACV40,GSV40..LHD200901-201109

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D05iACV40,GSV40..RHD200901-201108

main90949-01D06iACV40..LHD..5FC; GSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

main90949-01D28iACV40..LHD200601-200903

47374BCLAMP, BRAKE TUBE, NO.4

main90949-04035iACV40,GSV40200601-200903

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906870

main90119-06870

9011908C40

main90119-08C40

9046808040

main90468-08040

91611B0614

main91611-B0614

28 parts on this diagram · 6 diagrams in section
