BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

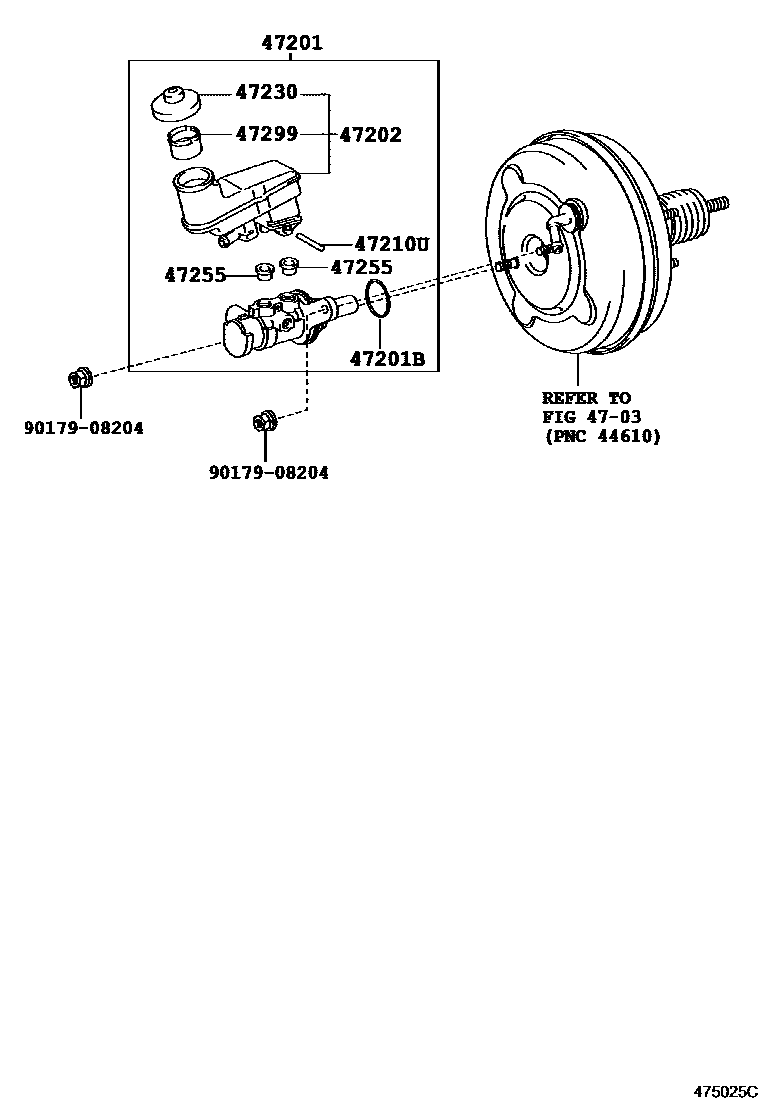

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33460iACV40..LHD..5F200901-201109

main47201-33480iACV40,GSV40..LHD..ATM200601-200807

main47201-33481iACV40,GSV40..LHD..ATM200901-201109

main47201-33490iACV40..RHD..5F200901-201108

main47201-33500iACV40,GSV40..RHD..ATM200901-201108

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iACV40,GSV40200601-200903

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33050iACV40..LHD..5F200601-200903

main47220-33070iACV40,GSV40..LHD..ATM200601-200807

main47220-33071iACV40,GSV40..LHD..ATM200901-201109

main47220-33080iACV40..RHD..5F200601-200901

main47220-33090iACV40,GSV40..RHD..ATM200601-200901

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iACV40,GSV40200601-200903

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iACV40,GSV40200901-201109

main47230-52030iACV40,GSV40200601-200808

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iACV40,GSV40200601-200903

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iACV40,GSV40200601-200903

9017908204

main90179-08204
