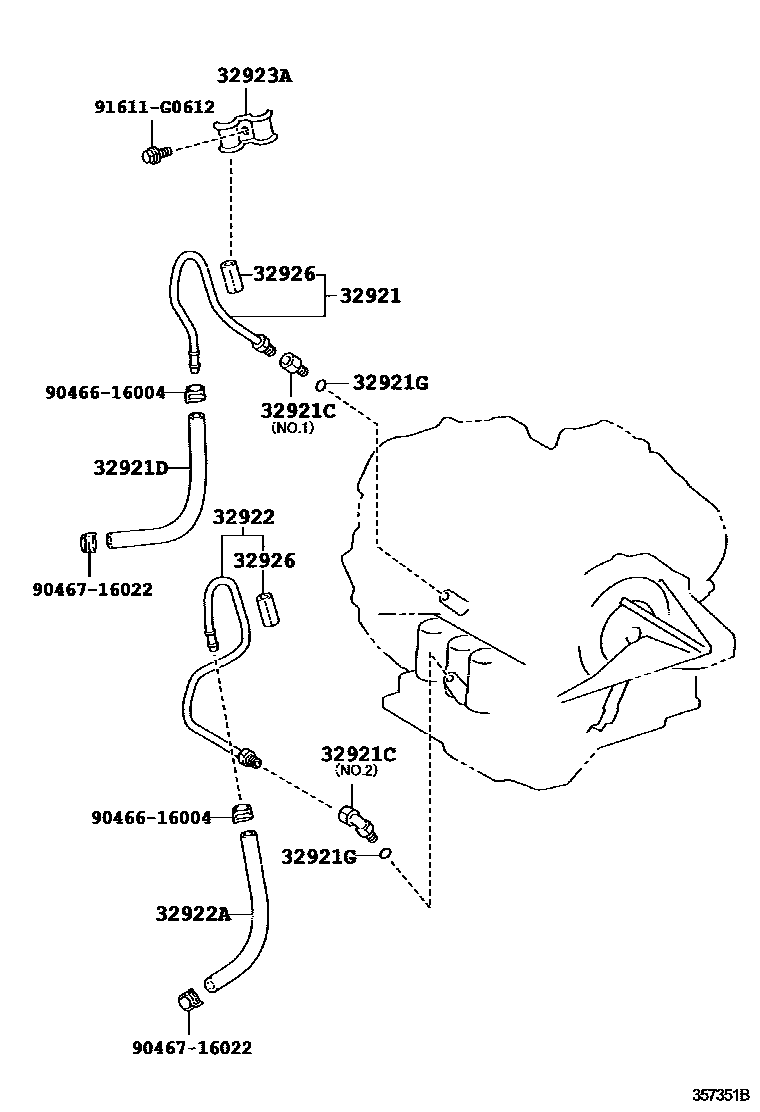

OIL COOLER & TUBE (ATM)

0001 1U250E 0002 1U660E

32921TUBE, OIL COOLER INLET, NO.1

main32921-33160iACV40..5FC200601-200903

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027iGSV40200901-201109

OUTLET

main90404-16031iACV40..5FC..LE200610-200903

NO.1

main90407-14032iGSV40200901-201109

INLET

main90407-16010iACV40..5FC..COMF200601-200903

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32943-33140iACV40..5FC200912-201109

main32943-33260iACV40..5FC200601-200903

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACV40..5FC..COMF200601-200903

main90301-11006×2iGSV40200601-200903

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-33160iACV40..5FC200601-200903

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17128iACV40..5FC200601-200903

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACV40..5FC200601-200903

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iACV40..5FC200601-200903

L=35,ID=10

9046616004

main90466-16004

9046716022

main90467-16022

91611G0612

main91611-G0612

11 parts on this diagram · 2 diagrams in section
