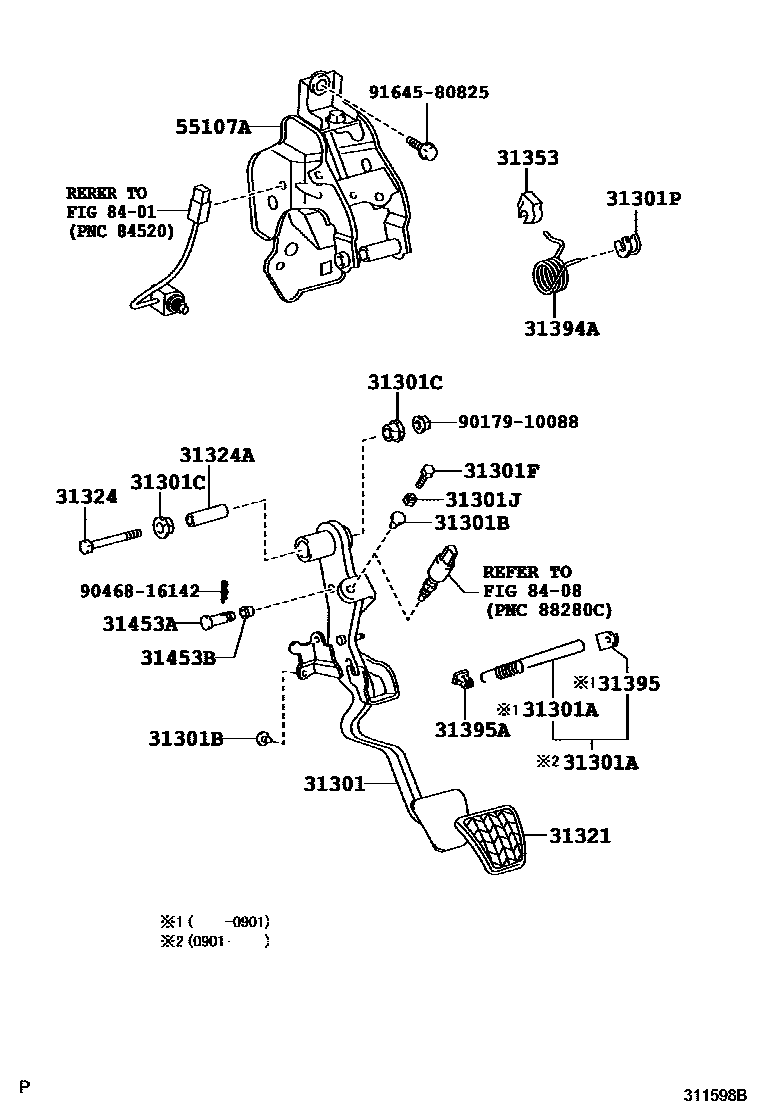

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33060iACV40..RHD..5F200601-201108

main31301-33070iACV40..LHD..5F200601-201109

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iACV40..5F200901-201109

main90905-06079iACV40..5F200601-200903

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACV40..5F200601-201109

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACV40..5F200601-201109

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iACV40..5F200601-201109

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iACV40..5F200601-201109

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACV40..5F200601-201109

31321PAD, CLUTCH PEDAL

main31321-52010iACV40..5F200601-201109

31324SHAFT, CLUTCH PEDAL

main90101-10015iACV40..RHD..5F200601-201108

main90101-10164iACV40..LHD..5F200601-201109

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iACV40..RHD..5F200601-201108

main90387-10105iACV40..LHD..5F200601-201109

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iACV40..5F200601-201109

31394ASPRING, PEDAL W/HOOK

main31394-33040iACV40..LHD..5F200601-201109

main31394-33050iACV40..RHD..5F200601-201108

31395HOOK, PEDAL SPRING

main31395-33010iACV40..5F200601-200903

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iACV40..5F200601-201109

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iACV40..5F200601-201109

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iACV40..5F200601-201109

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33050iACV40..RHD..5F200601-200805

sub55107-33051

main55107-33051iACV40..RHD..5F200806-201108

main55107-33060iACV40..LHD..5F200601-201109

8408

9017910088

main90179-10088

9046816142

main90468-16142

9164580825

main91645-80825

21 parts on this diagram · 4 diagrams in section
