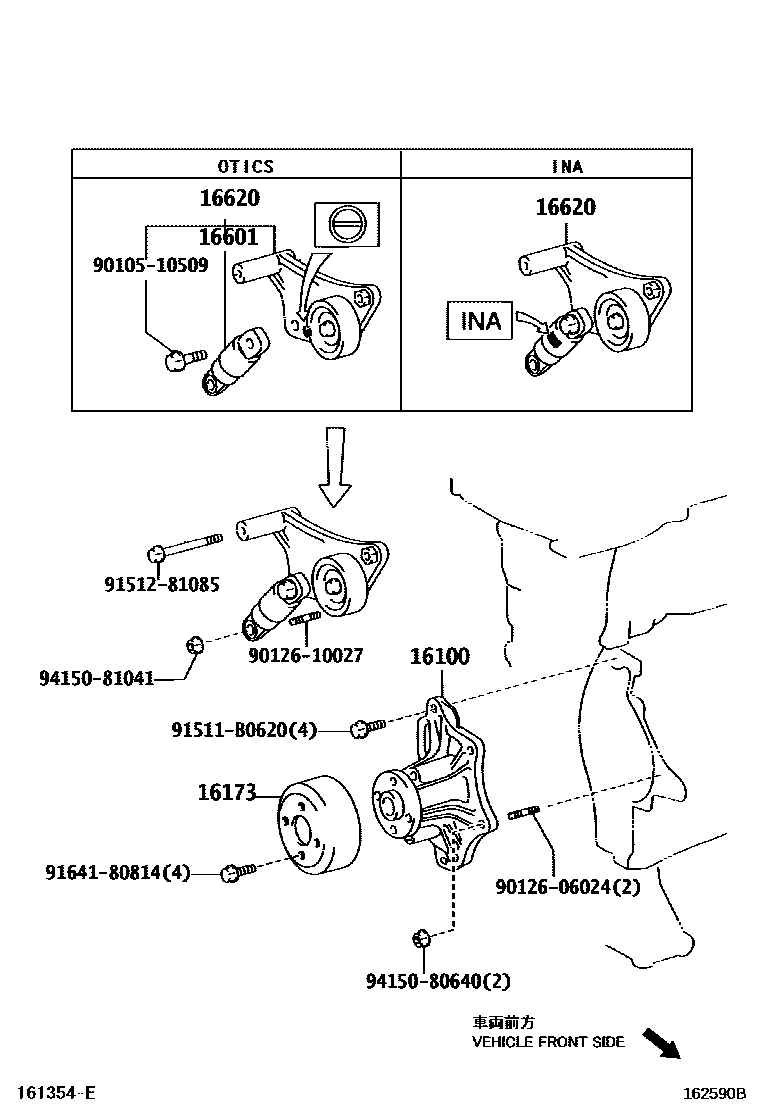

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i2AZFE..ACV40200601-200701

sub16100-28041

main16100-28041i2AZFE..ACV40200701-201109

main16100-39455i2GRFE..GSV40..XLE200601-200903

sub16100-39456

main16100-39456i2GRFE..GSV40200903-201109

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACV40200601-201109

main16173-31010i2GRFE..GSV40200601-201109

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28020i2AZFE..ACV40200601-200610

OTICS

sub16601-28021

main16601-28021i2AZFE..ACV40200610-200804

OTICS

sub16620-0H020

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACV40200804-201109

sub16620-0H021

main16620-28040i2AZFE..ACV40200601-200610

sub16620-28041

main16620-28041i2AZFE..ACV40200610-200804

sub16620-0H020

main16620-31040i2GRFE..GSV40200601-201109

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 3 diagrams in section
