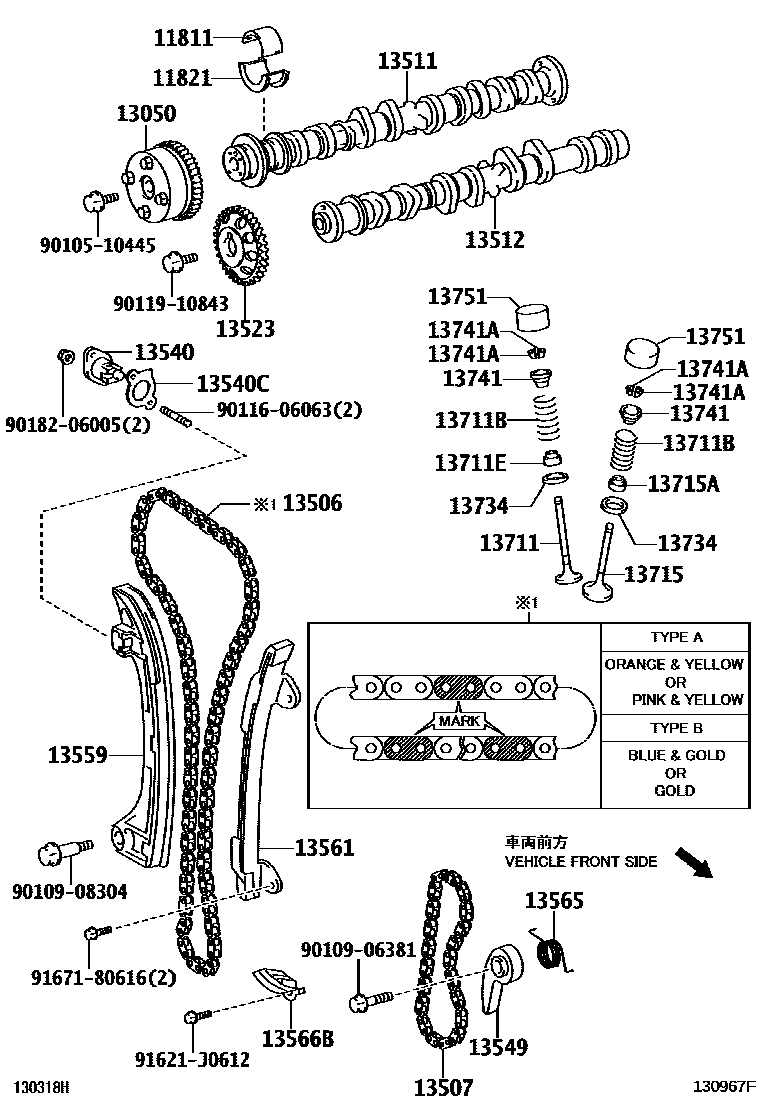

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1
MARK 2
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
*195
13506CHAIN SUB-ASSY
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L)
(J)
13512CAMSHAFT, NO.2
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
*195
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
*195
13711BSPRING, COMPRESSION(FOR INNER)
*195
13711ESEAL, INTAKE VALVE STEM OIL
*195
13715VALVE, EXHAUST
*195
13715ASEAL, EXHAUST VALVE STEM OIL
*195
13734SEAT, VALVE SPRING
*195
13741RETAINER, VALVE SPRING
*195
13741ALOCK, VALVE SPRING RETAINER
*195
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
main90105-10445
9010906381
main90109-06381
9010908304
main90109-08304
9011606063
main90116-06063
9011910843
main90119-10843
9018206005
main90182-06005
91621J0612
main91621-J0612
9167180616
main91671-80616
32 parts on this diagram · 2 diagrams in section
