ENGINE OVERHAUL GASKET KIT

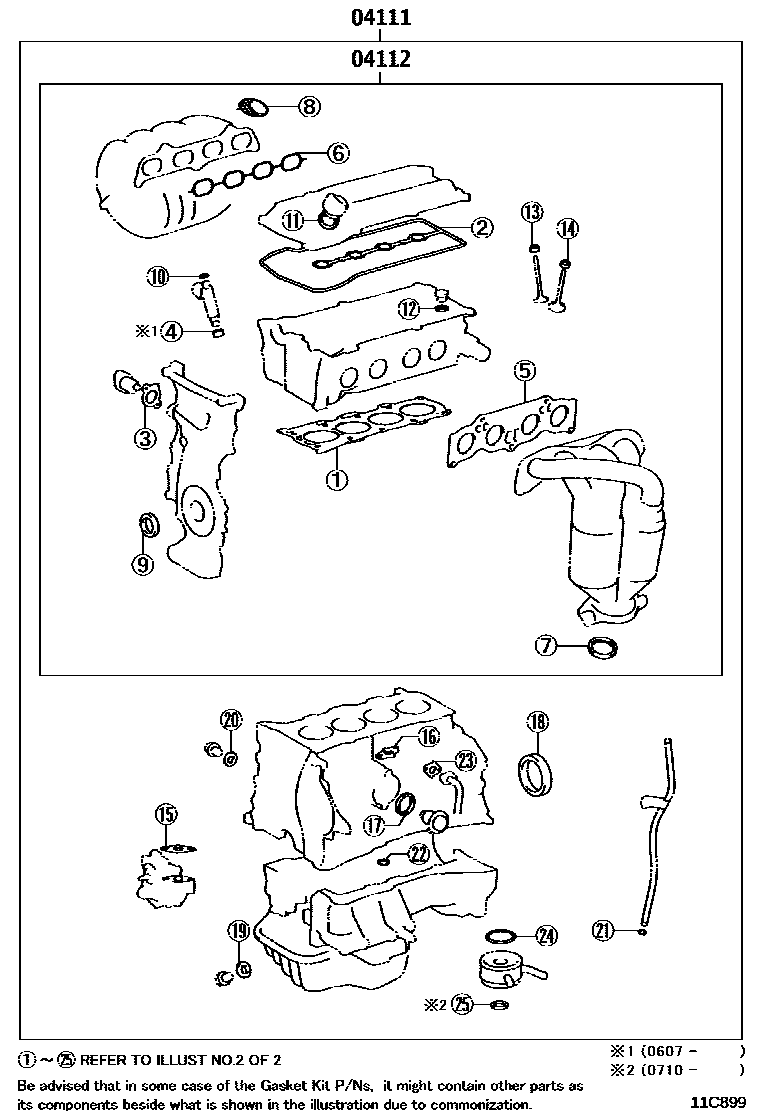

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28820i200601-200607

main04111-28821i200607-200710

main04111-28822i200901-200904

main04111-28823i200904-201109

main04111-31440i200601-200805

main04111-31441i200805-200811

main04111-31442i200811-200903

main04111-31443i201108-201109

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28570i200601-200607

main04112-28571i200607-200710

main04112-28572i200710-200903

main04112-28573i200904-201109

main04112-31270i200601-200805

main04112-31271i200805-200811

main04112-31272i200811-200903

main04112-31273i201108-201109

2 parts on this diagram · 6 diagrams in section
