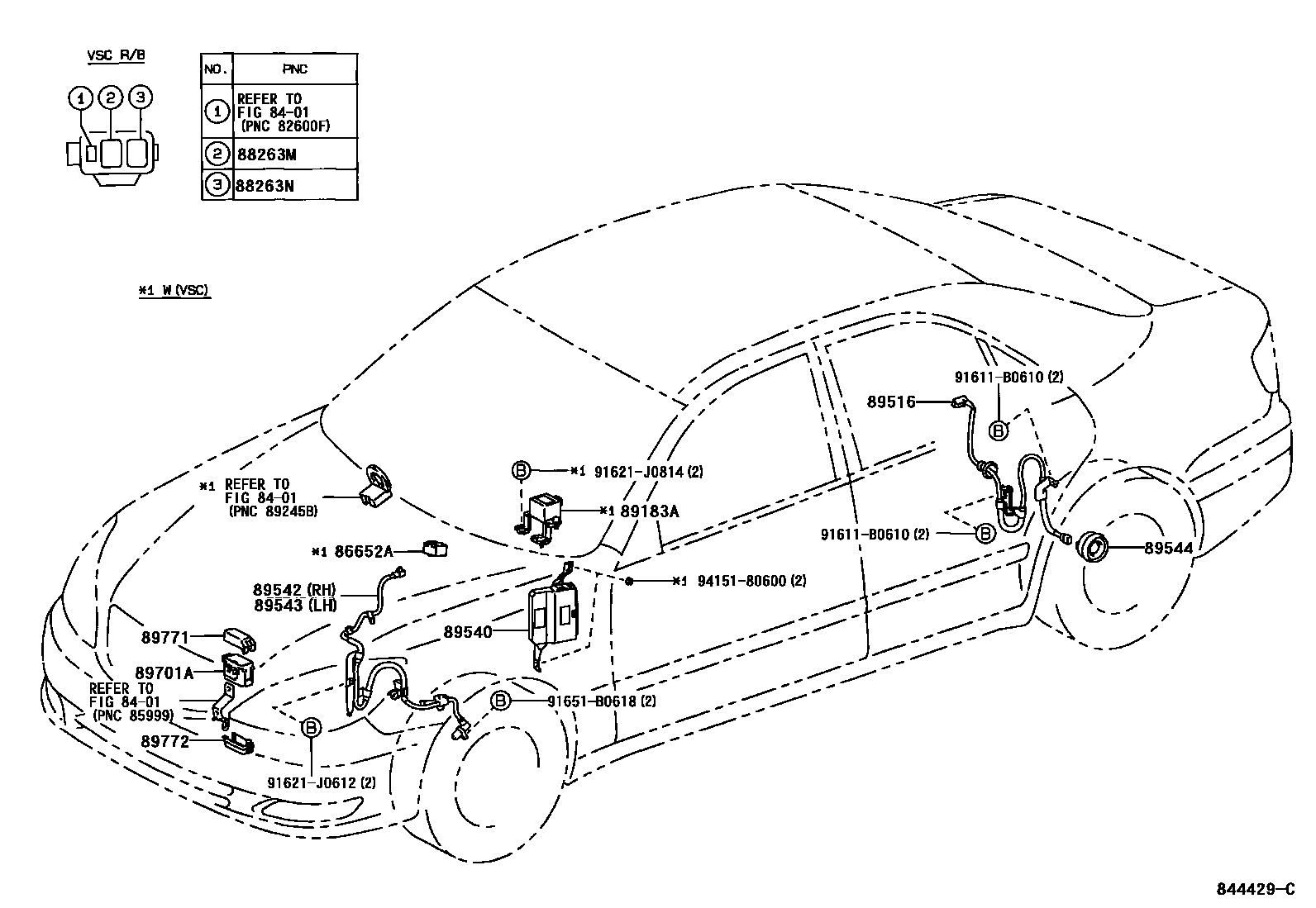

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iMCV30200108-200406

88263MRELAY, ABS SOLENOID

main88263-32070iACV3#,MCV30200108-200406

88263NRELAY, ABS MOTOR

main88263-32070iACV3#,MCV30200108-200406

89183ASENSOR, YAWRATE

main89180-33020iMCV30200108-200406

89516WIRE, SKID CONTROL SENSOR

main89516-33010iACV3#,MCV30200108-200406

RH

main89516-33020iACV3#,MCV30200108-200406

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-33300iMCV30200108-200109

main89540-33301iMCV30..LHD200109-200406

main89540-33321iMCV30..RHD200109-200406

main89540-33340iACV3#..LHD200108-200406

main89540-33360iACV3#..RHD200109-200406

89542SENSOR, SPEED, FRONT RH

main89542-33070iACV3#,MCV30200108-200406

89543SENSOR, SPEED, FRONT LH

main89543-33070iACV3#,MCV30200108-200406

89544SENSOR, SKID CONTROL

main89544-48010iACV3#,MCV30200108-200601

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iACV3#,MCV30200108-200406

89771COVER, ABS RELAY BLOCK, UPPER

main89771-33010iACV3#,MCV30200108-200406

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iACV3#,MCV30200108-200406

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91621J0814

main91621-J0814

91651B0618

main91651-B0618

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
