ASH RECEPTACLE

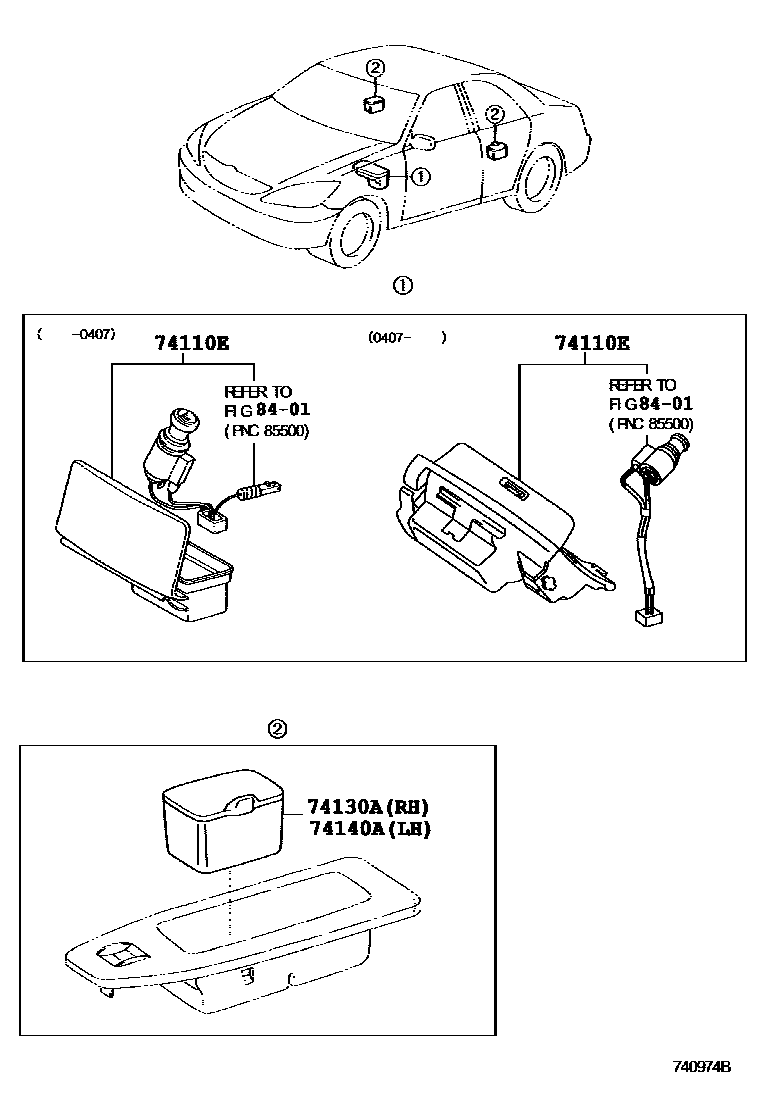

Parts diagram

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33160i200108-200406

main74110-33220i200406

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-33010i200108-200406

74140ARECEPTACLE ASSY, REAR ASH, LH

main74130-33010i200108-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4 parts on this diagram · 1 diagram in section
