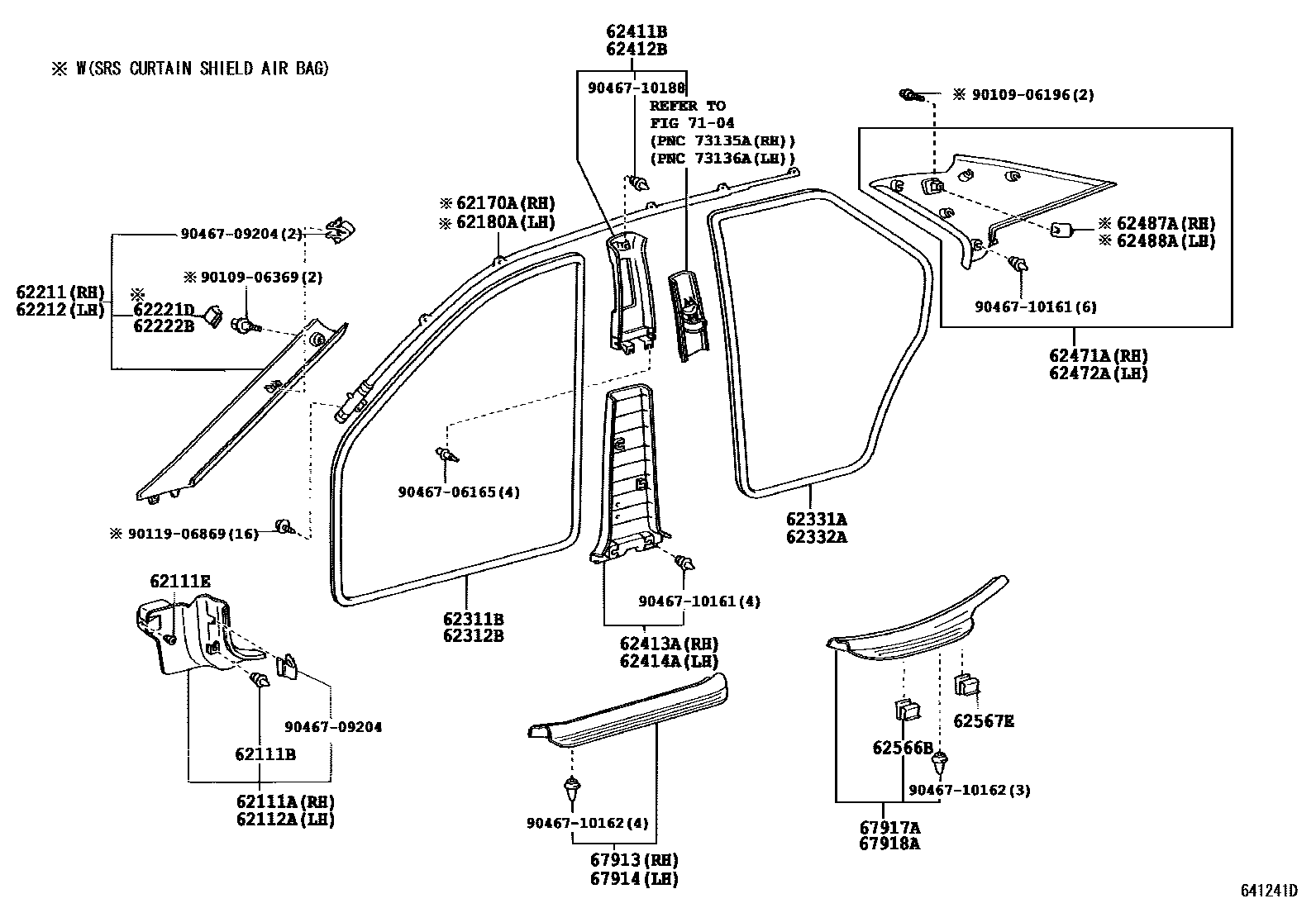

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
62111BCLIP(FOR COWL SIDE TRIM)
62111ERETAINER, COWL SIDE TRIM
62112ATRIM SUB-ASSY, COWL SIDE, LH
62211GARNISH, FRONT PILLAR, RH
W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
sub62210-33111
62212GARNISH, FRONT PILLAR, LH
W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
sub62220-33111
62221DCOVER, FRONT PILLAR GARNISH, RH
IVORY,TRIM4#
LT.GRAY,TRIM9#
LT.GRAY,TRIM1#
62222BCOVER, FRONT PILLAR GARNISH, LH
IVORY,TRIM4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM9#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62471AGARNISH, ROOF SIDE, INNER RH
W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
sub62470-33130
62472AGARNISH, ROOF SIDE, INNER LH
W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
sub62480-33130
62487ACOVER, ROOF SIDE INNER GARNISH, RH
IVORY,TRIM4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM9#
62488ACOVER, ROOF SIDE INNER GARNISH, LH
IVORY,TRIM4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM9#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
7104
9010906196
main90109-06196
9010906369
main90109-06369
9011906869
main90119-06869
9046706165
main90467-06165
9046709204
main90467-09204
9046710161
main90467-10161
9046710162
main90467-10162
9046710188
main90467-10188
37 parts on this diagram · 1 diagram in section
