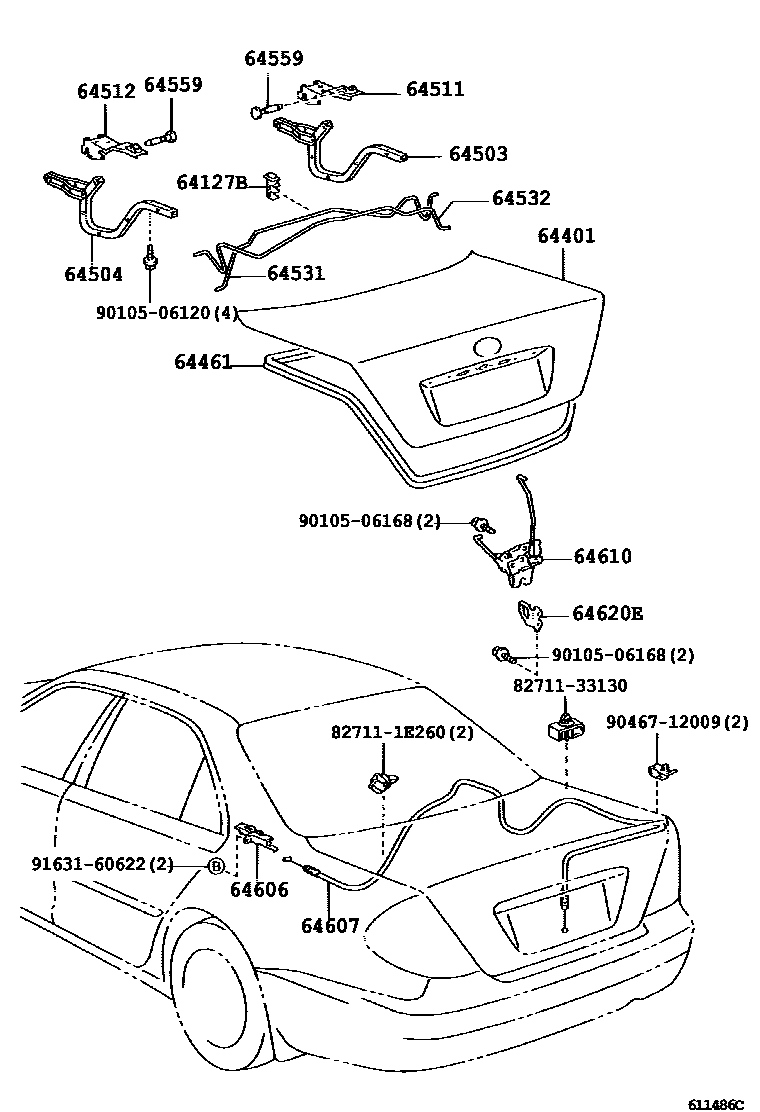

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iACV3#,MCV30200108-200406

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33270iACV3#,MCV30200406

W(REAR SPOILER)

main64401-33280iACV3#,MCV30200108-200406

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33050iACV3#,MCV30200108-200402

main64461-33051iACV3#,MCV30200402-200406

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-33070iACV3#,MCV30200406

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-33070iACV3#,MCV30200406

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-33050iACV3#,MCV30200108-200406

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-33050iACV3#,MCV30200406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33140iACV3#,MCV30200108-200406

main64531-33150iACV3#,MCV30200108-200406

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33140iACV3#,MCV30200108-200406

main64532-33150iACV3#,MCV30200406

W(REAR SPOILER)

64559PIN, LUGGAGE DOOR HINGE

main64559-32020×2iACV3#,MCV30200108-200406

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-53010iACV3#,MCV30..RHD200406

main64606-53020iACV3#,MCV30..LHD200108-200207

main64606-53021iACV3#,MCV30..LHD200207-200406

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33070iACV3#,MCV30..RHD200108-200212

main64607-33110iACV3#,MCV30..RHD200212-200406

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33090iACV3#,MCV30200108-200212

main64600-33091iACV3#,MCV30200212-200406

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-53010iACV3#,MCV30200108-200406

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8271133130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33130

9010506120

main90105-06120

9010506168

main90105-06168

9046712009

main90467-12009

9163160622

main91631-60622

20 parts on this diagram · 2 diagrams in section
