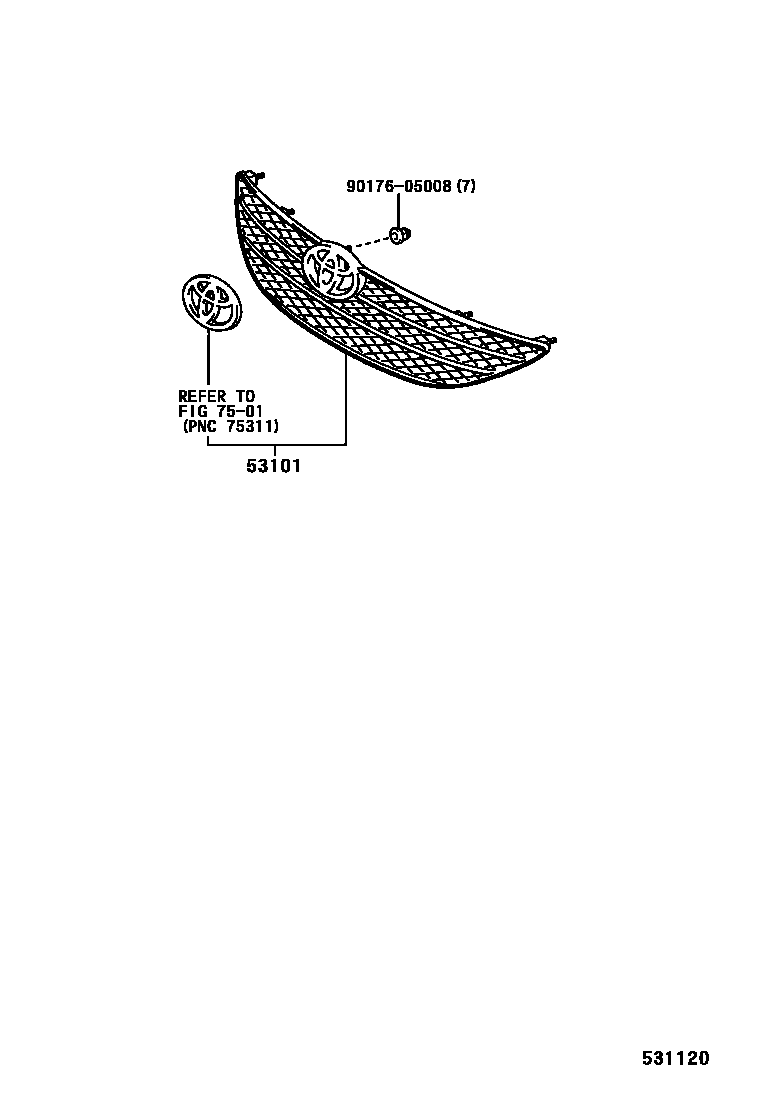

RADIATOR GRILLE

0001 1TYPE A 0002 1(0108-0406)TYPE B

53101GRILLE SUB-ASSY, RADIATOR

main53101-33090iACV30,MCV30200108-200406

PLATED,TYPE A:REFER TO ILLUSTRATION

main53101-33110iACV3#..ATM;MCV30..RHD200108-200406

PLATED,TYPE B:REFER TO ILLUSTRATION

main53101-33150iACV3#,MCV30200406-200601

PLATED

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9017605008

main90176-05008

3 parts on this diagram · 2 diagrams in section
